User's manual · MUX 310
Due to the equipment of 6 receivers with a Power Supply occupy the entire available
space in a FRA 300 frame, the MUX 310 is supplied with all the needed pieces for
extending the frame and allowing placing one space more.
In this manner, we achieve that a frame for 6 modules and Power Supply (total 7 modules)
becomes a frame for 8 modules.
It is important to highlight that the combiner MUX 310 is fed from the same SPS 310
which feeds the rest of the modules. Due to that, the MUX 310 has been designed with
Low Consumption and using as feeding the voltage of the via 23 VDC, used exclusively for
the feeding of the LNC in the rest of the modules, disposing normally of power enough in
the Power Supply.

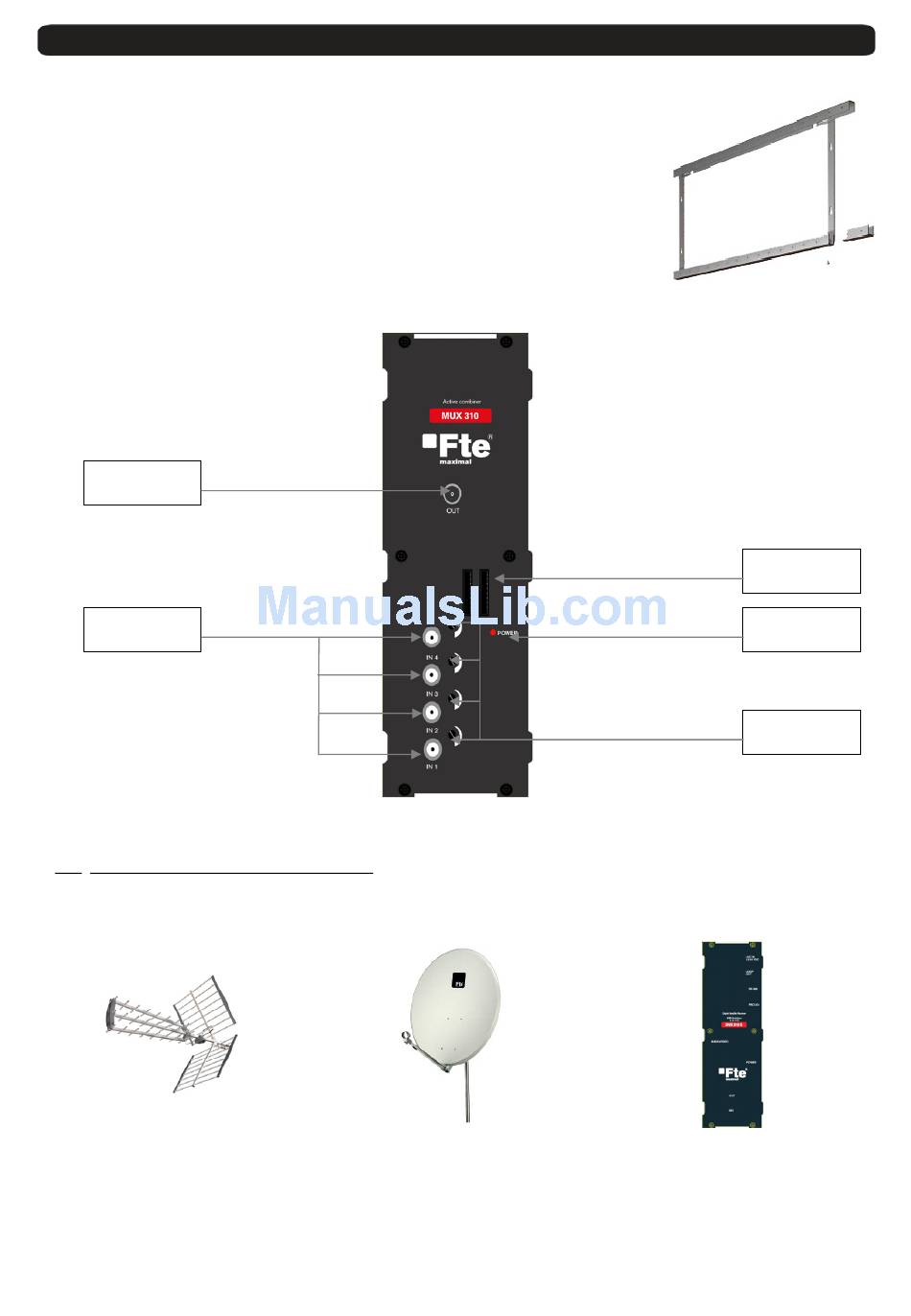

RF Out
Power Input
RF Inputs Power LED
Attenuators
1.4. Accessories and installation examples
Accessories
UHF Outdoor Antenna Offset Dish 80cm Digital satellite receiver
Mod. EVO 45 Code 9003910 Mod. PR 80 AB Code. 0798021 Mod. DVB 310 S Code. 2003310
