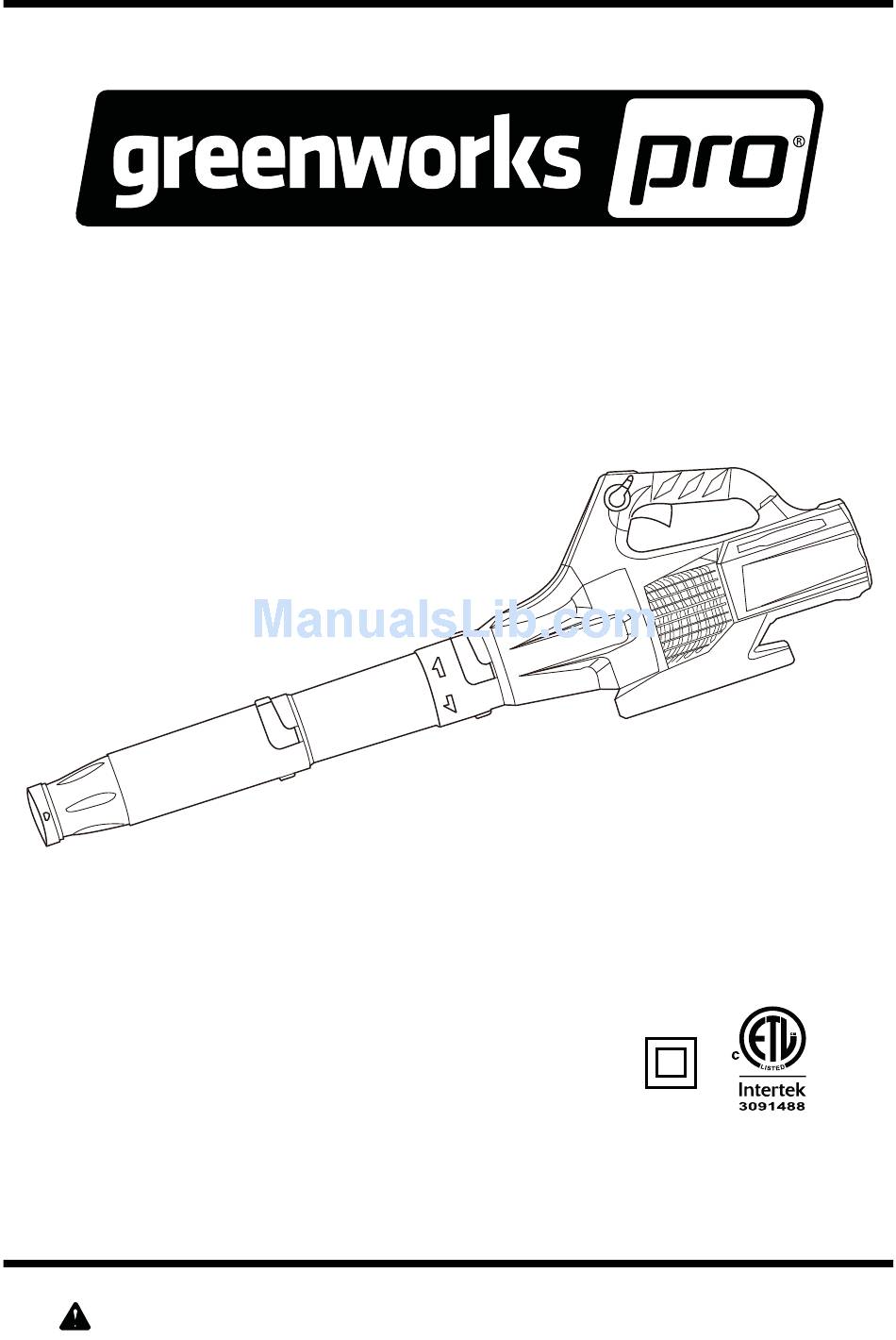

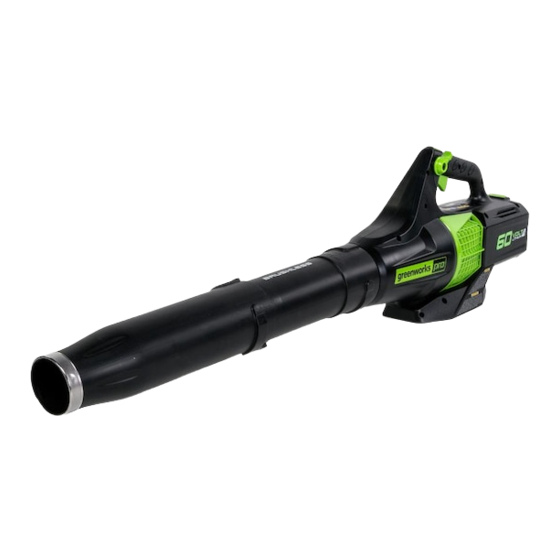

- Page 1 60V BRUSHLESS AXIAL BLOWER 2402302CT/2402302CTBT Model # 2402302CTBT: (Battery and charger sold separately) Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 ......................2 Important safety information ....................3 Symbols ..........................6 Know Your Blower ........................ 8 Assembly Instruction ......................9 Operation ..........................11 Maintenance ........................Environmentally Safe Battery Disposal...................15 Troubleshooting........................16 .. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THIS BLOWER W A R N I N G Read and understand all instructions before using this product. Failure to follow all instructions personal injury. When using an electrical appliance, basic precautions should always be followed, including the following: •... - Page 4 IMPORTANT SAFETY INFORMATION • Maintain tool with care. Keep fan area clean for best and safest performance. Follow instructions for proper maintenance. • Keep all parts of your body away from any moving parts and all hot surfaces of the unit. •...
- Page 5 IMPORTANT SAFETY INFORMATION • Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water, then neutralize with lemon juice or immediate medical attention. Following this rule will reduce the risk of serious personal injury. •...
-
Page 6: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. s t l a t l s t t Alternating Current Type of current... - Page 7 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not DYRLGHG ZLOO UHVXOW LQ GHDWK RU VHULRXV LQMXU\ WARNING Indicates a potentially hazardous situation, which, if not avoided, FRXOG UHVXOW LQ GHDWK RU VHULRXV LQMXU\ CAUTION...
-
Page 8: Know Your Blower
KNOW YOUR BLOWER Battery Release Button Cruise Control Lever Turbo Button Variable Speed Trigger Blower Tube Fig. 1 KNOW YOUR BLOWER ( See Figure 1. The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. -
Page 9: Assembly Instruction
• Do not discard the packing material until you have carefully inspected and satisfactorily operated the product. • If any parts are damaged or missing, please call (1-855-345-3934) for assistance. PACKING LIST PART NAME FIGURE 2402302CTBT 2402302CT Front Blower Tube Rear Blower Tube 60V Axial Blower 60V BRUSHLESS AXIAL BLOWER 2402302CT/2402302CTBT Operator’s Manual... - Page 10 ASSEMBLY INSTRUCTION BLOWER TUBE ASSEMBLY W A R N I N G To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the tool when assembling parts. 1. Align either of the grooves in the tube with the tabs on the blower housing. Push the tube into the blower housing until the tab engages the grooves (See Figure 2).
-
Page 11: Operation
OPERATION W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless W A R N I N G Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. - Page 12 OPERATION BATTERY IMPORTANT! The battery pack is not charged when it is purchased. Before using the blower place the battery pack in the charger until fully charged. safety precautions, and follow the instructions in the Battery Charger section. To Remove (See Figure 4.) with a firm grip.
- Page 13 OPERATION STARTING/STOPPING THE BLOWER (See Figure 5) • Ensure that the battery is installed in the blower. • Release the trigger to stop. USING CRUISE CONTROL LEVER (See Figure 5) the Cruise Control lever. • Once the unit is on, push back the lever clockwise to increase the speed. This will lock the speed at the desired setting.
-
Page 14: Maintenance
MAINTENANCE WARNING before adjusting, inspecting, or cleaning the blower. Cleaning • Remove the battery pack. • Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep the air vents free of obstructions, sawdust, and wood chips. Do not spray, wash, or immerse the air vents in water. -
Page 15: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL W A R N I N G The following toxic and corrosive materials are in the batteries used in this blower battery pack: Lithium-Ion, a toxic material. environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your local waste disposal agency, or the local Environmental Protection Agency for information and lithium-ion disposal. -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Motor fails to start Battery is not secure Ensure that the battery is fully secured in when switch is the blower. Refer to Installing the Battery pressed. section in this manual. Battery is not Charge the battery pack according to the charged. -
Page 17: Limited Warranty
LIMITED WARRANTY GREENWORKS™ hereby warranties this product, to the original purchaser with proof of purchase, for a period of four (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. -
Page 18: Exploded View
EXPLODED VIEW PARTS LIST 3110111952 Motor Assembly 3110121952 Switch Assembly 3110141952 Housing Assembly 341061816 Upper Blower Tube 341071816 Lower Blower Tube 311011383CT Battery ( only for 2402302CT) 311011989 Charger (only for 2402302CT) - Page 19 Greenworks Tools PO Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-855-345-3934 Printed in China on 100% Recycled Paper Rev: 00 (03-11-17)
