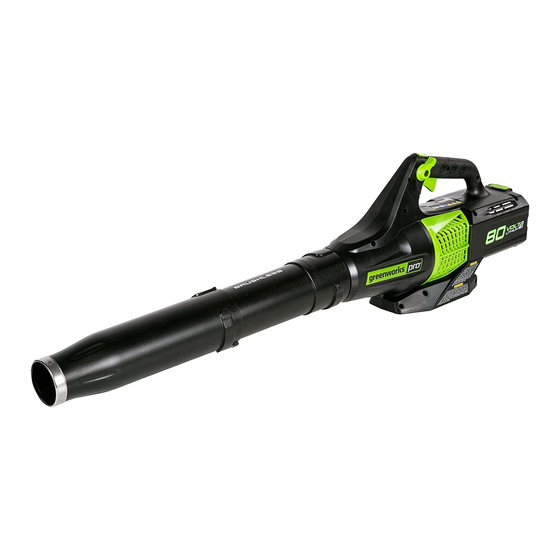

80v brushless axial blower
Hide thumbs Also See for BL80L00:
Table of Contents

Advertisement

Available languages

Available languages

80V BRUSHLESS AXIAL BLOWER
BL80L00
Owner's Manual
TOLL-FREE HELPLINE: 1-855-345-3934
www.greenworkstools.com/80V-PRO
Read all safety rules and instructions carefully before operating this tool.

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BL80L00 and is the answer not in the manual?

Questions and answers

Summary of Contents for GreenWorks Pro BL80L00

  • Page 1 80V BRUSHLESS AXIAL BLOWER BL80L00 Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 www.greenworkstools.com/80V-PRO Read all safety rules and instructions carefully before operating this tool.
  • Page 2: Table Of Contents

    CONTENTS Contents ..........................2 Product Specifications ......................2 General Safety Rules ......................3 Symbols ..........................6 Know Your Blower ........................ 8 Assembly Instruction ......................9 Operation ..........................12 Environmentally Safe Battery Disposal...................14 Troubleshooting........................15 Warranty........................16 Exploded View ........................17 Parts List..........................17 PRODUCT SPECIFICATIONS 80V CORDLESS BRUSHLESS AXIAL BLOWER Type .....................
  • Page 3: General Safety Rules

    GENERAL SAFETY RULES READ ALL INSTRUCTIONS BEFORE USING (THIS POWER TOOL) W A R N I N G Read and understand all instructions before using this product. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. When using an electrical appliance, basic precautions should always be followed, including the following: •...
  • Page 4 GENERAL SAFETY RULES • Maintain tool with care. Keep fan area clean for best and safest performance. Follow instructions for proper maintenance. • Keep all parts of your body away from any moving parts and all hot surfaces of the unit. •...
  • Page 5 GENERAL SAFETY RULES • Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water, then neutralize with lemon juice or vinegar. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention.
  • Page 6: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)
  • Page 7 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
  • Page 8: Know Your Blower

    KNOW YOUR BLOWER Battery Release Button Cruise Control Lever Turbo Button Variable Speed Trigger Blower Tube Fig. 1 KNOW YOUR BLOWER ( See Figure 1. The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting.
  • Page 9: Assembly Instruction

    PART NAME FIGURE Front Blower Tube Rear Blower Tube 80V Axial Blower 80V BRUSHLESS AXIAL BLOWER BL80L00 Operator’s Manual Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 www.greenworkstools.com/80V-PRO Read all safety rules and instructions carefully before operating this tool. W A R N I N G If any parts are damaged or missing, do not operate this product until the parts are replaced.
  • Page 10 ASSEMBLY INSTRUCTION BATTERY IMPORTANT! The battery pack is not charged when it is purchased. Before using the blower for the first time, place the battery pack in the battery charger and charge. Make sure to read all safety precautions, and follow the instructions in the Battery Charger section. To Remove (See Figure 2.) 1.
  • Page 11 ASSEMBLY INSTRUCTION BLOWER TUBE ASSEMBLY W A R N I N G To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the tool when assembling parts. 1. Connect tube (A) to tube (B). Twist clockwise until the tubes lock into position (See Figure 3). Fig.
  • Page 12: Operation

    OPERATION W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N G Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection.
  • Page 13 OPERATION STARTING/STOPPING THE BLOWER (See Figure 6) • Ensure that the battery is installed in the blower. • Squeeze the trigger to start the blower. • Release the trigger to stop. USING CRUISE CONTROL (See Figure 6) This blower is equipped with a cruise control function. Please read and understand the function of the Cruise Control.
  • Page 14: Environmentally Safe Battery Disposal

    ENVIRONMENTALLY SAFE BATTERY DISPOSAL W A R N I N G The following toxic and corrosive materials are in the batteries used in this blower battery pack: Lithium-Ion, a toxic material. All toxic materials must be disposed of in a specified manner to prevent contamination of the environment.
  • Page 15: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Motor fails to start Battery is not secure. Check to ensure the battery is fully when switch is connected to the blower. Press down on depressed. the battery until the latches click together. Battery is not Charge the battery pack according to the charged.
  • Page 16: Warranty

    LIMITED WARRANTY GREENWORKS™ hereby warranties this product, to the original purchaser with proof of purchase, for a period of four (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer.
  • Page 17: Exploded View

    EXPLODED VIEW PARTS LIST Item No. Part No. Description 3110171952 Housing Assembly 3110181952 Cruise Control Assembly 341061816 Upper Blower Tube 341071816 Lower Blower Tube...
  • Page 18 Greenworks Tools PO Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-855-345-3934 Printed in China on 100% Recycled Paper Rev: 00 (09-12-16)
  • Page 19 80V VENTILADOR INALÁMBRICO AXIAL SIN ESC OBILLAS BL80L00 Manual Del Propietario Línea Gratuita Línea De Ayuda:1-855-345-3934 www.greenworkstools.com/80V-PRO Leer todas las normas de seguridad y las instrucciones cuidadosaantes de utilizar esta herramienta.
  • Page 20: Índice

    ÍNDICE Índice ............................2 ....................2 Información de Seguridad .......................3 Símbolos ...........................7 Conozca su Soplador .......................9 Ensamblaje ..........................10 Funcionamiento........................13 Eliminación de Baterías sin Daño para el Ambiente...............16 Resolución de Averías......................17 Garantie Limitée........................18 Diagrama de Componentes ....................19 Lista de Piezas........................
  • Page 21: Información De Seguridad

    INFORMACIÓN DE SEGURIDAD LEA TODAS LAS INSTRUCC IONES ANTES DEL PRIMER USO (DEL APARATO) A D V E R T E N C I A Lea y comprenda todas las instrucciones antes de usar este producto. El ncumplimiento de las instrucciones siguientes puede ser causa de descargas eléctricas, incendios y lesiones personales graves.
  • Page 22 INFORMACIÓN DE SEGURIDAD • Nunca utilice la unidad sin los accesorios correctos. Asegúrese siempre de que el tubo del soplador está instalado. • Utilice solo baterías Greenworks: GBA80250, 2902402, 2902502, 2901302 • Utilice solo cargador Greenworks: 2901402 • o medicamentos. •...
  • Page 23 INFORMACIÓN DE SEGURIDAD • No aplaste, golpee o dañe la batería. No utilice una batería o un cargador que se haya caído o haya recibido un golpe fuerte. Una batería dañada podría explotar. Deseche correctamente y de forma inmediata una batería que haya caído o que esté dañada. •...
  • Page 24 INFORMACIÓN DE SEGURIDAD A D V E R T E N C I A (PROPOSICIÓN 65) El polvo creado por la arena a chorro, el aserrado, esmerilado, taladrado y otras actividades de la construcción podría contener productos químicos que se sabe provocan cáncer, defectos de nacimiento y otras lesiones reproductivas.
  • Page 25: Símbolos

    SÍMBOLOS Este producto podría contener algunos de los siguientes símbolos. Sírvase estudiarlos y aprender su significado. La comprensión apropiada de esos símbolos le permitirá operar mejor el producto y de unaforma más segura. SÍMBOLO NOMBR E DESIGNACIÓN/EXPLICACIÓN Voltios Voltaje Amperios Corriente Hertz Frecuencia (ciclos por segundo)
  • Page 26 SÍMBOLOS Los siguientes rótulos y significados se usan para explicar el nivel de riesgo relacionado con este producto. SÍMBOLO AVISO SIGNIFICADO Indica situaciones inminentemente peligrosas que, si no se DANGER evitan, resultan en la muerte o en lesiones serias. Indica situaciones potencialmente peligrosas que, si no se ADVERTENCIA evitan, podrían resultar en la muerte o en lesiones serias.
  • Page 27: Conozca Su Soplador

    CONOZCA SU SOPLADOR Botón de Liberación de la Batería Botón Turbo Control de Velocidad Velocidad Variable de Disparo Tubo de soplado Fig. 1 CONOZCA SU SOPLADOR Para usar con seguridad este producto es necesario comprender la información que se presenta en el producto y en el presente manual del operador, así...
  • Page 28: Ensamblaje

    FIGURA Tubo frontal del ventilador Tubo trasero del ventilador 80 V Conjunto del ventilador 80V BRUSHLESS AXIAL BLOWER BL80L00 Manual de instrucciones Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 www.greenworkstools.com/80V-PRO Read all safety rules and instructions carefully before operating this tool. A D V E R T E N C I A Si faltan piezas o estas están dañadas, no opere este producto hasta reemplazar dichas piezas.
  • Page 29 ENSAMBLAJE BATERÍA IMPORTANTE! El paquete de baterías no está cargado al momento de la compra. Antes de usar el soplador por primera vez, coloque el paquete de baterías en el cargador de baterías y cárguelo completamente. Asegúrese de leer todas las precauciones de seguridad y de seguir las instrucciones en la sección titulada Procedimiento para cargar.
  • Page 30 ENSAMBLAJE MONTAJE DEL TUBO DEL SOPLADOR A D V E R T E N C I A Para evitar un arranque accidental que podría causar lesiones corporales serias, retire siempre la batería de la herramienta al ensamblar las piezas. 1. Conecte el tubo (A) al tubo (B). Gire en el sentido de las agujas del reloj hasta que los tubos encajen en su posición.
  • Page 31: Funcionamiento

    FUNCIONAMIENTO A D V E R T E N C I A Preste especial atención aunque esté familiarizado con el producto. Recuerde que un despiste de una sola fracción de segundo es suficiente para causar daños graves. A D V E R T E N C I A Use siempre gafas de protección con protección lateral que cumplan la normas ANSI Z87.1, junto con protección auditiva.
  • Page 32 FUNCIONAMIENTO ARRANCAR/DETENER EL SOPLADOR • Asegúrese de que la batería está instalada en el soplador. • Accione el interruptor de encendido. • Para variar la velocidad gire gradualmente el gatillo. INTERRUPTOR DE CONTROL DE VELOCIDAD Este soplador dispone de un dispositivo de control de velocidad Por favor lea las instrucciones de la función de control de velocidad •...
  • Page 33 FUNCIONAMIENTO FUNCIONAMIENTO DEL SOPLADOR • Para evitar la dispersión de los escombros, dirija el soplador hacia los bordes exteriores de un montón de escombros. Nunca dirija el soplador directamente al centro de un montón de escombros. • Para reducir los niveles de ruido, limite el número de piezas del equipo que se utilicen al mismo tiempo.
  • Page 34: Eliminación De Baterías Sin Daño Para El Ambiente

    ELIMINACI ÓN DE BATERÍAS SIN DA ÑO PARA EL AMBIENTE A D V E R T E N C I A Las baterías utilizadas en este cortasetos contienen los siguientes materiales tóxicos y corrosivos: Litio-ión, un material tóxico. el medio ambiente. Antes de desechar una batería de litio-ión estropeada o gastada, póngase en contacto con el organismo encargado del tratamiento de residuos más próximo o con su agencia baterías en un centro o dispositivo adecuado, autorizado para el tratamiento del Litio-ión.
  • Page 35: Resolución De Averías

    RESOLUCIÓN DE AVERÍAS PROBLEMA CAUSAS POSIBLES SOLUCIONES El motor no arranca La batería no está Para asegurar la batería, asegúrese cuando está bien colocada. de que los pestillos superiores del pack pulsado el de la batería encajan en su lugar. gatillointerruptor.
  • Page 36: Garantie Limitée

    GARANTIE LIMITÉE Por este medio y por un período de cuatro años GREENWORKS™ garantiza este producto contra defectos en materiales, piezas o mano de obra al comprador original que cuente con una prueba de compra. GREENWORKS™, a su sola discreción reparará o reemplazará, sin costo alguno para el cliente, cualquier pieza defectuosa, siempre y cuando se haya hecho uso normal de ella.
  • Page 37: Diagrama De Componentes

    DIAGRAMA DE COMPONENTES LISTA DE PIEZAS CANTIDAD ARTICULO NO. PIEZA NO. DESCRIPTIÓN 3110171952 Conjunto de la Carcasa 3110181952 Interruptor de Control de Velocidad 341061816 Tubo Superior del Soplador 341071816 Tubo Inferior del Soplador...
  • Page 38 Greenworks Tools PO Box 1238 Mooresville, NC 28115 Línea Gratuita Línea De Ayuda: 1-855-345-3934 Impreso en China en el 100% de papel reciclado Rev: 00 (12-09-16)
