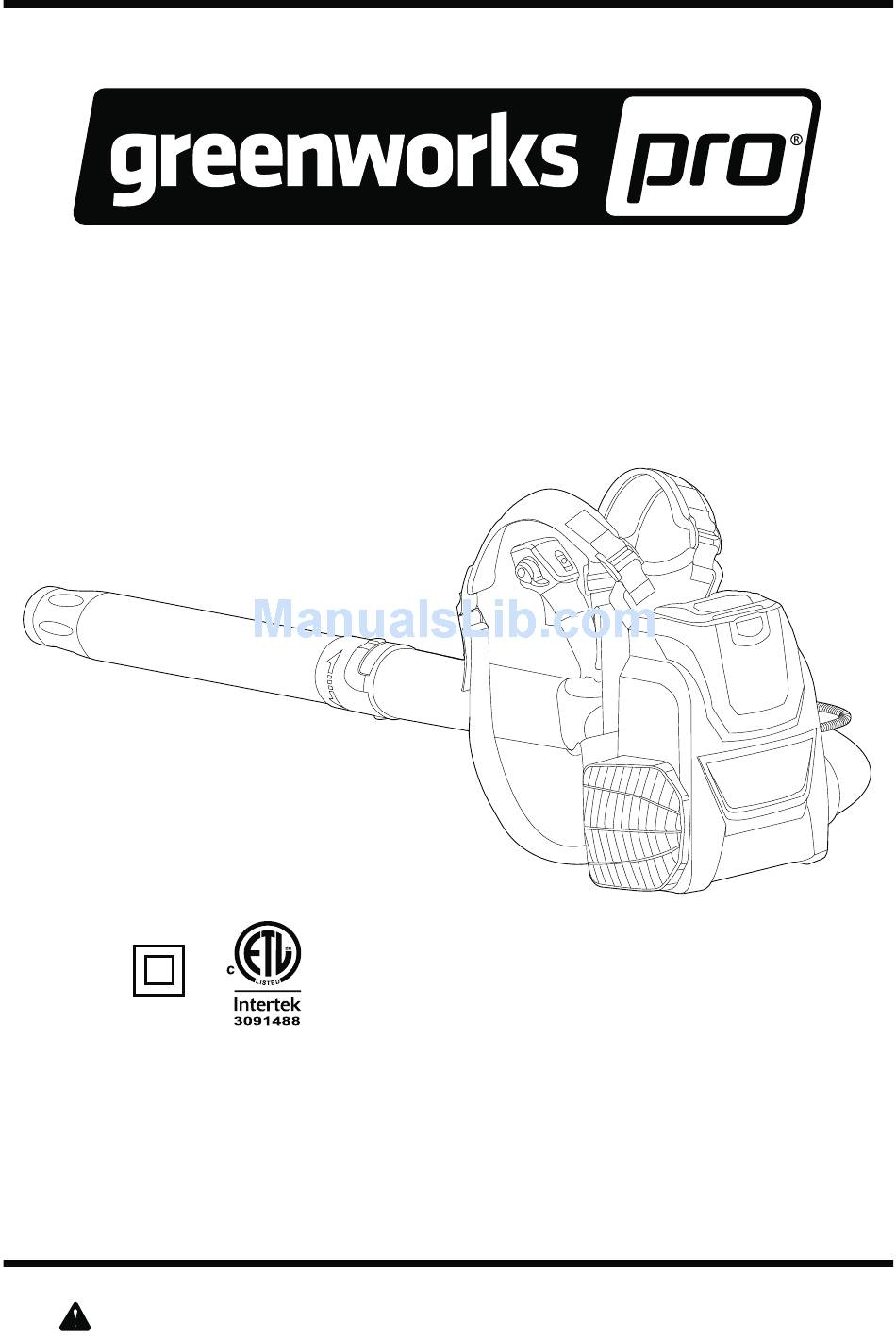

- Page 1 80V BACKPACK BLOWER 2403802CTBT/2403802CT Model # 2403802CTBT: (Battery and charger sold separately) Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 www.greenworkstools.com/80v-pro Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 ......................2 Important Safety Instructions ....................3 Symbols ............................6 Know Your Blower ........................8 Assembly ..........................9 Operation ..........................15 Environmentally Safe Battery Disposal..................18 Troubleshooting........................19 . . y .... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS BLOWER W A R N I N G Read and understand all instructions before using this product. Failure to follow all instructions personal injury. When using an electrical appliance, basic precautions should always be followed, including the following: •... - Page 4 IMPORTANT SAFETY INSTRUCTIONS • Maintain tool with care. Keep fan area clean for best and safest performance. Follow instructions for proper maintenance. • Keep all parts of your body away from any moving parts and all hot surfaces of the unit. •...
- Page 5 IMPORTANT SAFETY INSTRUCTIONS • Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water, then neutralize with lemon juice or immediate medical attention. Following this rule will reduce the risk of serious personal injury. •...
-
Page 6: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. s t l a t l s t t Alternating Current Type of current... - Page 7 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not DYRLGHG ZLOO UHVXOW LQ GHDWK RU VHULRXV LQMXU\ WARNING Indicates a potentially hazardous situation, which, if not avoided, FRXOG UHVXOW LQ GHDWK RU VHULRXV LQMXU\ CAUTION...
-
Page 8: Know Your Blower
KNOW YOUR BLOWER Fig. 1 KNOW YOUR BLOWER ( See Figure 1. 7KH VDIH XVH RI WKLV SURGXFW UHTXLUHV DQ XQGHUVWDQGLQJ RI WKH LQIRUPDWLRQ RQ WKH SURGXFW DQG LQ WKLV RSHUDWRU¶V PDQXDO DV ZHOO DV D NQRZOHGJH RI WKH SURMHFW \RX DUH DWWHPSWLQJ %HIRUH XVH RI this product, familiarize yourself with all operating features and safety rules. -
Page 9: Assembly
Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury. PACKING LIST Part Name Figure 2403802CTBT 2403802CT 80V Backpack Blower Assembly Blower Tube 80V BACKPACK BLOWER 2403802CTBT/2403802CT Operator’s Manual... - Page 10 ASSEMBLY W A R N I N G use for the operator. W A R N I N G If any parts are damaged or missing do not operate this product until the parts are replaced. W A R N I N G Do not attempt to modify this product or create accessories not recommended for use with this W A R N I N G Do not connect to power supply until assembly is complete.
- Page 11 ASSEMBLY ASSEMBLING THE TRIGGER HANDLE (See Fig.2-Fig.3) The flexible tube (A) is connected to the fan outlet tube (B) from the manufacturer. Slide trigger handle (C) on the upper blower tube (D). Move trigger handle to desired location before fully tightening. Use supplied screw (E) to tighten trigger handle to the blower tube.
- Page 12 ASSEMBLY BATTERY IMPORTANT! The battery pack is not charged when it is purchased. Before using the blower place the battery pack in the charger until fully charged. safety precautions, and follow the instructions in the Battery Charger section. To Remove (See Fig 6.) backpack.
- Page 13 ASSEMBLY HARNESS ADJUSTMENT A well adjusted backpack blower and harness makes work easier. Adjust the harness to give you the best working stance. Adjust the side straps so the weight is equally distributed across your shoulders. Once the blower is properly fitted on your back, pull the ends of the straps downward to tighten the harness.
- Page 14 ASSEMBLY Put on the shoulder strap. $GMXVW WKH KDUQHVV VWUDSV WR WKH FRUUHFW OHQJWK $GMXVW FKHVW VWUDS WR FRUUHFW OHQJWK DQG IDVWHQ LW WRJHWKHU 7KH EDFN SDGGLQJ PXVW ¿W ¿UPO\ DQG VHFXUHO\ DJDLQVW \RXU EDFN Harness Removal ‡...
-
Page 15: Operation
OPERATION W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless W A R N I N G Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. - Page 16 OPERATION STARTING/STOPPING THE BLOWER (See Fig 8.) Before start-up, make sure that the blower is in perfect condition to guarantee safe operation. • Squeeze the switch trigger to start. • To change speed, press or release trigger by degrees to increase or decrease the speed. USING CRUISE CONTROL LEVER (See Fig 8.) This blower is equipped with a cruise control function.
-
Page 17: Operating The Blower
OPERATION OPERATING TIPS • Ensure that the unit is not directed at anybody or any loose debris before starting the unit. • Verify that the unit is in good working condition. Make sure the tubes and guards are in place and secure. -
Page 18: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this blower battery pack: Lithium-Ion, a toxic material. W A R N I N G environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your local waste disposal agency, or the local Environmental Protection Agency for information and lithium-ion disposal. -
Page 19: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Battery is not secure. Check to ensure the latches are tightly secured into place on the back of the blower and the battery. (Reference Page 12 of the instruction manual). Battery is not charged. Charge the battery pack according to the Unit will not start. -
Page 20: Limited Warranty
LIMITED WARRANTY GREENWORKS™ hereby warranties this product, to the original purchaser with proof of purchase, 4 year consumer warranty, 1 year commercial warranty against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. -
Page 21: Exploded View
EXPLODED VIEW PARTS LIST IETM NO. PART NO. DESCRIPTION 341101949A 34103811A Lower Blower Tube 341091949A 341181949 Hose Clamps 311511009 Battery (Only for 2403802CT) 311011010 Charger (Only for 2403802CT) - Page 22 Greenworks Tools PO Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-855-345-3934 Rev: 00 (06-15-16) Printed in China on 100% Recycled Paper...
