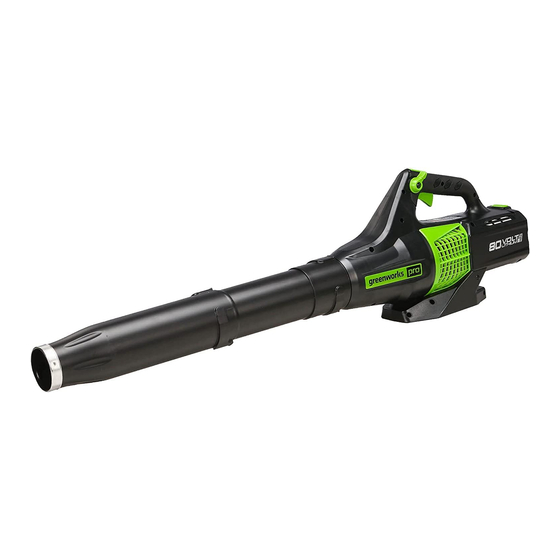

60V BRUSHLESS AXIAL BLOWER
2402302 ( 2408602)
Model # 2402302:
Battery (Sold Separately)
(60V, 2Ah Model # LB60A00)
Charger (Sold Separately)
(60V Model #: CH60A00)
Owner's Manual
TOLL-FREE HELPLINE: 1-855-345-3934
www.GREENWORKSTools.com
Read all safety rules and instructions carefully before operating this tool.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GreenWorks Pro 2402302
Summary of Contents for GreenWorks Pro 2402302

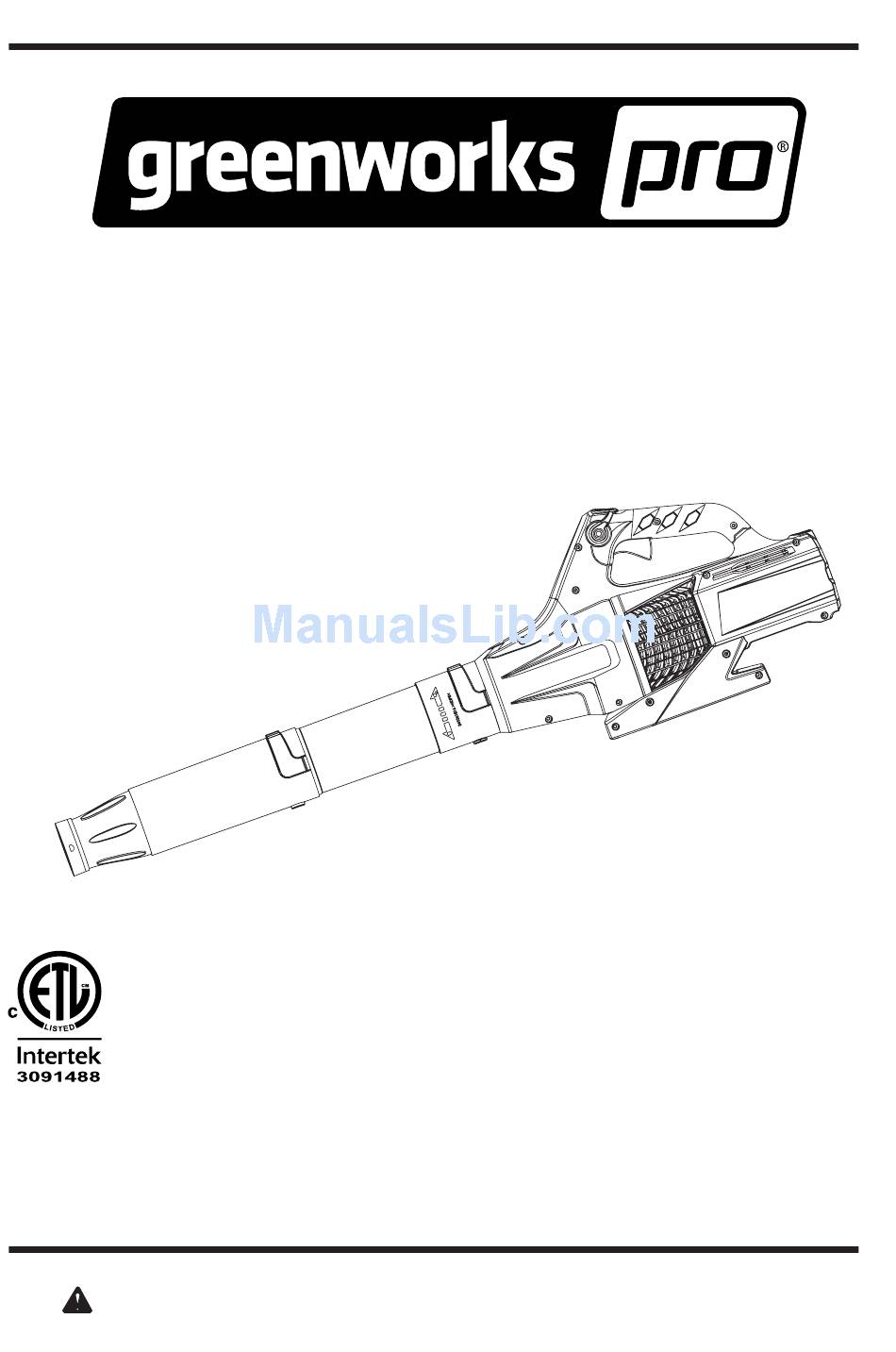

- Page 1 60V BRUSHLESS AXIAL BLOWER 2402302 ( 2408602) Model # 2402302: Battery (Sold Separately) (60V, 2Ah Model # LB60A00) Charger (Sold Separately) (60V Model #: CH60A00) Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 www.GREENWORKSTools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Product Specifications ......................2 General Safety Rules ......................3 Symbols ..........................6 Know Your Blower ........................8 Assembly Instruction ......................9 Operation ..........................11 Maintenance ......................... 14 Troubleshooting ........................15 Warranty ..........................16 Exploded View .........................17 Parts List..........................17 PRODUCT SPECIFICATIONS 60V CORDLESS BRUSHLESS AXIAL BLOWER Type ..........................Cordless Motor .........................60V Brushless Air Volume ......................... -
Page 3: General Safety Rules
GENERAL SAFETY RULES READ ALL INSTRUCTIONS BEFORE USING (THIS POWER TOOL) W A R N I N G Read and understand all instructions before using this product. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. When using an electrical appliance, basic precautions should always be followed, including the following: BEFORE USING •... - Page 4 GENERAL SAFETY RULES • Do not use the tool if the switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous, and must be repaired. • Keep all bystanders, children, and pets at least 50 ft. (15 m) away. •...
- Page 5 GENERAL SAFETY RULES CHILD SAFETY Tragic accidents can occur if the operator is not aware of the presence of children. • Keep children out of the working area and under the watchful care of a responsible adult. • Do not allow children under the age of 14 to operate this blower. Children who are 14 years of age and older must read and understand the operating instructions and safety rules in this manual and must be trained and supervised by a parent.
-
Page 6: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) -
Page 7: Save These Instructions
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, if not WARNING avoided, could result in death or serious injury. -
Page 8: Know Your Blower
KNOW YOUR BLOWER Variable speed control Battery release Turbo button button Cruise control lever Blower tube Fig 1. KNOW YOUR BLOWER ( See Fig 1. The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. -
Page 9: Assembly Instruction
• Do not discard the packing material until you have carefully inspected and satisfactorily operated the product. • If any parts are damaged or missing, please call (1-855-345-3934) for assistance. PACKING LIST PART NAME FIGURE 2402302 2408602 60V Axial Blower Rear Blower Tube Front Blower Tube Operator’s Manual ... - Page 10 ASSEMBLY INSTRUCTION W A R N I N G To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the tool when assembling parts. BLOWER TUBE ASSEMBLY (See Fig 2-3.) • Align either of the grooves in the tube with the tabs on the blower housing. Push the tube into the blower housing until the tab engages the grooves.
-
Page 11: Operation
OPERATION INSTRUCTION W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N G Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. - Page 12 OPERATION INSTRUCTION BATTERY (See Fig 4.) To Remove 1. Press and hold the battery release button with a firm grip. 2. Grasp the trigger handle firmly. Pull the battery pack out of the handle. To Install 1. Insert the battery into the battery opening until the battery release button locks into place. 2.
- Page 13 OPERATION INSTRUCTION STARTING/STOPPING THE BLOWER (See Fig 5.) • Ensure that the battery is installed in the blower. • Squeeze the trigger to start the blower. • To change speed, Press or release the trigger to increase or decrease the speed. USING CRUISE CONTROL (See Fig 5.) •...
-
Page 14: Maintenance
MAINTENANCE W A R N I N G In order to avoid personal injury and the risk of fire and electric shock, remove the battery pack before adjusting, inspecting, or cleaning the blower. CLEANING • Remove the battery pack. • Brush or blow dust and debris out of the air vents using compressed air or a vacuum. -
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Unit will not start. Battery is not secure. Check to ensure the battery is fully connected to the blower. Press down on the battery until the latches click together. Battery is not Charge the battery pack according to the charged. -
Page 16: Warranty
LIMITED WARRANTY Greenworks™ hereby warranties this product, to the original purchaser with proof of purchase, for a period of four (4) years against defects in materials, parts or workmanship. Greenworks™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. -
Page 17: Exploded View
3110111952 Switch assembly 3110121952 Blower housing 3110141952 Rear tube 341061816 Front tube 341071816 Battery (Sold separately for 2402302) 311011383C T Charger (Sold separately for 2402302) 311011989 Greenworks Tools PO Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-855-345-3934 Rev: 00 (09-13-17)
