SOUNDMASTER MCD-9500 Operation Manual

Cd audio system with pll radio, usb decoder and sd card reader
Hide thumbs

Advertisement

Quick Links

MCD-9500

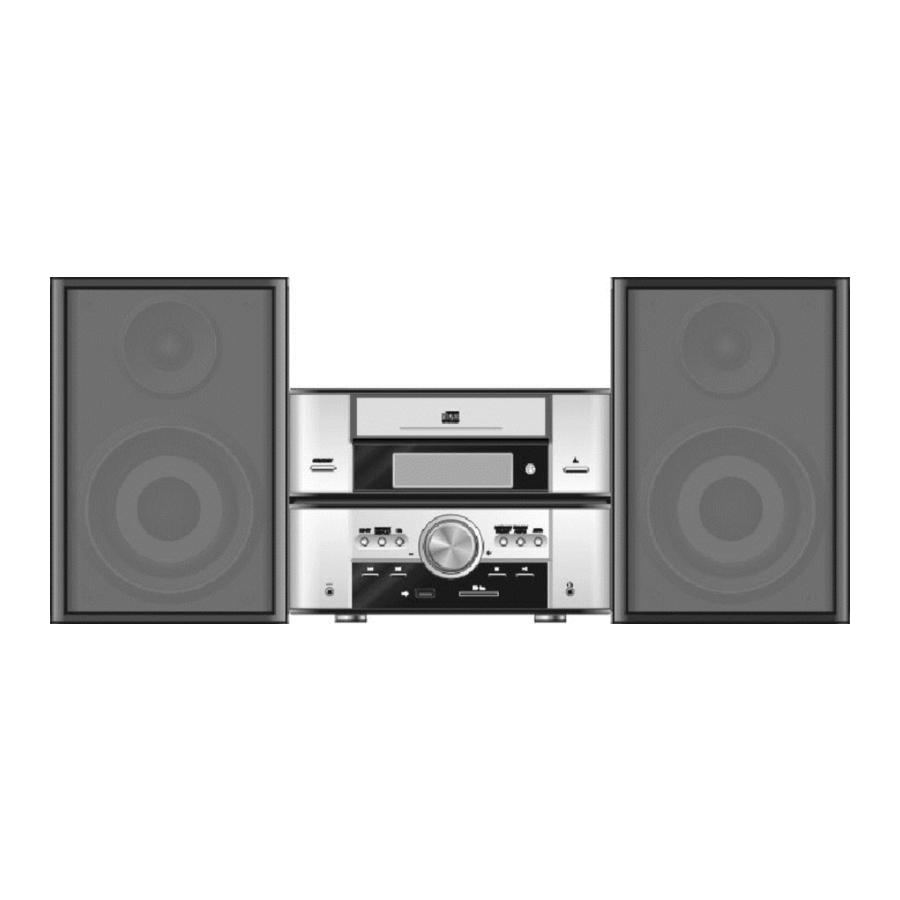

CD Audio System with PLL Radio, USB Decoder and SD Card Reader
OPERATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the MCD-9500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOUNDMASTER MCD-9500

Summary of Contents for SOUNDMASTER MCD-9500

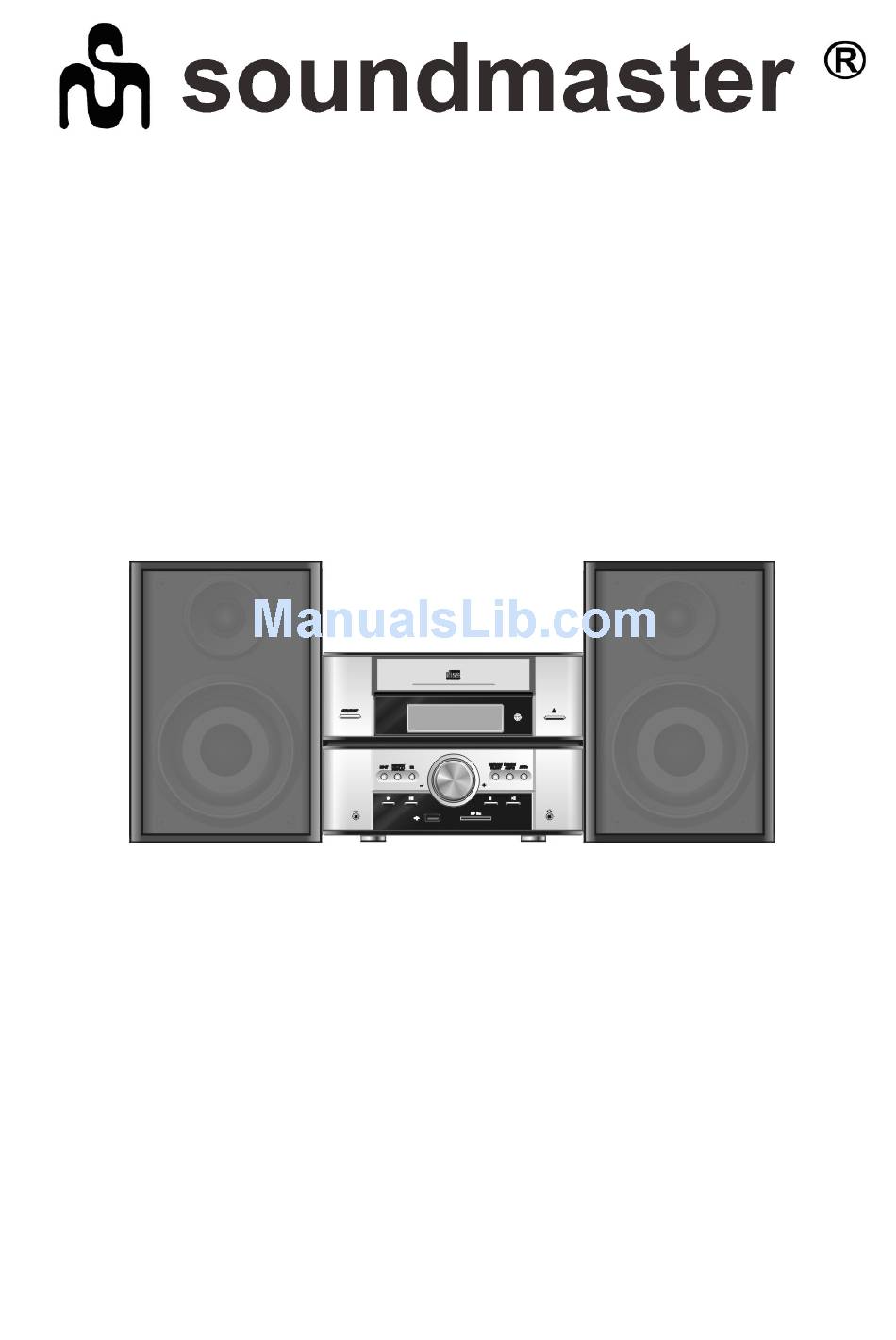

  • Page 1 MCD-9500 CD Audio System with PLL Radio, USB Decoder and SD Card Reader OPERATION MANUAL...

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY PRECAUTIONS ................. 2. BRIEF OVERVIEW OF CONTROL KEYS ............2 3. BASIC OPERATION ..................... 4. CARE AND MAINTENANCE ................11 5. TECHNICAL SPECIFICATIONS ................11...

  • Page 3: Safety Precautions

    I. SAFETY PRECAUTIONS 1. INSTRUCTIONS BEFORE USE: 1) Power source: It is applicable to AC source of 220V -240V and 50Hz/60Hz. 2) Temperature: The ideal surrounding temperature is over 5 . Difficult operation may occur under 0 . Keep away from heat source. 3) Protection: Protect the cable plug, cable cord and socket against stepping, extruding and dragging.

  • Page 4: Brief Overview Of Control Keys

    2. PREPARATION BEFORE PLAY. 2.1 Accessory: (check if the following accessories are complete after unwrapping the box). SPEAKER WIRE REMOTE CONTROL FM AERIAL MANUAL 1 X AM AERIAL 2.2 Install the battery of the remote controller. Press down on the compartment cover, and slide to remove the cover.
  • Page 5 Rear view 1. AM and FM aerial terminal 2. Speaker Connectors 3. FUSE (T 2A 20MM) 4. Power ON/OFF Switch 5. Main Lead 2. SYSTEM CONNECTION DIAGRAM...

  • Page 6: Basic Operation

    3. REMOTE CONTROL 1. STANDBY BUTTON 12. RANDOM BUTTON 2. SLEEP BUTTON 13. INTRO BUTTON 3. CLOCK BUTTON 14. FOLDER -/+ BUTTON 4. OPEN/CLOSE BUTTON 15. TUNING -/+ BUTTON 5. TIMER BUTTON 16. CD/USB/SD BUTTON 6. STOP BUTTON 17. PROG/MEM BUTTON 7.
  • Page 7 6. SETTING THE CLOCK The system has the sleep function and the timer function. The internal clock operates in 12-hour mode and 24-hour. The 12-hour display show the time in AM or PM. The clock may be set when the system is playing or when in standby mode and will lost when the power cut off. To set the clock 1.
  • Page 8 7. USING THE AM/FM RADIO Press "INPUT" Button to select AM/FM. AM Frequency 522 to 1620KHz, FM Frequency 87.5 to 108 MHz. The "AUTO" tune function provided will automatically scan for stations and stop a station with a strong signal level. The audio functions allow listening in stereo and mono;...
  • Page 9 USING THE CD/MP3、 、 、 、 USB、 、 、 、 SD、 、 、 、 PLAYER WARNING! THIS PRODUCT USES A CLASS 1 LASER. AVOID ANY DIRECT EXPOSURE TO THE LASER BEAM. USE OF CONTROLS, ADJUSTMENTS OR PROCEDURES NOT LISTED IN THIS GUIDE MAY RESULT IN HAZARDOUS EXPOSURE. Handling Compact Discs To remove a CD from its storage case, press down on the centre of the case and lift the disc out.
  • Page 10 Programmed track selection You can set your CD Player to play a preset selection of tracks. 1. Press the so the CD is not playing then press the PROG button. The LCD display will show 00 P00. The first two digits 00 are where the selected track number is entered, P00 is the program counter which will increment after a track is entered.
  • Page 11 To set random play during play mode: In this mode the CD player will play tracks in a random order. 1. Press the RANDOM button until the LCD display shows ‘Random On’. The track playing will continue to play, then tracks are played in random order until you press the button. 2.
  • Page 12 Skip forwards or backwards through tracks(MP3) Please follow as previously described . Programmed track selection (MP3) Please follow as previously described. Repeat disc play (MP3) With the exception of repeat an MP3 folder, please follow as previously described . Repeat an MP3 folder You can set your MP3 player to repeat a folder, this will repeatedly play all the tracks within the folder.

  • Page 13: Care And Maintenance

    IV. CARE AND MAINTENANCE Cleaning CDs Use a soft cloth to remove fingerprints and dust from the disc surface. Wipe in a straight line from the centre to the outside of the disc. Never use chemicals such as record sprays, anti-static sprays, benzine or thinners to clean your CDs.
