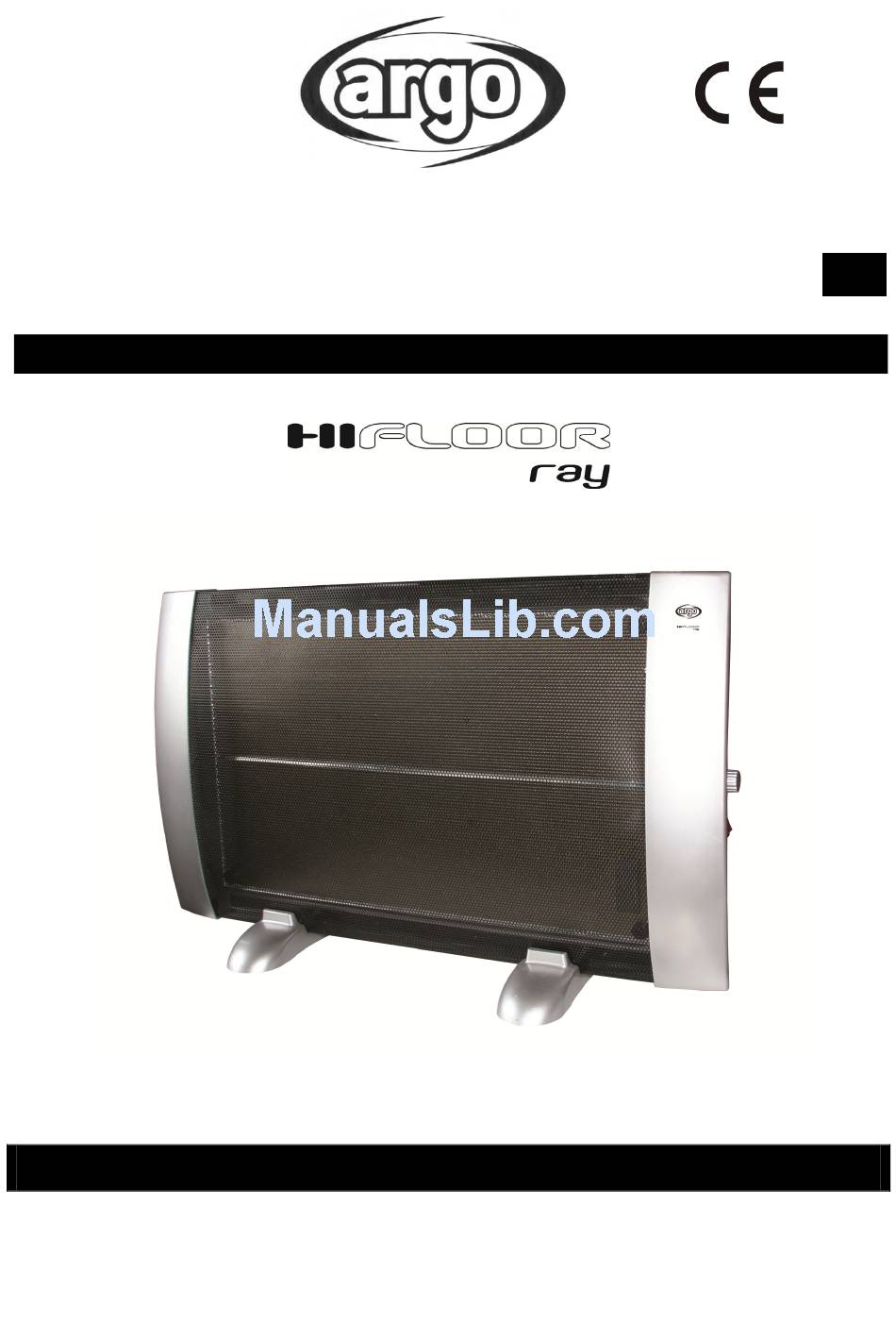

MICATHERMIC PANEL HEATER
OPERATING INSTRUCTIONS
Read
the
instructions
carefully
before
operating
the
panel
or
carrying
out
maintenance
operations.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damages.
Store these instructions.
V 09/16
10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argo HI FLOOR RAY
Summary of Contents for Argo HI FLOOR RAY
- Page 1 MICATHERMIC PANEL HEATER OPERATING INSTRUCTIONS Read instructions carefully before operating panel carrying maintenance operations. Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damages. Store these instructions. V 09/16...
-
Page 2: General Safety Information
GENERAL SAFETY INFORMATION Use this panel heater only as outlined in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons. Ensure that the mains voltage complies with that indicated on the panel heater data plate (220-240V/50Hz). - Page 3 FIRE IF THE FAN HEATER IS COVERED OR INCORRECTLY POSITIONED. Disconnect the mains power when the appliance is not used or for cleaning operations. To disconnect the panel heater, push the switches to OFF and remove the plug from the socket. Pull on the plug only. Do not pull the cord.
- Page 4 The panel heater may cause risk of fire if, while in operation, is covered by or comes into contact with flammable material including curtains, drapery, blankets, etc. KEEP THE PANEL HEATER AWAY FROM THESE MATERIALS. Do not insert and avoid accidental insertion of any external objects into the ventilation or discharge outlets as this may lead to electric shock, fire or damage the panel.
- Page 5 Turn the switch off and unplug before carrying out any maintenance work or moving the panel heater. Always unplug from the socket when the panel is not in use. WARNING: ALWAYS UNPLUG WHEN CARRYING MAINTENANCE WORK OR MOVING THE PANEL HEATER. ...
-
Page 6: Description Of Parts
DESCRIPTION OF PARTS FRONT BACK SIDE CONTROL PANEL A. Radiating body B. Feet C. Room temperature regulation thermostat G. Carry handle D. Power selector I – power 500W H. Rear brackets for wall mounting E. Power selector II – power 1000W I. - Page 7 Wall-mounting: how to assemble the panel brackets and mount it to the wall The panel packaging contains all the accessories necessary for wall-mounting. To wall-mount, proceed as follows: 1. Mark out on the wall the points to be drilled for Fischer rawlplug insertion. The holes must be 332 mm apart, as shown in the figure.
- Page 8 (220-240V/50Hz). Turn the side dial of the thermostat to the maximum (max. temperature). Now choose the power level desired by using the switches as appropriate: If both switches are in the ‘0’ position, i.e. off, the panel is off. ...
- Page 9 STORING THE PANEL HEATER If the panel is not used for prolonged periods, it must be stored together with this manual in its original packaging, in a cool and dry place. Never put the appliance away when still hot. Always wait for it to cool down. INFORMATION ON PROPER DISPOSAL OF THE APPLIANCE IN COMPLIANCE WITH EUROPEAN DIRECTIVE 2012/19/EU.
