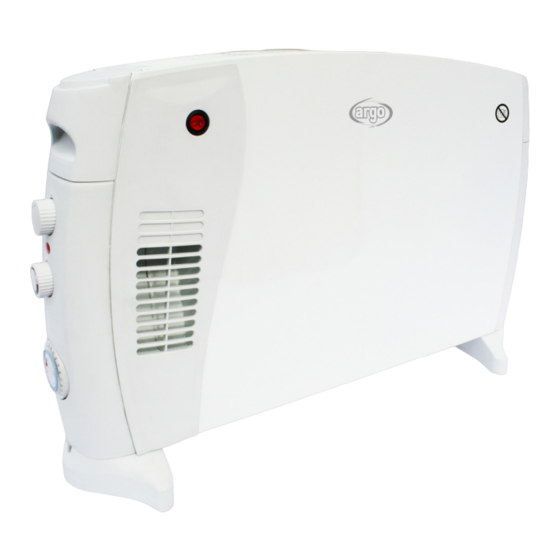

Argo HI FLOOR DESIGN Operating Instructions

Electric convection heater

Download this manual

ELECTRIC CONVECTION HEATER

OPERATING INSTRUCTIONS

Read the instructions carefully before operating the convector or carrying out maintenance operations.

Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damages.

Store these instructions.

V 05/11

Need help?

Do you have a question about the HI FLOOR DESIGN and is the answer not in the manual?

Page 1 ELECTRIC CONVECTION HEATER OPERATING INSTRUCTIONS Read the instructions carefully before operating the convector or carrying out maintenance operations. Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damages. Store these instructions. V 05/11...
Page 2: General Safety Information
GENERAL SAFETY INFORMATION  Use this convector only as outlined in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.  Ensure that the mains voltage complies with that indicated on the convector data plate (220-240VAC/50Hz). ...
Page 3: Description Of Parts
Carrying handles The convector is available in two different versions: HI FLOOR DESIGN – Min./med./max. power 750/1250/2000 W – Thermostat and power selector with turbo HI FLOOR DESIGN PLUS - Min./med./max. power 750/1250/2000 W – Thermostat and power selector with turbo and 24h timer.
Page 4 This way the panel will maintain that room temperature constant. Only for HI FLOOR DESIGN PLUS, please check the timer switch state: if it is on O, the convector can’t start operating; if it is on the starting time depends on timer setting.
Page 5 OPERATING TIMER (HI FLOOR DESIGN PLUS model) The model HI FAN DESIGN PLUS is also equipped with 24 hours timer, which has 96 segments, each of which corresponds to 15 minutes of time and allows the lighting and working programming of during the 24 hours.

Hi floor design plus
