No: 25101 – 11/16 rev. 1
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMRH-105
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China

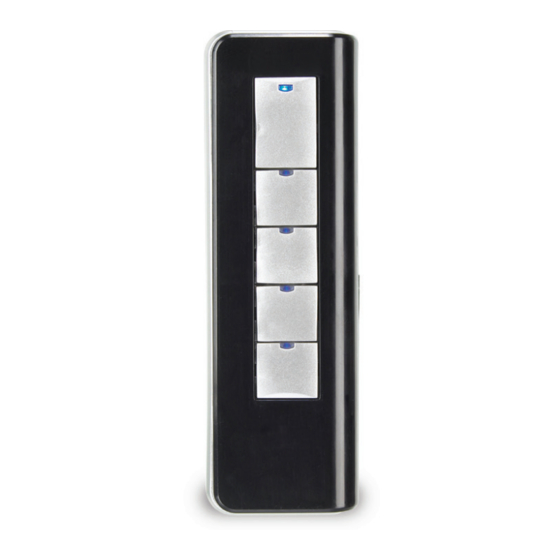

The Wattstopper LMRH-105 Digital IR Handheld Remote uses an infrared (IR) transmitter to send
commands to a Digital Lighting Management (DLM) network. It allows the user to record and recall
scenes, turn lights ON/OFF and dim without going to a wall box device.
The LMRH-105 operates on three AAA batteries. It communicates wirelessly with other DLM devices
by sending an IR signal to a DLM IR-enabled device within its range and line of sight.
Battery Installation
The battery compartment holds three standard 1.5V AAA Alkaline batteries (supplied). Rechargeable
NiMH batteries can be used. Do not mix battery types. Do not mix old batteries with new batteries.
The LMRH-105 uses IR technology to wirelessly send control signals to the DLM system. Point the handheld remote at any IR-enabled
DLM device within its range and press a button to send signals to the DLM network. To identify an IR-enabled device, look for a dark
translucent lens on the face of the device.
Default Functionality: Plug n' Go™ (PnG)
As shipped, the rocker paddle and scene buttons control all loads on the DLM local network. To change the loads that are controlled by
the LMRH-105 and to record scenes see the ADJUSTMENT section.
Transmitting Range
40°
Wattstopper
DLM - Digital IR Handheld Remote 5-button Scene Switch
User Guide
Power Supply .....3 AAA batteries, 1.5V alkaline or NiMH rechargeable
Environment:
Operating Temperature .............................. 32˚to 95°F (0˚to 35°C)
Storage Temperature ............................23° to 176°F (-5° to 80°C)
Relative Humidity ................................5 to 95% (non condensing)
Other:
RoHS compliant
FCC part 15
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Patents Pending
DESCRIPTION
OPERATION
32' (10m) max.
®
SPECIFICATIONS
3 AAA 1.5V batteries
Switch
Ceiling Mount
Sensor
Infrared
Lens
IR Receiver
Corner Mount
Sensor
Advertisement
Table of Contents
Related Manuals for LEGRAND Wattstopper LMRH-105
Summary of Contents for LEGRAND Wattstopper LMRH-105
-
Page 1: Specifications
Patents Pending DESCRIPTION The Wattstopper LMRH-105 Digital IR Handheld Remote uses an infrared (IR) transmitter to send 3 AAA 1.5V batteries commands to a Digital Lighting Management (DLM) network. It allows the user to record and recall scenes, turn lights ON/OFF and dim without going to a wall box device. -
Page 2: Button Functions
Button Functions Rocker Paddle IR Lens Press the top of the rocker paddle to turn load(s) ON. The blue LED on the paddle Single tap: Bound • also turns ON. Switched loads turn ON. Dimmable loads turn ON to the last light loads turn ON to Blue LEDs level set before they turned OFF. - Page 3 Recording Scenes Red LED The LMRH-105 comes from the factory with scenes 1-4 pre-recorded. By default, scenes 1-4 control all loads on the DLM local network. The Switches default light levels are shown in the Default Functionality: Plug n’ Go section.
-
Page 4: Troubleshooting
No. 25101 – 11/16 rev. 1 © Copyright 2016 Legrand All Rights Reserved. 800.879.8585 © Copyright 2016 Tous droits réservés Legrand. www.legrand.us/wattstopper © Copyright 2016 Legrand Todos los derechos reservados.
