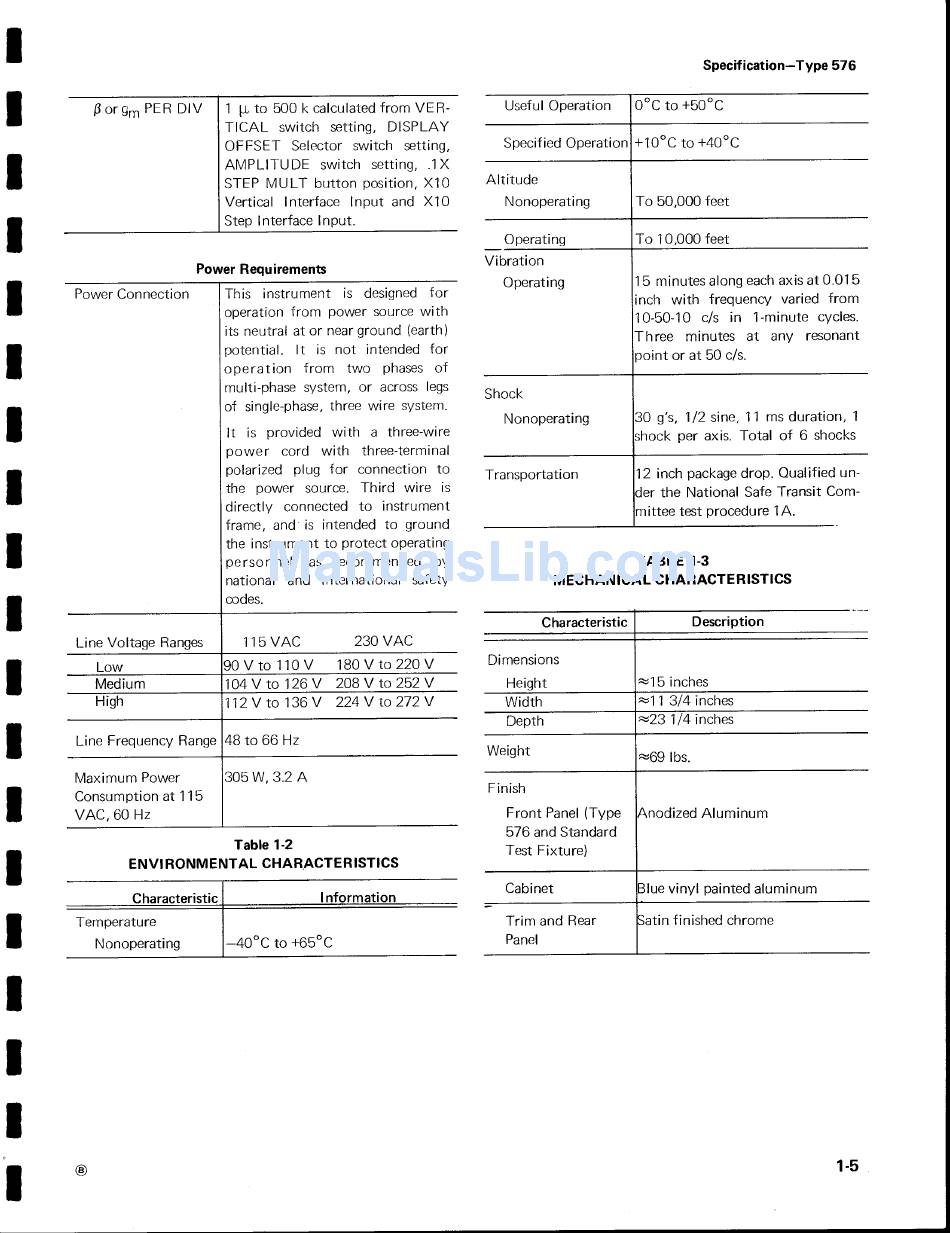

Tektronix 576 Manual page 8

βο rg m PER DI V
C
haracteristic
Temperature
N onoperating
1 μ to 500 k calculated from VER-
TICA L switch setting, DISPL AY
O FF SET Selector switch setting,
A MPL IT U DE switch setting, .1X
ST EP MULT button
p
osition, Χ10
Vertical Interface In put an d Χ10
Step Interface In put .
Power Requireme nts
Table 1-2
ENVI RONMEN TA L CHAR ACTER ISTICS
-400 C to +65° C
Information
Specification-Type 576
TABLE 1-3
ME CHANICA L CHARACT ER ISTICS
U seful Op eration 0 ° C to +50 ° C
Specified Op eration +10 °C to +40 ° C
Altitu de
N onoperating To 50,000 feet
Operating To 10,000 feet
Vibration
Operating
15 minutes along each axis at 0.015
inch with freque ncy varied from
10-50-10 c/s in 1-minute cycles.
Th ree minutes at any resonant
point or at 50 c/s.
S h oc k
Nonoperating
30 g's, 1/2 si ne, 11 ms
d
uration, 1
shoc k
p
er axis . Total of 6 shoc ks
Transportation
12 inch
p
ac kage
d
rop. Qualified un-
der t he N ational Safe Tra nsit Com-
mittee test
p roce dure 1 Α.
P
ower Connection Th is instrument is
d esigned for
operation from
p owe r source wit h
its neutral at or near ground (earth )
p otential . It is not intend e d fo r
o
p eration from two phases of
multi- phase system, or across legs
of single-phase, three wi re system .
It is
p
rovided with α
t
h ree-wire
powe r cord with three-terminal
p
olarized plug for connection to
the power source . Thir d wire is
di rectly connected to instrument
frame, an d is intended to ground
t
h e inst rument to protect operating
p
ersonnel, as recommen ded by
national an d inte rnational safety
co des .
L
ine Voltage
R
anges
115 VAC 230 VAC
L
ow
90 V to 110 V 180 V to 220 V
Medium
104 V to 126 V 208 V to 252 V
H
ig h 112 V to 136 V 224 V to 272 V
Line Fre quency
R
ange 48 to 66 H z
M
axim um P ower
305
W,
3.2 Α
Consum ption at 115
V AC, 60 H z
Characteristic
Descri ption
Dimensions
Height
-15 inches
W
idth
-11 3/4 inches
De pth
-23 1/4 inches
W
eight
-69 lbs.
Finis h
Front
P
anel (Type
576 an d Stan d ar d
Test
F
ixture)
Anodized Aluminum
Cabi net lue vi nyl
p
ainted aluminum
Trim and
R
ear
P
anel
Oatin finished chr ome
