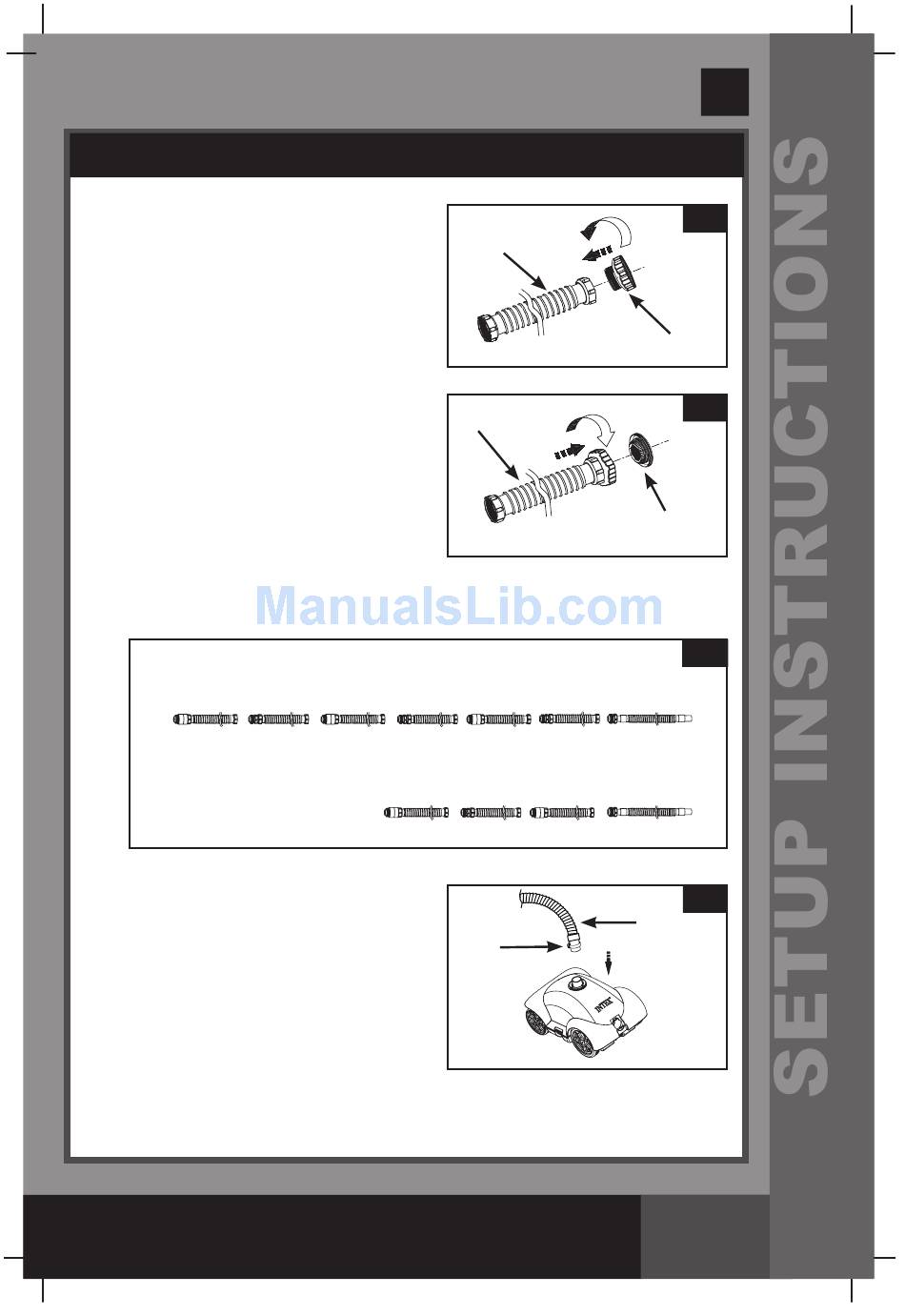

SETUP INSTRUCTIONS (continued)
4. Screw the hose adaptor (7) to hose
A (8). See Fig. 4.
5. Screw the end of hose A (8) with
adaptor to the threaded strainer
connector, from inside of the pool.
See Fig. 5.
6. Connect the rest of the hoses together outside the pool, in the order of
hose description (Fig. 6), B-C-B-C-B-C-D or B-C-B-D.
For pool size above 18':
(B)
For pool size 18' and below:
7. With hose clamp (6), fasten the
end of hose D (11) to the top
connection of cleaner. A small
coin can be used to tighten the
hose clamp. See Fig. 7.
8. Place auto cleaner into the water.
Fill up the hose assembly with
water by submerging the hose
into the water to remove all of the
entrapped air from the hose.
S AVE THESE INSTRUCTIONS
