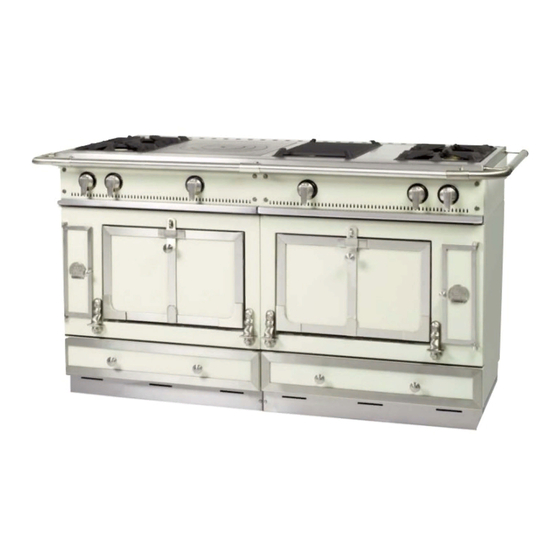

La Cornue Grand Palais 180 Installation Manual

Chateau g4 series
Hide thumbs Also See for Grand Palais 180:
Table of Contents

Advertisement

Quick Links

See also: Installation, Operation & Maintenance Manual
Installation
guide
Château G4 Line
with the new vaulted ovens
and the patented innovation, the RCC disk
Grand Palais 180 • Château 165 • Château 150
Grand Châtelet 135 • Château 120 • Châtelet 120
Grand Castel 90 • Castel 75
GB / IE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Grand Palais 180 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for La Cornue Grand Palais 180

Summary of Contents for La Cornue Grand Palais 180

  • Page 1 Château G4 Line with the new vaulted ovens and the patented innovation, the RCC disk Grand Palais 180 • Château 165 • Château 150 Grand Châtelet 135 • Château 120 • Châtelet 120 Grand Castel 90 • Castel 75 GB / IE...
  • Page 3 Dear Customer, Thank you for purchasing a La Cornue cooker. We hope that you will really enjoy preparing delicious meals with it. The aim of this installation guide is to familiarise you with the potential of a professional quality appliance designed for domestic use and to facilitate its upkeep.
  • Page 4 BP 99006 - 95070 Cergy Pontoise Cedex RANCE Tel: +33 (0)1 34 48 36 36 Fax: +33 (0)1 34 64 32 65 www.lacornue.com e-mail: a.table@la-cornue.com LA CORNUE – Installation Guide for Europe EN - “Château” Range G4 July 2015 - Anna Kowalczyk 08NOTINSTALG4/EN-1...

  • Page 5: Table Of Contents

    3. Power ratings for the electrical elements ........12 4. Rating plate ..................13 5. Cooker and cooktop dimensions and technical characteristics ..14 5.1. Grand Palais 180 .............. 14 5.2. Château®165 ..............18 5.3. Château® 150 ..............22 5.4. Grand Châtelet 135 ............26 5.5.

  • Page 6: Warning

    WARNING WARNING ARNING his appliance must be installed by a qualified professional in accordance with the current regulations in the country where the appliance is installed and must only be used in a well ventilated area. Read the guides before installing and using this appliance. Appliance categories (see pt.
  • Page 7 WARNING WARNING ARNING Please note: The appliance and its accessible parts become hot during use and will retain heat even after you have stopped cooking. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
  • Page 8 WARNING WARNING ARNING DO NOT use a steam cleaner to clean the cooker. Do not spray aerosols in the vicinity of the cooker while it is in on. Do not store or use combustible materials, or flammable liquids in the vicinity of this appliance.
  • Page 9 WARNING WARNING ARNING Preferably, there should be no cupboards or shelving above the appliance. In the event of cupboards/shelving being above the appliance, make sure that they hold objects seldom used, which can be safely kept in a place exposed to the heat generated by the appliance. NEVER COVER the slits, apertures or holes in the bottom part of the appliance, and never cover the grills with products such as aluminum foil;...
  • Page 10 WARNING WARNING ARNING USE THE RIGHT SIZE PAN. This appliance is equipped with burners of different sizes. Use utensils with flat bottoms. Do not use unstable pans and position the handles away from the edge of the cooktop. Make sure the flames are under the pans. It’s not safe to let the flames burn up the sides of the pan;...

  • Page 11: Description

    1. GENERAL DESCRIPTION There are 8 models in the “Château” line of cookers with vaulted oven: Le Grand Palais 180 - G48 Model comprising two large vaulted ovens (gas or electric on the left and electric on the right) and a cooktop.
  • Page 12 General description DESCRIPTION There are 7 models in the “Château” line of cooktops: Grand Palais 180 cooktop -T48 Width: 180cm. Château® 165 cooktop - T46 Width: 165cm. Château® 150 cooktop - T45 Width: 150cm. Grand Châtelet 135 cooktop - T43 Width: 135cm.

  • Page 13: Energy Power And Gas Flow Rates

    DESCRIPTION Energy power 2. ENERGY POWER AND GAS FLOW RATES All of our appliances belong to Category II and are designed for gases from the second and third groups. The gas used can be either natural gas G20 / G25 pressure 20 mbar (2 kPa) or 25 mbar (2.5 kPa) or LPG butane / propane G30 / G31 pressure 28-30, 37 and 50 mbar (2.8 - 3, 3.7 and 5 kPa), depending on availability.

  • Page 14: Power Ratings For The Electrical Elements

    (dimensions: 419 x 476 mm) Small electric hotplate ..……………………............. 1 300 W (dimensions: 284 x 476 mm) Large “La Cornue” Teppan-Yaki ................2 000 W (dimensions: 419 x 478 mm) Small “La Cornue” Teppan-Yaki ..........…......1 600 W (dimensions: 284 x 478 mm) Installation Guide - “Château”...

  • Page 15: Rating Plate

    DESCRIPTION Rating plate 4. RATING PLATE The rating plate of your appliance is on the bottom-left, on the toe kick behind the stora- ge drawer, or inside the spill tray for the château 120 models and for the cooktops. To see this rating plate, pull out the storage drawer or spill tray. You will find on this plate the name and address of the manufacturer as well as the follo- wing information: Kind of appliance (model)

  • Page 16: Cooker And Cooktop Dimensions And Technical Characteristics

    Le Grand Palais 180 DESCRIPTION LE GRAND PALAIS 180 - G48, T48 1. D IMENSIONS Cooker - G48: Cooker weight: 280 - 320 kg. depending on the model Cooktop - T48: Cooktop weight: 100 - 130 kg. depending on the model 2.
  • Page 17 DESCRIPTION Le Grand Palais 180 LE GRAND PALAIS 180 G48 3. P OWER FOR GAS AND ELECTRIC COOKERS * PLEASE NOTE: For 2 cables and a 400 V a.c. 3N power supply (3 Ph + N + T) - 1 cable is 400 V a.c., 3-PHASE - 1 cable is 230 V a.c., SINGLE-PHASE...
  • Page 18 Le Grand Palais 180 DESCRIPTION LE GRAND PALAIS 180 - T48 4. P OWER FOR GAS AND ELECTRIC COOKTOPS * PLEASE NOTE: For 2 cables and a 400 V a.c. 3N power supply (3 Ph + N + T) - 1 cable is 400 V a.c., 3-PHASE; - 1 cable is 230 V a.c., SINGLE-PHASE XX may be replaced by letters or figures Installation Guide - “Château”...
  • Page 19 DESCRIPTION Le Grand Palais 180 LE GRAND PALAIS 180 5. C OOKER CONNECTIONS Mixed gas/electric cooker Rear view GAS INLET MALE G 1/2 CONNECTION TERMINAL TERMINAL INLET BLOCK 1 BLOCK 2 All-electric cooker Rear view TERMINAL BLOCK 3 TERMINAL TERMINAL...
  • Page 20 Le Château 165 DESCRIPTION LE CHATEAU 165 - G46, T46 ® 1. D IMENSIONS Cooker - G46: Cooker weight: 260 - 290kg. depending on the model Cooktop - T46: Cooktop weight: 90 - 130kg. depending on the model 2. H OB CONFIGURATIONS 2 gas burners (small burner at the rear) 2 gas burners (small burner at the rear)

  • Page 21: Château®165

    DESCRIPTION Le Château 165 ® LE CHATEAU 165 - G46 3. P OWER FOR GAS AND ELECTRIC COOKERS * PLEASE NOTE: For 2 cables and a 400 V a.c. 3N power supply (3 Ph + N + T) - 1 cable is 400 V a.c., 3-PHASE; - 1 cable is 230 V a.c., SINGLE-PHASE XX may be replaced by letters or figures Installation Guide - "Château"...
  • Page 22 Le Château 165 DESCRIPTION ® LE CHATEAU 165 - T46 4. P OWER FOR GAS AND ELECTRIC COOKTOPS * PLEASE NOTE: For 2 cables and a 400 V a.c. 3N power supply (3 Ph + N + T) - 1 cable is 400 V a.c., 3-PHASE; - 1 cable is 230 V a.c., SINGLE-PHASE XX may be replaced by letters or figures Installation Guide - "Château"...
  • Page 23 DESCRIPTION Le Château 165 LE CHATEAU ® 5. C OOKER CONNECTIONS Mixed gas/electric cooker Rear view GAS INLET MALE G 1/2 CONNECTION TERMINAL TERMINAL BLOCK 1 GAS INLET BLOCK 2 All-electric cooker Rear view TERMINAL BLOCK 3 TERMINAL TERMINAL BLOCK 1 BLOCK 2 6.
  • Page 24 Le Château 150 DESCRIPTION LE CHATEAU 150 - G45, T45 ® 1. D IMENSIONS Cooker - G45: Cooker weight: 250 - 280kg. depending on the model Cooktop - T45: Cooktop weight: 80 - 110kg. depending on the model 2. H OB CONFIGURATIONS 2 gas burners (small burner at the rear) 2 gas burners (small burner at the rear)

  • Page 25: Château® 150

    DESCRIPTION Le Château 150 ® LE CHATEAU 150 - G45 3. P OWER FOR GAS AND ELECTRICAL COOKERS * PLEASE NOTE: For 2 cables and a 400 V a.c. 3N power supply (3 Ph + N + T) - 1 cable is 400 V a.c., 3-PHASE; - 1 cable is 230 V a.c., SINGLE-PHASE XX may be replaced by letters or figures Installation Guide - "Château"...
  • Page 26 Le Château 150 DESCRIPTION ® LE CHATEAU 150 - T45 4. P OWER FOR GAS AND ELECTRIC COOKTOPS * PLEASE NOTE: For 2 cables and a 400 V a.c. 3N power supply (3 Ph + N + T) - 1 cable is 400 V a.c., 3-PHASE; - 1 cable is 230 V a.c., SINGLE-PHASE XX may be replaced by letters or figures Installation Guide - "Château"...
  • Page 27 DESCRIPTION Le Château 150 LE CHATEAU ® 5. C OOKER CONNECTIONS Mixed gas/electric cooker Rear view GAS INLET MALE G 1/2 CONNECTION GAS INLET TERMINAL TERMINAL BLOCK 1 BLOCK 2 All-electric cooker Rear view TERMINAL BLOCK 3 TERMINAL TERMINAL BLOCK 1 BLOCK 2 6.

  • Page 28: Grand Châtelet 135

    Le Grand Châtelet 135 DESCRIPTION LE GRAND CHATELET 135 - G43, T43 1. D IMENSIONS Cooker - G43: Cooker weight: 200 – 220 kg. depending on the model Cooktop - T43: Cooktop weight: 80 – 100 kg. depending on the model 2.
  • Page 29 DESCRIPTION Le Grand Châtelet 135 LE GRAND CHATELET 135 - G43 3. P OWER FOR GAS AND ELECTRIC COOKERS XX may be replaced by letters or figures Installation Guide - "Château" Range G4 08NOTINSTALG4/EN-1...
  • Page 30 Le Grand Châtelet 135 DESCRIPTION LE GRAND CHATELET 135 - T43 4. P OWER FOR GAS AND ELECTRIC COOKTOP XX may be replaced by letters or figures Installation Guide - "Château" Range G4 08NOTINSTALG4/EN-1...
  • Page 31 DESCRIPTION Le Grand Châtelet 135 LE GRAND CHATELET 135 5. C OOKER CONNECTIONS Mixed gas/electric cooker Rear view GAS INLET MALE G 1/2 CONNECTION GAS INLET TERMINAL BLOCK 1 TERMINAL BLOCK 2 All-electric cooker Rear view TERMINAL BLOCK 3 TERMINAL BLOCK 1 TERMINAL BLOCK 2...

  • Page 32: Château® 120

    Le Château 120 DESCRIPTION LE CHATEAU 120 - G42, T42 ® 1. D IMENSIONS Cooker - G42: Cooker weight: 200 – 220 kg. depending on the model Cooktop - T42: Cooktop weight: 80 – 90 kg. depending on the model 2.
  • Page 33 DESCRIPTION Le Château 120 ® LE CHATEAU 120 - G42 3. P OWER FOR GAS AND ELECTRIC COOKERS * PLEASE NOTE: For 2 (or 3) cables and a 400 V a.c. 3N power supply (3 Ph + N + T) - 1 (or 2) cable is 400 V a.c., 3-PHASE;...
  • Page 34 Le Château 120 DESCRIPTION ® LE CHATEAU 120 - T42 4. P OWER FOR GAS AND ELECTRIC COOKTOP XX may be replaced by letters or figures Installation Guide - "Château" Range G4 08NOTINSTALG4/EN-1...
  • Page 35 DESCRIPTION Le Château 120 LE CHATEAU ® 5. C OOKER CONNECTIONS Mixed gas/electric cooker Rear view GAS INLET MALE G 1/2 CONNECTION TERMINAL GAS INLET BLOCK 1 TERMINAL BLOCK 2 All-electric cooker Rear view TERMINAL BLOCK 1 TERMINAL BLOCK 2 6.
  • Page 36 Le Châtelet 120 DESCRIPTION LE CHATELET 120 - G41 1. D IMENSIONS Cooker - G41: Cooker weight: 200 – 220kg. depending on the model 2. H OB CONFIGURATIONS See page 28 (Château 120) 3. C OOKER CONNECTIONS Mixed gas/electric cooker Rear view GAS INLET MALE G 1/2 CONNECTION...

  • Page 37: Châtelet 120

    DESCRIPTION Le Châtelet 120 LE CHATELET 120 - G41 4. P OWER FOR GAS AND ELECTRIC COOKERS * PLEASE NOTE: For 2 cables and a 400 V a.c. 3N power supply (3 Ph + N + T) - 1 cable is 400 V a.c., 3-PHASE; - 1 cable is 230 V a.c., SINGLE-PHASE XX may be replaced by letters or figures Installation Guide - "Château"...

  • Page 38: Grand Castel 90

    Le Grand Castel 90 DESCRIPTION LE GRAND CASTEL 90 - G49, T49 1. D IMENSIONS Cooker - G49: Cooker weight: 100 – 150kg. depending on the model Cooktop - T49: Cooktop weight: 70 – 100kg. depending on the model 2. H OB CONFIGURATIONS 2 gas burners (small burner at the rear) 2 gas burners (small burner at the rear)
  • Page 39 DESCRIPTION Le Grand Castel 90 LE GRAND CASTEL 90 - G49 3. P OWER FOR GAS AND ELECTRIC COOKERS * PLEASE NOTE: For 2 cables and a 400 V a.c. 3N power supply (3 Ph + N + T) - 1 cable is 400 V a.c., 3-PHASE; - 1 cable is 230 V a.c., SINGLE-PHASE XX may be replaced by letters or figures Installation Guide - "Château"...
  • Page 40 Le Grand Castel 90 DESCRIPTION LE GRAND CASTEL 90 - T49 4. P OWER FOR GAS AND ELECTRIC COOKTOP XX may be replaced by letters or figures Installation Guide - "Château" Range G4 08NOTINSTALG4/EN-1...
  • Page 41 DESCRIPTION Le Grand Castel 90 LE GRAND CASTEL 90 5. C OOKER CONNECTIONS Mixed gas/electric cooker Rear view GAS INLET MALE G 1/2 CONNECTION GAS INLET TERMINAL BLOCK 1 TERMINAL BLOCK 2 All-electric cooker Rear view TERMINAL BLOCK 1 TERMINAL BLOCK 2 6.

  • Page 42: Castel 75

    Le Castel 75 DESCRIPTION LE CASTEL 75 - G47, T47 1. D IMENSIONS Cooker - G47: Cooker weight: 100 – 130kg. depending on the model Cooktop - T47: Cooktop weight: 60 – 80kg. depending on the model 2. H OB CONFIGURATIONS 2 gas burners (small burner at the rear) 2 gas burners (small burner at the rear) 1 large electric teppan-yaki...
  • Page 43 DESCRIPTION Le Castel 75 LE CASTEL 75 - G47 3. P OWER FOR GAS AND ELECTRIC COOKERS XX may be replaced by letters or figures Installation Guide - "Château" Range G4 08NOTINSTALG4/EN-1...
  • Page 44 Le Castel 75 DESCRIPTION LE CASTEL 75 - T47 4. P OWER FOR GAS AND ELECTRIC COOKTOP XX may be replaced by letters or figures Installation Guide - "Château" Range G4 08NOTINSTALG4/EN-1...
  • Page 45 DESCRIPTION Le Castel 75 LE CASTEL 75 5. C OOKER CONNECTIONS Mixed gas/electric cooker Rear view GAS INLET MALE G 1/2 CONNECTION GAS INLET TERMINAL BLOCK 1 All-electric cooker Rear view TERMINAL BLOCK 1 TERMINAL BLOCK 2 6. C OOKTOP CONNECTIONS Mixed or all-gas cooktop Rear view TERMINAL...
  • Page 46 HEADQUARTERS AND WORKSHOP 14, rue du Bois du Pont - Z.I. Les Béthunes 95310 SAINT OUEN L’AUMONE OSTAL ADDRESS BP 99006 - 95070 Cergy Pontoise Cedex RANCE Tel: +33 (0)1 34 48 36 36 Fax: +33 (0)1 34 64 32 65 www.lacornue.com e-mail: a.table@la-cornue.com Installation Guide - "Château"...

  • Page 47: Before Delivery

    It is essential that the room where the "La Cornue" cooker or hob will be installed has excellent ventilation, i.e. to the outside for vapour and burnt gases and a fresh air inlet.
  • Page 48 (the strip between 60 and 95cm. from the floor, and the surface between the cooktop and the extractor hood) must be protected with a stainless steel plate or ceramic tiles. La Cornue is able to offer you several backsplash (stainless steel plate) at dimensions according to your stove.

  • Page 49: Electrical Supply

    (See pt.4, page 13 for the location of the plate). Due to the power of La Cornue appliances, a simple plug and socket connection is not recommended: the electrical connection should consist of a flexible cord without a plug, directly connected to the circuit breaker outlet by means of a junction box with terminal blocks, preferably of the anti-shearing type.

  • Page 50: Handling And Installation Instructions

    Handling instructions HANDLING INSTRUCTIONS See the drawings on the specific presentation pages for each model for details about the connections. When your cooker or your hob is built-in between two kitchen units, the shut-off valve must be accessible through an appropriate cut-out in the back of the kitchen unit. It is forbidden to use flexible rubber hoses with a collar fastening to supply gas to gas appliances.
  • Page 51 HANDLING INSTRUCTIONS Handling instructions 3. Remove the plinthes/toe-kicks using a standard screwdriver. Full view of elements set aside. Lighten cooker 4. Create a harness with four Installer’s straps. 5. Twist the harness and tilt the cooker to place the harness. 6.

  • Page 52: Handrail Installation

    Handrail installation INSTALLATION INSTRUCTIONS 2. H ANDRAIL INSTALLATION The handrail is supplied with two supports, screws, mounting plates, anti-rotation cupped washers and the rail itself. Depending on your appliance model, the handrail may also be supplied with one more rail support attachments. Before securing the handrail to the cooktop, insert an anti-rotation cup washer between the support and the handrail.

  • Page 53: Riser / Backsplash Installation

    INSTALLATION INSTRUCTIONS Height adjustment 3. R ISER ACKSPLASH INSTALLATION Washer M5x16 Inserts 8 mm 4. H EIGHT ADJUSTMENT In order to ensure that the cooktop is perfectly horizontal, especially on old flooring, we advise you to install your cooker on a wooden or cement base and your hob on a perfectly horizontal kitchen unit, the height of which will allow you to bring the hob to a level in accordance with its environment or your own requirements.

  • Page 54: Connections

    1. E LECTRICAL CONNECTIONS La Cornue appliances are supplied with 1 – 3 flexible cords, P/N: H07 RN-F, consisting of 3 or 5 wires, approximately 1.5 m long, ready to be connected to a single-phase or 3-phase + neutral + ground power supply, depending on the indications specified on the order form (see the table corresponding to each model for the power ratings).

  • Page 55: Gas Connection

    CONNECTIONS Electrical, Gas connections 220-240 V a.c. – single-phase 400 V a.c. – 3-phase - For a single-phase 220 - 240 V power supply, shunt the P1, P2 and P3 terminals with shunt assemblies (1), and then connect the cable wires as follows: - neutral (blue wire) to N - the phase (red or brown wire) to P1 - the ground to T (yellow / green)
  • Page 56 Gas connections CONNECTIONS The gas connection must be done in keeping with the installation rules in force in the country where the appliance is to be used. Connection to the previously installed shut-off valve must be made using a flexible hose with screwable connectors, approved.
  • Page 57 CONNECTIONS Gas connections Sealing must be ensured by tightening 2 sealing surfaces beyond the threading with an appropriate sealing joint between them. To ensure the correct level of sealing along the threading, a sealing compound or joining compound should be applied to the threading. If a sealing compound has to be used, we recommend LOCTITE 542.

  • Page 58: Ignition - Adjustments

    Starting with the cooktop IGNITION – ADJUSTMENTS – A GNITION DJUSTMENTS IMPORTANT Please make sure your cooker is unpacked completely before use. Remove all tape and packaging. Make sure that the burners of the hob and oven are correctly positioned and are level.
  • Page 59 IGNITION – ADJUSTMENTS Starting with the cooktop · Low setting: this is achieved by rotating the knob fully to the left or to the bottom. · Shutoff: bring the knob back to its vertical position by rotating it to the right. In case the burner flame is accidentally turned off, close the burner control knob and do not turn on the burner for at least one minute.
  • Page 60 Otherwise you risk damaging the inductors. For more information relating to induction hob, refer to «Instructions for use Induction Hob La Cornue», supplied with your cooker. Warning: if the surface is cracked, immediately disconnect the device or the power supply.

  • Page 61: Starting With The Ovens

    IGNITION – ADJUSTMENTS Starting with the ovens 1.5. Electric hotplate Large electric hotplate: dimension 419 x 476 mm, power 2300 Watts. Small electric hotplate: dimension 284 x 476 mm, power 1300 Watts. To heat the electric hotplate, turn the control knob towards the right or towards the left to the desired position: - 1, corresponds to the lowest power, Small electric hotplate...
  • Page 62 Starting with the ovens IGNITION – ADJUSTMENTS Note: The red indicator in the bottom part of the control box indicates any operational defects related to oven ignition. If this indicator is ON, check that the gas shutoff valve is set to the open position and the cooker is well supplied with gas, then press the button (G) to the left of the indicator light.
  • Page 63 IGNITION – ADJUSTMENTS Starting with the ovens 2.2. Multifunction electric oven Functions of the Multifunction oven: The multifunction oven has many different uses. We recommend that you take extra care when cooking until you have familiarised yourself with each function. Don’t forget: not all the functions are suitable for all types of food.
  • Page 64 Starting with the ovens IGNITION – ADJUSTMENTS "Floor-Vault Combination" Function This function combines the heat supplied by the top and bottom elements. The upper element operates with its inner power circuit only (1175 W). The temperature of the oven is regulated by the thermostat. The "Floor-Vault Combination"...
  • Page 65 IGNITION – ADJUSTMENTS The oven dishes After preheating (between 5 and 10 minutes depending on the temperature required), set the cooking mode for the food to be cooked. You can then place your food in the oven. 2.4. The oven dishes There are several different trays in your oven: The drip pan or the pastry tray with an enamelled coating.

  • Page 66: Replacing The Oven Light

    The oven dishes IGNITION – ADJUSTMENTS To use your oven in complete safety you must set up the large tray or "drip pan" correctly. To position the large tray or drip pan at the required height, place it above the lateral oven sliders, with the tray slots above the slider stops.
  • Page 67 IGNITION – ADJUSTMENTS Injectors GAS BURNER AND CAST IRON SOLID TOP Burner cap Injectors for gas burners The replacement of the burner and cast iron solid top injectors has to be done as follow: u Remove the pan support or the solid top. v Remove the burner cap.

  • Page 68: Adjusting The Low Settings

    Injectors. Low setting IGNITION – ADJUSTMENTS Access is gained to the oven injector either from the back of the cooker or from the front by removing the drawer. It is easier to change the injector by accessing it from the rear. Front of the cooker Back of the cooker Injector...

  • Page 69: Injectors Table

    IGNITION – ADJUSTMENTS Injectors 6. I NJECTORS TABLE The following table indicates which injectors should be used following a change in the gas supply or a house move. Country: AT : Austria ES : Spain IE : Ireland PL : Poland BE : Belgium FI : Finland IT : Italy...

  • Page 70: Eco-Design

    ECO-DESIGN ECO-DESIGN ECO-DESIGN All our cooking appliances comply with European Parliament Directives No. 2009/125/EC of 21 October 2009 and No. 2010/30/EU of 19 May 2010 concerning eco-design, as well as European Regulations No. 65/2014 of 1 October 2013 and No. 66/2014 of 14 January 2014.
  • Page 71 ECO-DESIGN ECO-DESIGN OW TO REDUCE NERGY ONSUMPTION Install your cooker or cooktop some distance from your refrigerator, if possible. One appliance needs heat, the other cold; the two are therefor not suited as neighbours. Oven Preheat your oven only if this is recommended in the recipe. When the oven is operating do not leave the oven door open longer than necessary.

  • Page 72: Compliance With European Directives

    EUROPEAN DIRECTIVES UROPEAN IRECTIVES OMPLIANCE WITH UROPEAN IRECTIVES All of our appliances comply with the following European Directives: - Directive 2009 / 142 / EC "GAS APPLIANCES", European Standard EN 30 - Directive 2006 / 95 / EC "LOW VOLTAGE" - Directive 2004 / 108 / EC "ELECTROMAGNETIC COMPATIBILITY"...

  • Page 73: Warranty

    LA CORNUE SAS shall not be held legally with us how the appliance should be repaired. responsible in these three cases.
  • Page 76 14, rue du Bois du Pont - Z.I. les Béthunes - 95310 Saint-Ouen l’Aumône FRANCE Postal address: La Cornue SAS - B.P. 99006 - 95070 Cergy Pontoise Cedex - FRANCE Phone: + 33 (0)1 34 48 36 36 - Fax: + 33 (0)1 34 64 32 65 E-mail: a.table@la-cornue.com...
