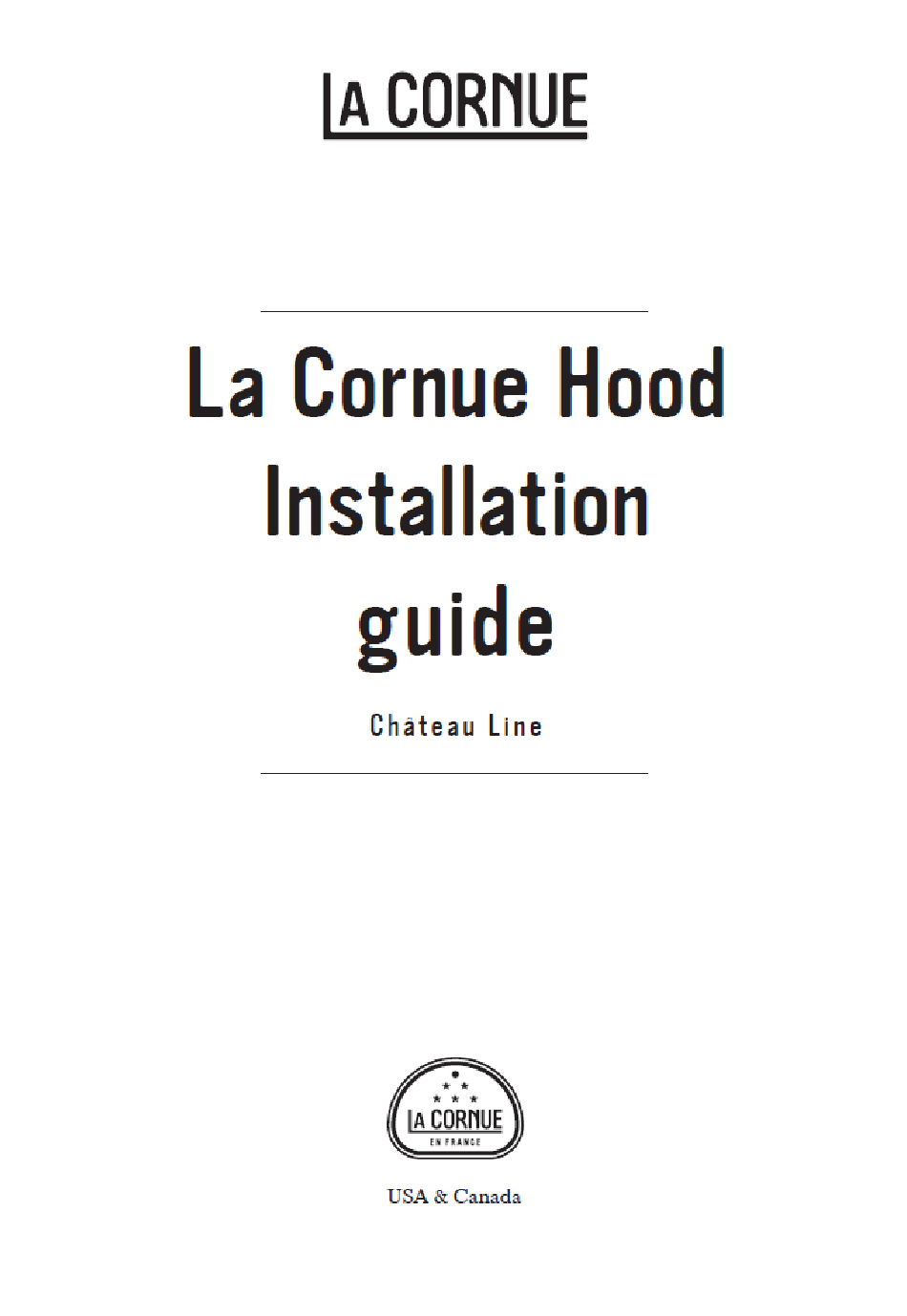

La Cornue Chateau series Installation Manual

Hide thumbs Also See for Chateau series:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chateau series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for La Cornue Chateau series

Summary of Contents for La Cornue Chateau series

  • Page 2: Table Of Contents

    ELECTRICAL DIAGRAM……………………………………………………….17 - 18 WARRANTY ............………………………………….19 - 20 All of the characteristics are provided for information purposes only. With the aim of constantly improving its production quality, La Cornue may make modifications to its appliances in line technological develop- ments.

  • Page 3: Warnings

    WARNINGS Read the guides before installing and using this appliance. We decline any responsibility for damage or fires Read the guides before installing and using this appliance. We decline any responsibility for damage or fires Read the guides before installing and using this appliance. We decline any responsibility for damage or fires Read the guides before installing and using this appliance.

  • Page 4: Installation

    WARNINGS 1. Installation This appliance must be installed by a qualified professional in accordance with the current regulations in the country where the appliance is installed. All installation and connection operations, activation and repairs must imperatively be performed by a qualified technician.

  • Page 5: Ventilation Shaft

    WARNINGS Cut off the current before performing any electrical interventions on the hood. Cut off the current before performing any electrical interventions on the hood. Cut off the current before performing any electrical interventions on the hood. Cut off the current before performing any electrical interventions on the hood. Ensure that none of the electrical cables are damaged before drilling the mounting holes into the wall or the ceiling.

  • Page 6: Fire Hazards

    1. GENERAL DESCRIPTION This document is common to all La Cornue Château line hood models. With our “special”, “individual” manu- facturing principle offering a wide variety of models, it is quite possible that you may not find the description or the technical characteristics for your personal model in this brochure.

  • Page 7: Technical Characteristics Of Hood Equipment

    GENERAL INFORNATION 2. TECHNICAL CHARACTERISTICS OF HOOD EQUIPMENT Voltage: 120 V a. c. single-phase + earth / 60 Hz for 1 motor version and 4 LED Lights - Nominal flow: 600 cfm - Electrical power: 460W - Current: 3,8 A Lighting : - light LED - power 2,5 W...

  • Page 8: Lacornue Hood Dimensions And Technical Information

    3. HOOD DIMENSIONS AND TECHNICAL INFORMATION G 005 2E250 8E RC G 005 2E250 4E RC G 005 E250 4E RC Grand Château Château Grand Château Château Château Palais 180 Châtelet 2000 1850 1700 1550 1400 1100 (mm) 1600 1450 1300 1150 1000...
  • Page 9 3. HOOD DIMENSIONS AND TECHNICAL INFORMATION Grand Château Château Grand Château Château Château Palais 180 Châtelet 135 2000 1850 1700 1550 1400 1100 L / 2 1000 1590 1440 1290 1140 1000 1000...
  • Page 10 3. hood Dimensions and technical information Grand Château Château Grand Château Château Château Palais 180 Châtelet 135 2000 1850 1700 1550 1400 1100 1800 1650 1500 1350 1200 1515 1365 1215 1065 1704 1554 1404 1254 1104 Ø...

  • Page 11: Assembly Instructions

    ASSEMBLY INSTRUCTIONS WARNING Excessive Weight Hazard Use two or more people to move and install range hood. Failure to do so can result in back or other injury HOOD WITH EXTERNAL EXTRACTION An assembly jig is attached to the hood for transportation to avoid any damage. To install the hood, you must first remove this jig according to the following indications but, before doing so, you must imperatively prepare the hood support structure according to our instructions.
  • Page 12 ASSEMBLY INSTRUCTIONS 3. Position the assembly jig on the wall. The grooves in the middle of the bars indicate the centre of the hood. Ensure that the assembly jig is horizontal and mark the holes for drilling. Drill the holes indicated on the jig in the wall and insert pegs adapted to the type of wall.
  • Page 13 ASSEMBLY INSTRUCTIONS 5. The mounting lugs allow you to adjust the position (angle) of the hood body in relation to the wall. Choose your version according to the shape of the wall (A, B, or C). The adjusting screws must be blocked with the locknuts.
  • Page 14 ASSEMBLY INSTRUCTIONS 7.2 REMOTE BLOWER INSTALLATION 8. Remove the 2 hatches (E) from the sides of the body. 9. Fit the mantel (B) onto the threaded rods (K) using the provide nuts. The hood mantel must not be twisted. Using a 90 degree screwdriver screw the mantel at the Bottom via the hatch and at the top space left vacant for the ferrule.
  • Page 15 ASSEMBLY INSTRUCTIONS Please note: If the hood is ordered without a ferrule, before fixing the mantel in place, you must remove the lugs (L) that are designed for fixing the ferrule in place and pull down the guiding lugs (M). 9.
  • Page 16 ASSEMBLY INSTRUCTIONS 10. Position the listels (I) on the hood body and fix them in place on the left and right with a M3 screw. Fix the connecting pierce in place (J). 11. Fix the 5-star plate to the listel connecting piece (J) with 3 M3 screws. 12.

  • Page 17: Electrical Diagram

    ELECTRICAL DIAGRAM Hood with internal Motor...
  • Page 18 ELECTRICAL DIAGRAM Hood with external Motor...
