Chapter 1
Your TrangoLINK-10 radio system provides the latest innovations in high speed fixed wireless broadband.
TrangoLINK -10 is a point-to-point (PtP) system which provides network connectivity at speeds up to 10 Mbps with a
range of 40 miles depending on antenna configuration. TrangoLINK-10 is unique in that it can operate in either the 5.8
GHz ISM band or the 5.3 GHz U-NII band. In this document and within the radio configuration itself, the designators of
"ISM" and "U-NII" are used to distinguish between the two bands.
The following table shows approximate maximum ranges (at recommended fade margins) achievable with the
TrangoLINK-10 system using various antenna configurations. Longer ranges are achievable, but will result in
lower fade margins.
Antenna
Integrated / Internal Antenna (18 dBi)
18" Dish Antenna (24 dBi)
15" Patch Antenna (24 dBi)
36" Dish Antenna (31 dBi)
TrangoLINK-10 system consists of two types of radios: Master Units (MU) and Remote Units (RU). With careful
channel planning, (and adequate spacing and shielding) network operators can co-locate up to 22 MUs at a single cell
site.
The MU and RU conform to maximum radiated power limits as established by the FCC.
Getting to Know Your Radio
Contents
Each TrangoLINK-10 kit comes equipped with two radios, two power-over-Ethernet (PoE) J-Box, two AC adapters, a
serial programming cable, and mounting hardware. Dual-polarized internal antennas are included within the Radomes of
both the M5830S-MU and M5830S-RU.

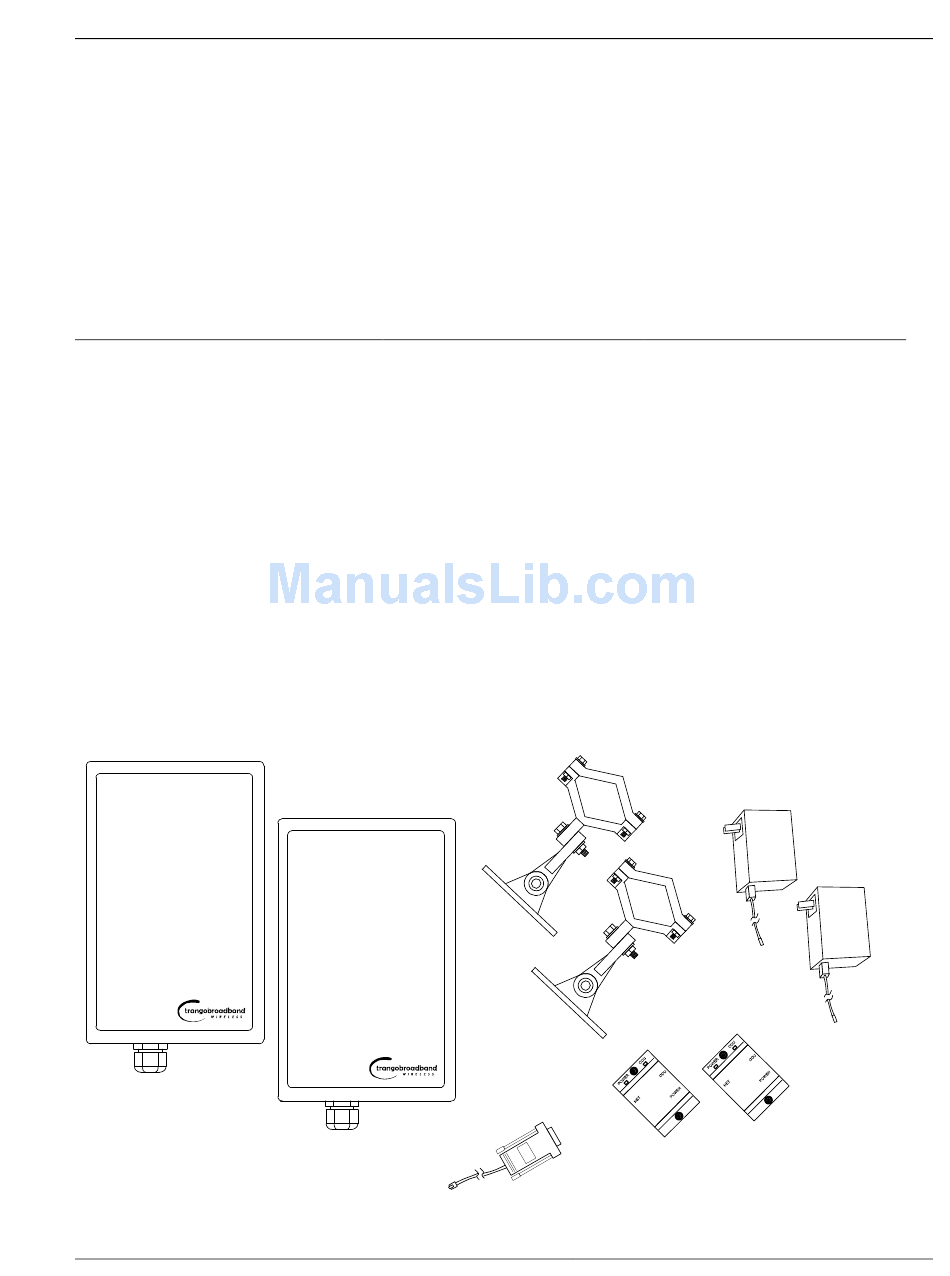

Figure 0-1 Components of an TrangoLINK System
Trango Broadband Wireless — User Manual TrangoLINK Rev. A for F/W Ver. 1.0
Welcome!
ISM 5725 – 5850 MHz
10 Miles (w/ 10 dB fade margin)
20 Miles (w/15 dB fade margin)
20 Miles (w/15 dB fade margin)
40 Miles (w/21 dB fade margin)
Getting to Know Your Radio
U-NII 5250 – 5350 MHz
3 Miles (w/ 10 dB fade margin)
5 Miles (w/ 10 dB fade margin)
5 Miles (w/ 10 dB fade margin)
10 Miles (w/ 10 dB fade margin)
Page 1
