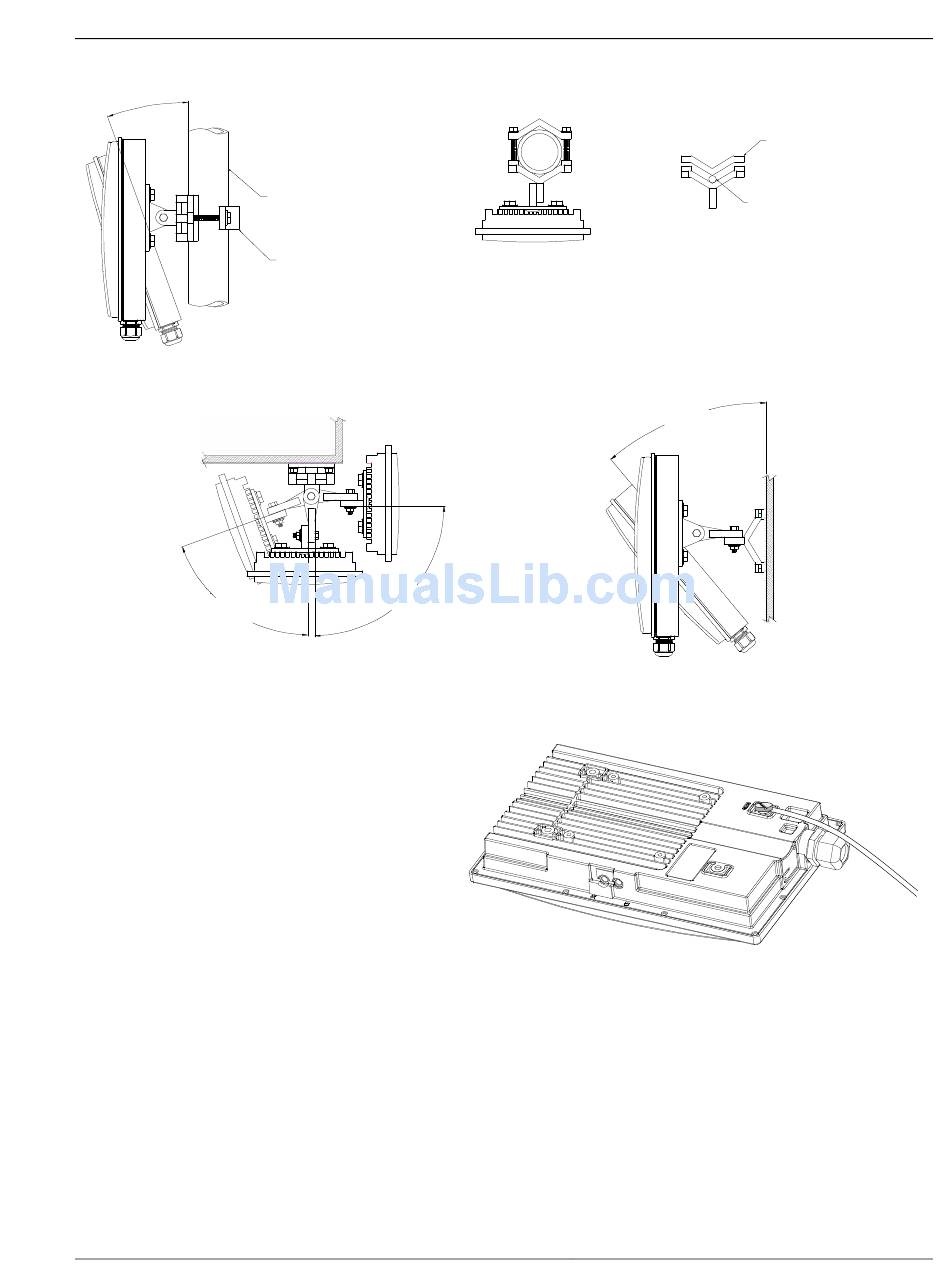

Figure 0-9 Mounting Options

20.00 °
UP/DOWN TILT MAX
70.00 ° SWIVEL
IF MOUNTED NEAR
WALL

Figure 0-10 Grounding Example

Proper mounting of
consideration for grounding. Please note that if
the radio is attached to a metal pole which is
earth-grounded, no other grounding is necessary.
If the radio is not earth-grounded via the mounting
bracket, you must attach a grounding wire to the
grounding stud on the back of the radio as per the
adjacent diagram.

Cabling and Weather Considerations

Shielded twisted pair Cat-5 cable is recommended for all installations. The shield within the Cat-5 cable does not need to
be grounded if the radio itself is grounded. It is important to consider that most Cat-5 cable will deteriorate over time if
exposed to the weather (especially direct sunlight). It is recommended that installers place all Cat-5 cables inside conduit.
Plastic or conduit is sufficient. If metal conduit is used, it is not necessary to use shielded Cat-5 cable.
It is imperative that the radio be COMPLETELY SEALED at both the Ethernet port as well as the Serial Port
access cover. The contracting weather-proofing clamp at the bottom of the Ethernet port must be securely tightened
around the cable if conduit is not used. Proper sealing of the radio will ensure that moisture will not enter the enclosure
of the radio. Without proper sealing, moisture may enter the radio and potentially cause damage which will not be
covered under warranty.
Trango Broadband Wireless — User Manual TrangoLINK Rev. A for F/W Ver. 1.0
.50" - 3.00" DIAM. MAST
FOR MAST SIZES SMALLER
THAN 2.00" BRACKET MUST
BE INVERTED (SEE DETAIL 'A' BELOW)
90.00 ° SWIVEL
IF MOUNTED ON
CORNER
the radio includes
POLE MOUNT
UP/DOWN TILT MAX
WALL MOUNT
Installation
INVERTED BRACKET
SMALL DIAM. MAST
40.00 °
