Command Set Summary

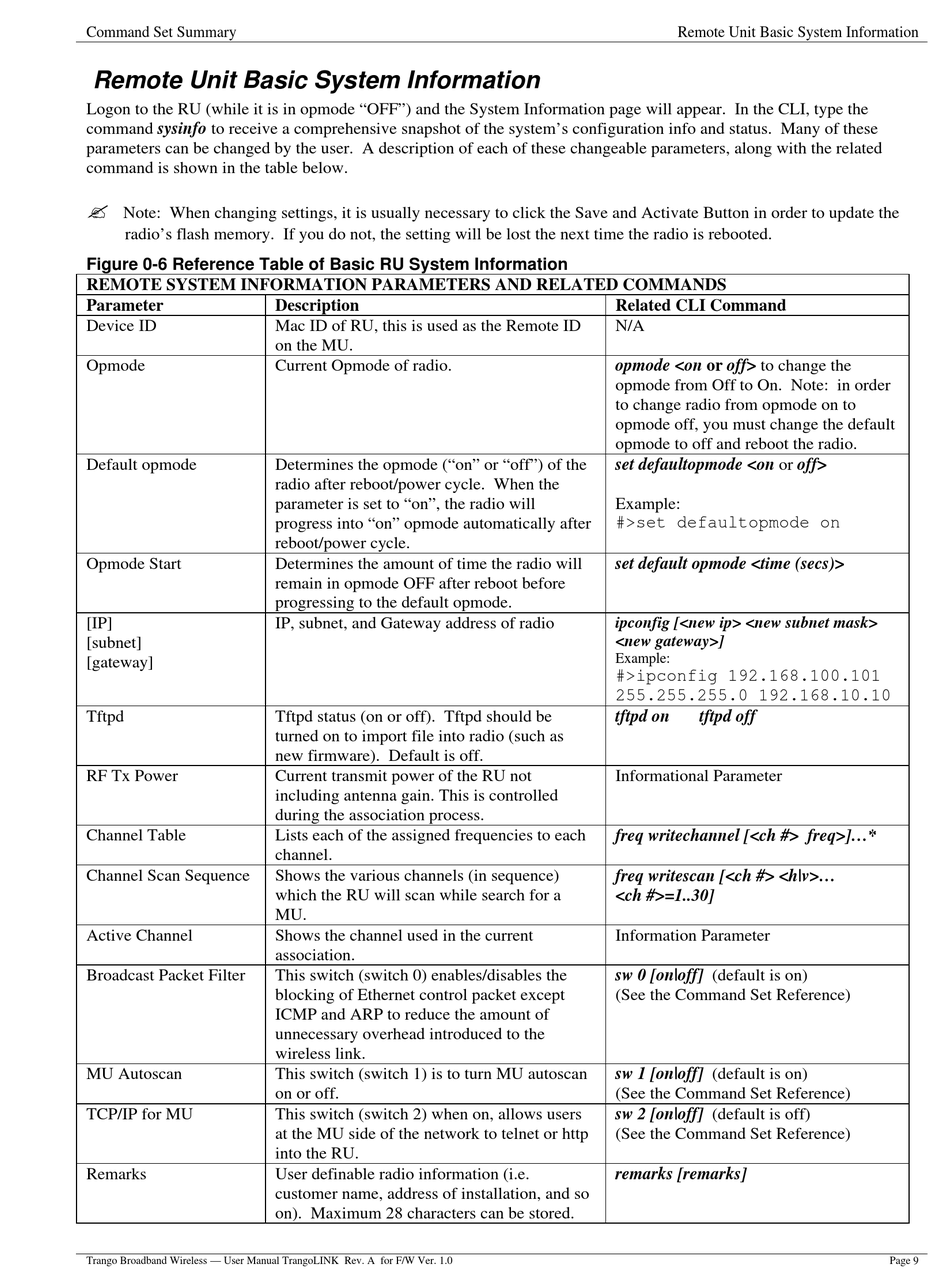

Remote Unit Basic System Information

Logon to the RU (while it is in opmode "OFF") and the System Information page will appear. In the CLI, type the
command sysinfo to receive a comprehensive snapshot of the system's configuration info and status. Many of these
parameters can be changed by the user. A description of each of these changeable parameters, along with the related
command is shown in the table below.
?
Note: When changing settings, it is usually necessary to click the Save and Activate Button in order to update the
radio's flash memory. If you do not, the setting will be lost the next time the radio is rebooted.

Figure 0-6 Reference Table of Basic RU System Information

REMOTE SYSTEM INFORMATION PARAMETERS AND RELATED COMMANDS
Parameter
Device ID
Opmode
Default opmode
Opmode Start
[IP]
[subnet]
[gateway]
Tftpd
RF Tx Power
Channel Table
Channel Scan Sequence
Active Channel
Broadcast Packet Filter
MU Autoscan
TCP/IP for MU
Remarks
Trango Broadband Wireless — User Manual TrangoLINK Rev. A for F/W Ver. 1.0
Description
Mac ID of RU, this is used as the Remote ID
on the MU.
Current Opmode of radio.
Determines the opmode ("on" or "off") of the
radio after reboot/power cycle. When the
parameter is set to "on", the radio will
progress into "on" opmode automatically after
reboot/power cycle.
Determines the amount of time the radio will
remain in opmode OFF after reboot before
progressing to the default opmode.
IP, subnet, and Gateway address of radio
Tftpd status (on or off). Tftpd should be
turned on to import file into radio (such as
new firmware). Default is off.
Current transmit power of the RU not
including antenna gain. This is controlled
during the association process.
Lists each of the assigned frequencies to each
channel.
Shows the various channels (in sequence)
which the RU will scan while search for a
MU.
Shows the channel used in the current
association.
This switch (switch 0) enables/disables the
blocking of Ethernet control packet except
ICMP and ARP to reduce the amount of
unnecessary overhead introduced to the
wireless link.
This switch (switch 1) is to turn MU autoscan
on or off.
This switch (switch 2) when on, allows users
at the MU side of the network to telnet or http
into the RU.
User definable radio information (i.e.
customer name, address of installation, and so
on). Maximum 28 characters can be stored.
Remote Unit Basic System Information
Related CLI Command
N/A
opmode <on or off> to change the
opmode from Off to On. Note: in order
to change radio from opmode on to
opmode off, you must change the default
opmode to off and reboot the radio.
set defaultopmode <on or off>
Example:
#>set defaultopmode on
set default opmode <time (secs)>
ipconfig [<new ip> <new subnet mask>
<new gateway>]
Example:
#>ipconfig 192.168.100.101
255.255.255.0 192.168.10.10
tftpd on tftpd off
Informational Parameter
freq writechannel [<ch #> freq>]...*
freq writescan [<ch #> <h|v>...
<ch #>=1..30]
Information Parameter
sw 0 [on|off] (default is on)
(See the Command Set Reference)
sw 1 [on|off] (default is on)
(See the Command Set Reference)
sw 2 [on|off] (default is off)
(See the Command Set Reference)
remarks [remarks]
Page 9
