Caution: Please make sure you have all parts indicated below prior to assembly.
This unit is heavy and can best be assembled with the help of two or more persons.

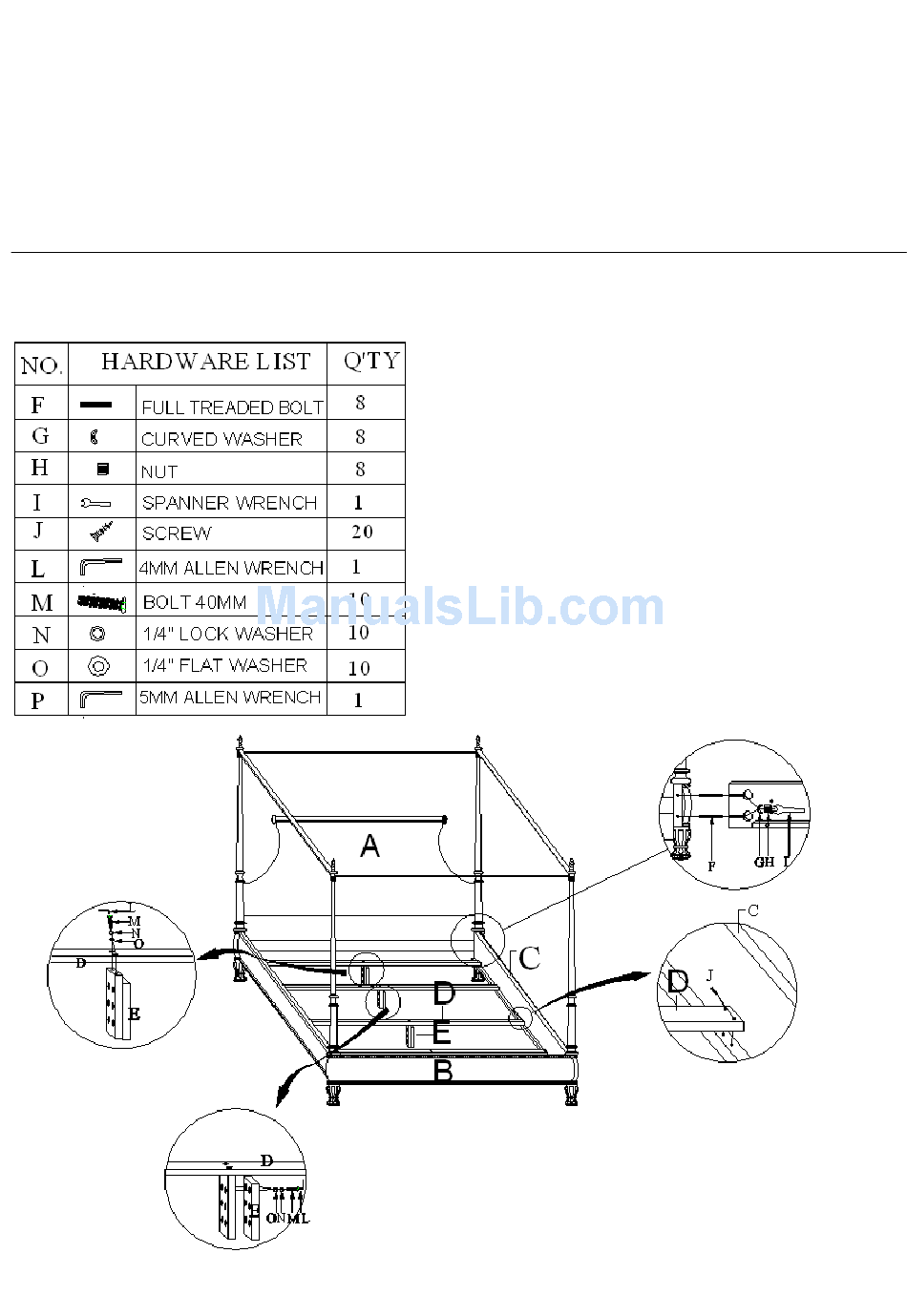

See Diagram 2
ASSEMBLY INSTRUCTION
ITEM# 638-90967 6/6 Montage Poster Headboard
638-90968 6/6 Montage Poster Footboard
638-90969 6/6 Montage Poster Rails
638-90970 6/6 Montage Canopy
See Diagram 5
1/4
See Diagram 1
See Diagram 3
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 638-90967
Summary of Contents for Hooker Furniture 638-90967
- Page 1 ASSEMBLY INSTRUCTION ITEM# 638-90967 6/6 Montage Poster Headboard 638-90968 6/6 Montage Poster Footboard 638-90969 6/6 Montage Poster Rails 638-90970 6/6 Montage Canopy Caution: Please make sure you have all parts indicated below prior to assembly. This unit is heavy and can best be assembled with the help of two or more persons.
- Page 2 Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails. Assembly steps for side rails to HB/FB, slats to side rails, adjusting cleats on side rails to desired locations and height of center supports. 1.
- Page 3 Note: You can change the height of slat by adjusting the height of cleat on side rail as shown in diagram 4. Remove bolt (Q), lock washer (R) and flat washer (S) from the cleat by turning the bolt (Q) with allen wrench (P) in anti-clockwise direction. Adjust the cleat to a desired position, and then secure lock washer, flat washer, bolt in a clockwise direction by turning with allen wrench.
- Page 4 Assembly steps for HB/FB posts and metal canopy. 1. Tighten lower posts X (shorter) to footboard by turning in a clockwise direction. (See diagram 6) 2. Put the upper posts W (longer) on lower posts X by turning in a clockwise direction. (See diagram 7) 3.
