ASSEMBLY INSTRUCTION

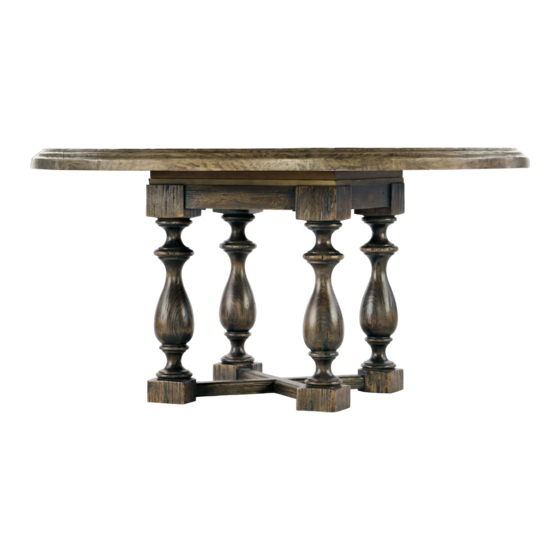

ITEM# 6960-75203B-89 Ellinger Round Dining Table Base
Caution: Please make sure you have all parts indicated below prior to assembly.
This table is heavy and can best be assembled with the help of two or more people.

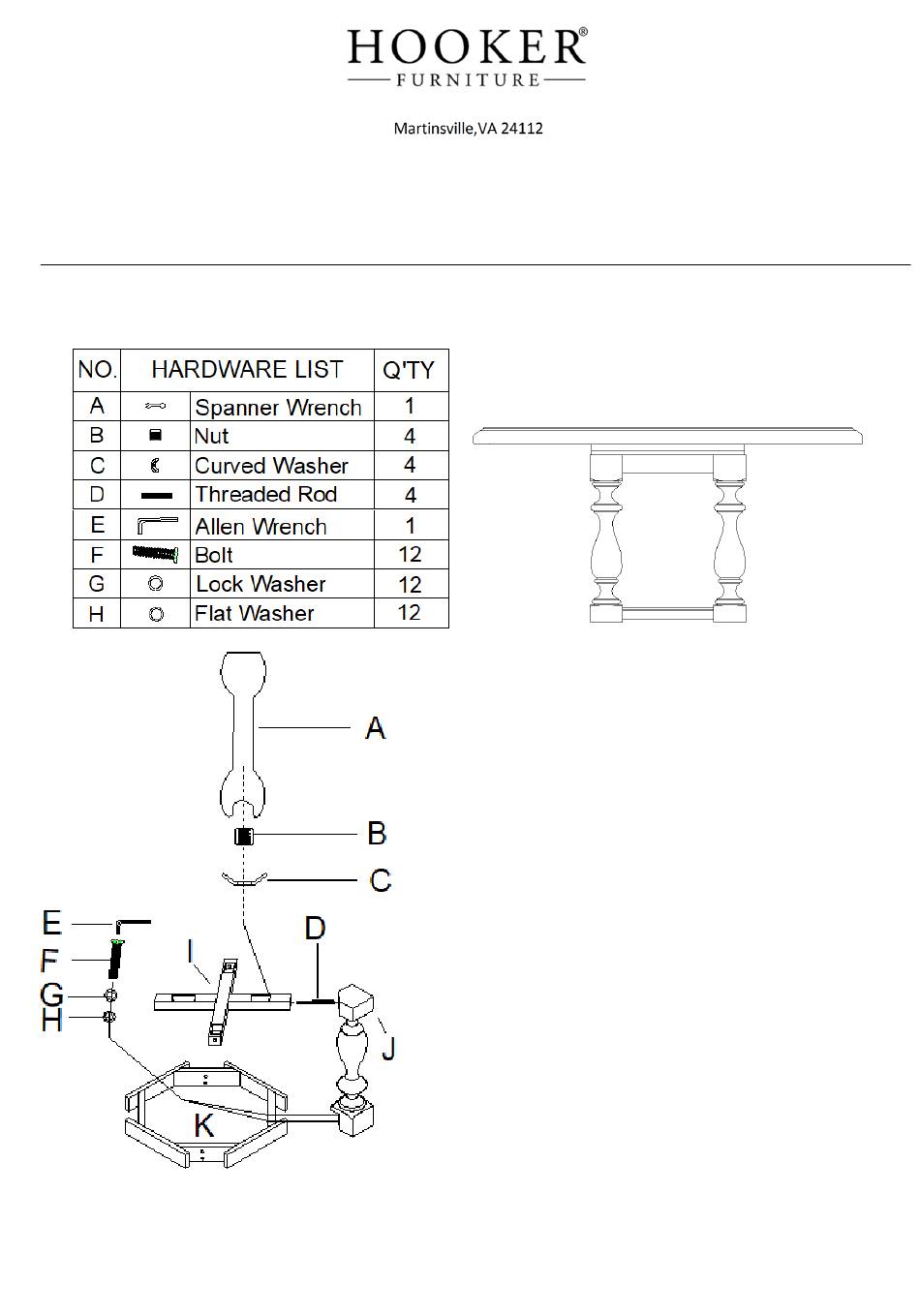

Diagram 1
6960-75213T-81 Ellinger 60in Round Dining Table Top
Diagram 2
Assembly Steps:
1. Insert threaded rods (D) into bottom of posts
(J).
2. Attach stretcher (I) to threaded rods by using
curved washers (C), nuts (B), tighten all with
spanner wrench (A). (See Diagram 1)
3. Assemble posts with stretcher to apron frame
(K) by using flat washers (H), lock washers (G)
and bolts (F), secure all with allen wrench (E).
(See Diagram 2)
1/2
Advertisement
Table of Contents
Related Manuals for Hooker Furniture Ellinger 6960-75203B-89
Summary of Contents for Hooker Furniture Ellinger 6960-75203B-89
- Page 1 ASSEMBLY INSTRUCTION ITEM# 6960-75203B-89 Ellinger Round Dining Table Base 6960-75213T-81 Ellinger 60in Round Dining Table Top Caution: Please make sure you have all parts indicated below prior to assembly. This table is heavy and can best be assembled with the help of two or more people. Assembly Steps: 1.
- Page 2 Diagram 3 4. Sit table top (L) on base frame. Align holes and use flat washers (H), lock washers (G) and bolts (F), tighten with allen wrench (E). (See Diagram 3) Cleaning Instruction: Clean finished parts with a mild dishwashing liquid and water solution on a damp cloth.
