SimpliciKey SRCED3 Programming & Operation Manual page 4

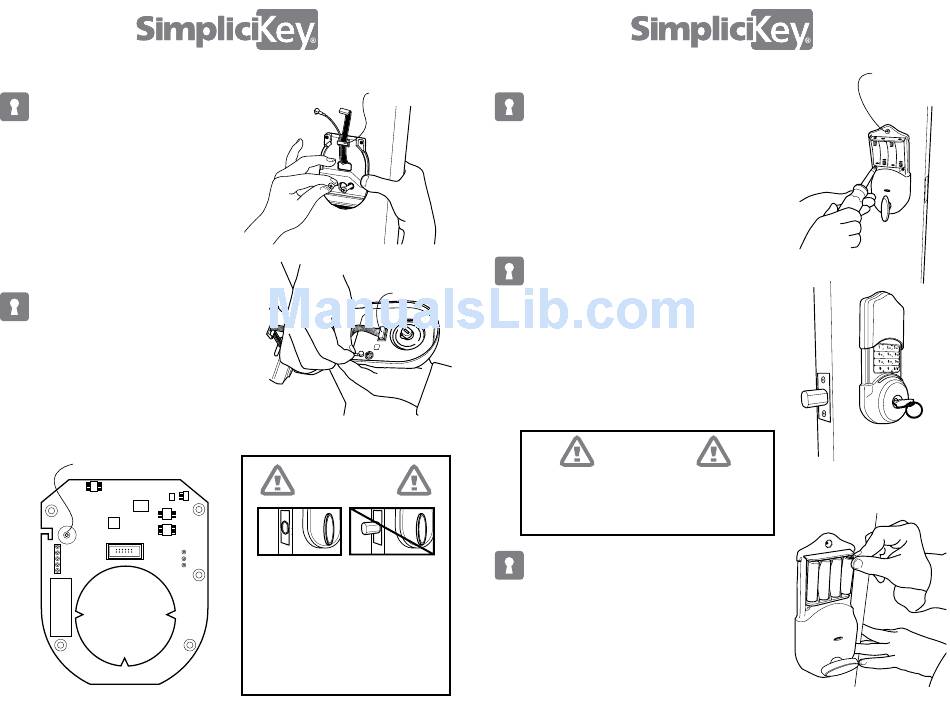

7. Install Interior Plate
Slide wires through wire hole of
interior lock plate. Be sure to keep
wires out of the way by sliding both
wires into the plastic clip on the
interior plate.
Insert two long bolts through plate,
latch, and thread into external lock,
securing all pieces snugly.
8. Attach Wires
Attach the black connector to the port
on the green circuit board with the
white rectangle around it labeled J4.
Attach other connector to the port on
the green circuit board just below the
top left screw. CoNNeCT ANTeNNA is
labeled (see picture ).
Connect Antenna Here
CONNECT ANTENNA
Plastic clip
J4
Critical Point
(A) (B)
Correct Incorrect
Do not skip this step or the lock
will not operate correctly.
Confirm that the deadbolt is retract-
ed during the entire installation.
Thumbturn should be in a vertical
position with deadbolt retracted as
shown in (A).
6
9. Install Interior Lock
Guide excess wiring into cavity above the green
circuit board. Align thumbturn with flat bar to
mount to interior plate. (Thumbturn must be in
the vertical position and deadbolt must remain
retracted). Attach interior lock to interior plate
with the two short bolts through holes under
battery case. Be careful not to pinch the wires
as you install the lock.
10. Test the Manual Deadbolt
Insert key into cylinder and turn to extend
deadbolt to locked position. If the deadbolt
will not extend, or there is resistance when
turning, double-check that all previous
steps have been completed successfully.
Remove key.
If the deadbolt still will not extend, call
Technical Support at 1-800-785-6595.
Critical Point
Make sure the door is open and the deadbolt
is free to auto-locate. Do not press any buttons
until lock activity stops and confirmation tone
sounds.
11. Install Batteries
Install four AA batteries in the compartment
on interior lock.
Lock will automatically locate door position to
determine right-hand / left hand orientation
Slide battery cover into place, concealing the
battery compartment.
Optional wood
screw hole for
increased
security.
7
