3. Remove Existing Strike Plate
First, remove the two existing strikeplate
screws.
Remove the strike plate and any other
hardware behind the plate.
4. Install New Strike Plate
Install the strike plate, then tighten screws.
For added security, and greater aesthetic appeal in the
door frame, install the strike box and reinforcement
plate. This may require additional door preparation to
make sure the strike plate remains flush with the door
frame.
Place strike plate into door frame to check that the
plate sits flush with the frame. Make sure the dead-
bolt freely slides into the strike plate when the door is
closed by rotating the thumbturn.
Confirm that the deadbolt is aligned properly with the
strike plate by pressing the lock button on a remote
control keyfob with the door closed.
If the deadbolt is not properly aligned with the strike
plate, refer to the Advanced Guide to help you adjust
the strike plate position.

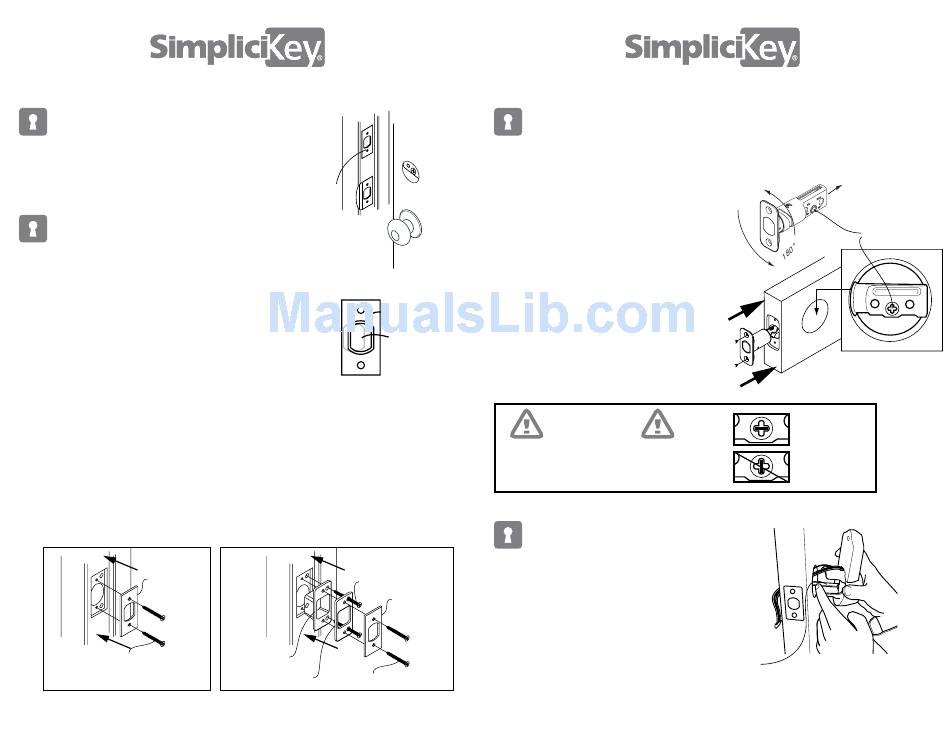

Standard Installation
Strike plate
Long wood screw
Reinforcement plate
4
Strike plate
Strike plate
Deadbolt
Enhanced Security Installation
Strike wood screw
Strike plate
Strike box
Long wood screw

5. Install New Deadbolt

Place deadbolt into door, check to see if
cross-hairs are centered.
To adjust the deadbolt length, twist the
deadbolt slide assembly to extend and
center in cutout.
Make sure cross-hairs are on the
lower part of the assembly.
Check that the plate sits flush
with the door.
Secure the deadbolt plate to the
door with two short wood screws
Critical Point
Insert the flat bar horizontally into the
cross-hairs of the deadbolt slide assembly.

6. Install Exterior Lock

Slide the wires above the
deadbolt slide assembly.
Cross-hairs
Correct
Incorrect
Horizontal
flat bar
