Dynojet POWER COMMANDER V Installation Instructions page 4

FIG.D
FIG.E
FIG.F
I11-016.01 www.powercommander.com

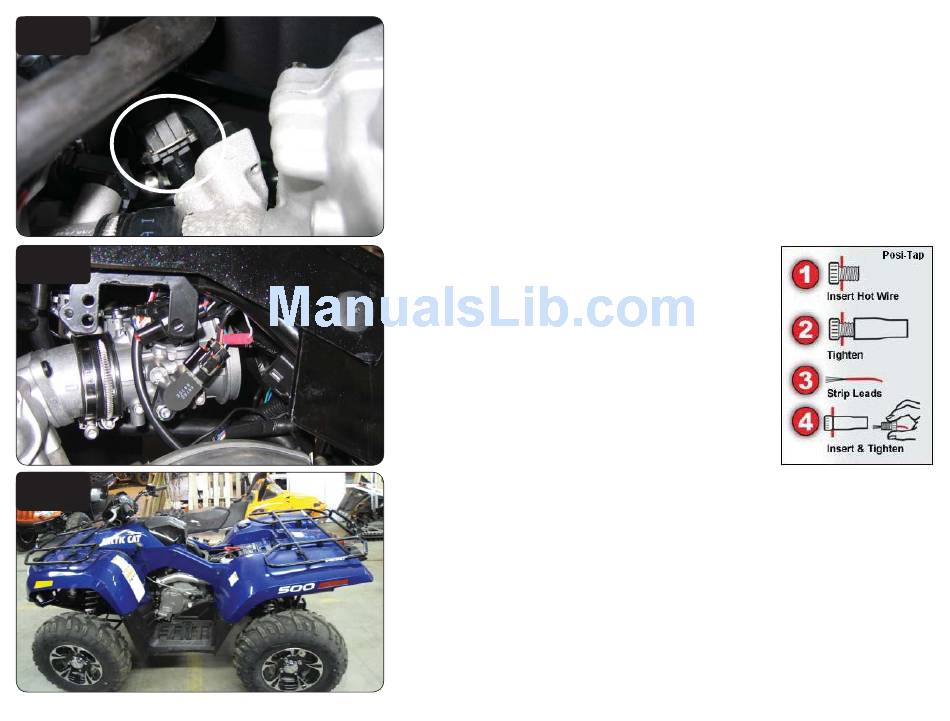

7 Locate the injector on top of the throttle body from the right hand side of the
ATV as shown in Figure D.
8 Unplug the stock wiring harness from the injector.
9 Attach the connectors from the PCV to the injector and the stock wiring
harness.
10 Locate the Throttle Position Sensor (TPS) on the left
hand side of the throttle body.
11 Using the supplied posi-tap, attach the grey wire
from the PCV to the green/black wire from the TPS.
12 Reinstall side panels and seat.
13 Insert the cd provided into your computer's cd-rom
drive and follow the on-screen instructions to install
the PCV software.
Visit www.powercommander.com to download
software tutorials.
2013 Arctic Cat 500cc Installation
Use the following instructions to install the 2013 Arctic Cat 500cc PCV module.
1 Remove the side panels and seat.
2013 Arctic Cat 450cc/500cc - PCV - 4
