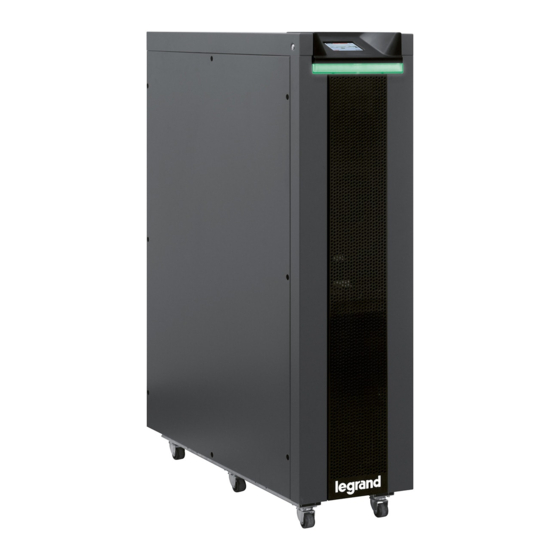

KEOR T EVO 10-15-20 KVA
Installation & Operation Manual
LE10507AA

Advertisement

Table of Contents
loading

Related Manuals for LEGRAND KEOR T EVO

Summary of Contents for LEGRAND KEOR T EVO

  • Page 1 KEOR T EVO 10-15-20 KVA Installation & Operation Manual LE10507AA...
  • Page 2 KEOR T EVO LE10507AA...

  • Page 3: Table Of Contents

    KEOR T EVO 1. FOREWORD 1.1. Overview 1.2. Manual 2. WARRANTY 2.1. Terms of Warranty 2.2. Out of Warranty Terms and Conditions 3. SAFETY 3.1. Description of the Symbols Used on the Labels Applied to the UPS 3.2. Individual Protective Gear 3.3.
  • Page 4 9. OPERATING PROCEDURES FOR SINGLE SYSTEMS 9.1. Preparations 9.2. Commissioning 9.2.1. Start-Up UPS with Internal Battery 9.2.2. Start-Up UPS with External Battery 9.3. Decommissioning 9.4. Maintenance Bypass Commissioning Instructions (Transfer Load Supply from UPS to Internal Maintenance Bypass) 9.5. Maintenance Bypass Decommissioning Instructions 10.

  • Page 5: Foreword

    This product is manufactured in an ISO 9001 & ISO14001 certified factory in full compliance with the eco-design laws. The UPS KEOR T EVO system is made in compliance with the existing European Community directives and with the technical standards in force to comply with CE marking as certified by the Declaration of Conformity issued by the Manufacturer.
  • Page 6 Read the manual completely before working on this equipment! Reproduction, adaptation, or translation of this manual is prohibited without prior written permission of LEGRAND Company, except as allowed under the copyright laws. The manufacturer reserves the rights to change the technical specifications and design without notice.

  • Page 7: Warranty

    Out of Warranty Terms and Conditions This Warranty does not apply if: • UPS not commissioned or maintained by an authorized LEGRAND UPS Technical Service staff or an authorized LEGRAND distributor Technical Service staff • UPS not used according the terms of operating and installation manual •...

  • Page 8: Safety

    3. Safety Information related to safety of the UPS, battery, load and the user is summarized below. But the equipment should not be installed before reading the manual completely. 3.1. Description of the Symbols Used on the Labels Applied to the UPS PE: PROTECTIVE EARTH PB: PROTECTIVE BONDING DANGER! HIGH VOLTAGE (BLACK/YELLOW)

  • Page 9: Important Notice For Ups

    • UPS requires 3Ph-N+PE input connection. • Do not connect the output neutral to the protective ground or protective bonding. KEOR T EVO does not modify the neutral arrangements of the system; the use of an isolation transformer is required should it be necessary to modify the neutral arrangements downstream KEOR T EVO.

  • Page 10: Important Notice For Battery

    Important Notice for Battery • The batteries may only be installed and commissioned by authorized LEGRAND UPS Technical Service Personnel. • Make sure that the battery qty is proper for the unit and they are same type and capacity. Otherwise danger of explosion and fire is within the bounds of possibility.

  • Page 11: Operation Modes

    IT room, industrial workshop, hospitals and offices. KEOR T EVO UPS during Online mode operation provides stable pure sine wave not affected by input voltage fluctuations. This helps to extend the life time of your sensible loads. Power factor of the current consumed from mains is nearly one.

  • Page 12: Battery Mode

    • If Inverter enabled: “YES”, Rectifier enabled: “NO” are selected through the front panel (Authorisations Menu for authorized Service Staff ). KEOR T EVO UPS operates with one or several parallel strings of 1 x 60pcs 12VDC battery with common neutral.

  • Page 13: Bypass Mode

    Bypass Mode Operation voltage tolerance limit can be adjusted in certain ranges depends on the cus- tomer’s request on site by Legrand UPS Technical Service Personnel. To return to Bypass Mode Operation; the mains voltage should turn back to +5V above of lower limit, -5V...

  • Page 14: Eco Mode

    The external manual maintenance bypass may be installed in the general distribution panel where KEOR T EVO is installed, or in an external bypass panel that is supplied on request. This operating mode enables the user to isolate the electronic circuitry of the UPS from the mains voltage and the load without interrupting the load operation by connecting the loads directly to the bypass utility supply.

  • Page 15: Requirement

    KEOR T EVO 5. Requirement 5.1. Transportation The UPS must be placed and stand in a vertical position throughout the transportation. Use suitable equipment to remove the UPS from the pallet. The equipment shall be packed properly during transportation. Therefore it is recommended to keep the original package for future need.
  • Page 16 Figure.5.2-1 Figure.5.2-2 Figure.5.2-3 Air conditioning Ventilation Direction of ventilation is front/sides to back. The room should be equipped with ventilation system or air conditioning to collect warm air from the top of the room and provide cool air at the bottom. Figure.5.2-4 ROOM LAYOUT RECOMMENDATION TABLE (for UPS with Internal Battery) A (mm)

  • Page 17: Storage

    KEOR T EVO Ensure the stability of UPS without internal battery and take necessary precautions. The UPS should be mounted on a concrete surface and non-combustible surface. In order to profit from optimal ventilation, the side panels must remain in place for UPS with internal battery.
  • Page 18 Installation Parameters Model (kVA) Phase in/out 3Ph+N+PE / 3Ph+N+PB Rated output apparent power (kVA) Rated output active power (kW) 13,5 Rated input current (A) at 400V nominal input voltage Maximum input current (A) at 358V input voltage + full load + battery charging Rated bypass current (A) at 400V nominal input voltage Maximum bypass current (A) at 400V, 125% overload 10 min Inverter output current @ 400V (A)
  • Page 19 KEOR T EVO *Rectifier protection alone should only be considered in the event of separate inputs; if the bypass and rectifier inputs are combined, the general input protection rating (bypass + rectifier) must reflect the recommended bypass or general protection rating.

  • Page 20: Installation

    • LEGRAND Technical Assistance Center. Make sure that the unit received corresponds to the material specified on the delivery document. The UPS KEOR T EVO packaging protects the equipment against mechanical and environmental damages. For greater protection it is also wrapped in a transparent film.

  • Page 21: Unpacking Procedure

    KEOR T EVO 6.2. Unpacking Procedure Figure.6.2-1 Remove the wrap. Figure.6.2-3 Figure.6.2-2 Remove the package. Place UPS in the installation area.

  • Page 22: Installation Procedures And Instructions

    In this case, wait minimum for 2 (two) hours before powering the UPS. KEOR T EVO must be protected from voltage surge with devices that are suited to the installation; the mains voltage surge must be limited to 2kV. These protective devices must be sized to take...

  • Page 23: Power Connections Of Single Systems

    After the covers are removed, the cables shall be passed through the cable glands and attached under the terminals. After all connections done, replace the cover. Figure.6.3.1-1 Rear view of KEOR T EVO UPS Figure.6.3.1-2 Remove the cover of terminals.
  • Page 24 Figure.6.3.1-3 Power Cables Path Figure.6.3.1-4 Communication Cables Path...
  • Page 25 KEOR T EVO KEOR T EVO 10-15-20kVA (3Ph Input – 3Ph Output) Circuit Breakers Figure.6.3.1-5 Common Mains Supply Circuit Breaker Auxiliary Mains Supply Circuit Breaker Output Circuit Breaker Battery Fast Fuse Maintenance Bypass Circuit Breaker Inrush Circuit Breaker...
  • Page 26 KEOR T EVO 10-15-20kVA (3Ph Input – 3Ph Output) Connection if the MAINS and AUX Supply are connected in COMMON Figure.6.3.1-6 X5 EXTERNAL BATTERY X2 OUTPUT X1 MAINS SUPPLY PE X1/L1 X1/L2 X1/L3 X1/N X4 AUX SUPPLY X4/L1 X4/L2 X4/L3 X4/N...
  • Page 27 KEOR T EVO Connections shall be made in the following order; 6.3.1.1. Earth Connection The device shall be earthed for a safe and reliable operation. Connect the PE/ PB ground terminals before connecting any other cable. Figure.6.3.1.1-1 Input Mains Supply’s Protective Earth terminal of the UPS shall be connected to the ground with a low impedance connection.
  • Page 28 Connect the phase cables to X1 MAINS SUPPLY: X1/L1 - X1/L2 - X1/L3 terminals, the neutral to X1 MAINS SUPPLY: X1/N terminal. Cables must be protected by fuses or MCCB, refer to Section 5.4 If auxiliary supply exists, remove all bridges. When used, the residual current earth leakage protection system must be common for the two AC inputs and in- stalled upstream.
  • Page 29 Cables must be protected by fuses or MCCB, refer to Section 5.4 6.3.1.4. Battery Connection You may find more information about KEOR T EVO Models and Battery capacity in Section 5.1. Models and Dimensions. Danger of explosion and fire if the batteries of the wrong type are used.
  • Page 30 KEOR T EVO 10 1x24pcs 9Ah BATTERY WIRING DIAGRAM Figure.6.3.1.4-1...
  • Page 31 KEOR T EVO KEOR T EVO 10 1x24pcs 9Ah BATTERY WIRING DIAGRAM Figure.6.3.1.4-2...
  • Page 32 KEOR T EVO 10 1x24pcs 9Ah BATTERY WIRING DIAGRAM Figure.6.3.1.4-3...
  • Page 33 • 3 x Field-mountable Battery Fast Fuses (rating & type depending on the cabinet model) • 2.9 meters spiral for power cables for protection If battery cabinets not supplied by LEGRAND, it is the installer’s responsibility to check the electrical compatibility and the presence of appropriate protec- tion devices between the cabinet and KEOR T EVO.
  • Page 34 Unplug the cable of Thermal Sensor Board on the UPS Figure.6.3.1.4-7 Power Connection of Single Battery Cabinet Figure.6.3.1.4-8 Signal Connection of Single Battery Cabinet...
  • Page 35 Cables must be protected by fuses or MCCB, refer to Section 5.4 NEUTRAL SYSTEM : KEOR T EVO does not modify the neutral system: output neutral system is the same as input neutral system. Do not connect the output neutral to the protective ground or protective bounding (PE or PB).

  • Page 36: Power Connections Of Parallel Systems

    You may connect all 4pcs parallel UPS following these diagrams. • For power connection and block diagram; refer to Appendix-6: Description of UPS and Block Diagram. Parallel configuration must only be activated by LEGRAND UPS Technical Service Personnel.
  • Page 37 KEOR T EVO Figure.6.3.2-1 CANBUS CONNECTION OF TWO PARALLEL UPS Figure.6.3.2-2 CANBUS CONNECTION OF THREE AND UP TO MAXIMUM 4 UNITS IN PARALLEL...

  • Page 38: Human Machine Interface

    • Date • Language 2 Password protected menus for SETTINGS and COMMANDS; Password Authorizations User Password by default: 1111 Service Password: access only to LEGRAND UPS Technical Service Personnel • Options • Events Logs • Display Brightness • Output Voltage •...

  • Page 39: Colour Graphical Touchscreen

    KEOR T EVO 7.1.1. Colour Graphical Touchscreen Energy Flow Diagram/Modes Of Operation Menus are displayed on LCD. The description of the symbols in the energy flow diagram: Bypass Input: If Bypass voltage is OK and synchronizes with inverter; it lits Green, If Bypass voltage is OK and not synchronizes with inverter;...
  • Page 40 Operation Modes of UPS and Energy Flow Diagram; Online Mode: Frequency Converter Mode: Battery Mode: Bypass Mode: *Bypass Line is Orange...

  • Page 41: Ups Status Led Bar

    KEOR T EVO Eco Mode: *Bypass Line is Green Maintenance Bypass Mode: *Bypass Line is Orange and no battery charging No Operation: 7.1.2. UPS Status LED Bar Status LED Bar under the front panel gives information of current UPS status.

  • Page 42: Menu

    7.2. Menu The related sub-menus under the main Menu can be reached by touching MENU icon while main screen image is displayed. They provide information to user about the measurements, about the UPS and status of UPS. By touching Back icon you may exit from the menu. You may see the sub-menus as shown below;...

  • Page 43: Measurements Menu

    KEOR T EVO 7.2.2. Measurements Menu It provides useful measurements about the UPS and the load. You may scroll to right and left by touching right and left keys through Measurements menu. The screens of MEASUREMENTS menu are as below:...

  • Page 44: Settings Menu

    Bypass voltage (Ph-N) and frequency information of each phase are displayed. If the MAINS and AUX Supply are connected in COMMON, Rectifier and Bypass values will be the same. Rectifier voltage (Ph-N), current and frequency information of each phase are displayed. If the MAINS and AUX Supply are connected in COMMON, Rectifier and Bypass values will be the same.
  • Page 45 KEOR T EVO UPS gives audible warning when alarm occurs. Alarm voice can be disabled if requested. UPS gives audible echo when keyboard is used. Key voice can be disabled if requested. You can adjust brightness setting of LCD screen.
  • Page 46 There are 7 different alarms defined. By default one alarm is assigned to each relay; however this can be changed by the user. It is also possible to assign the same alarm to each of the 4 relays. You may set each relay via this menu.

  • Page 47: Diagnostics Menu

    KEOR T EVO You may choose the language package installed in UPS. When you touch the save icon key, a confirmation pop- up bar will appear. You should touch Yes to save the settings. Touch No to exit without saving the changes.
  • Page 48 You may see the logged events with time and date stamp. Events are stored in EEPROM using FIFO method. When you touch any event log, you may reach the details of it as you see on the side. [ Online ] Back Details 03.01.2012 21:23...

  • Page 49: About Menu

    KEOR T EVO 7.2.5. About Menu This menu provides information about the UPS itself. • UPS: UPS model and nominal power • Serial: UPS serial number • UPS output: UPS output voltage (Ph-N / Ph-Ph) and frequency • HMI version: Human Machine Interface version •...
  • Page 50 Via this menu; you may choose operation mode of UPS as Online or Eco Mode. If system is configured as Single; you may choose operation mode of UPS Online or Eco Mode. Save icon When you touch the key, a confirmation pop-up bar will appear.

  • Page 51: Communication

    KEOR T EVO 8. Communication Interface connectivity cards allow UPS to communicate in a variety of networking environments and with different type of devices. Standard and optional communication interfaces are listed below; Communication Interfaces Model (kVA) RS232 RS485 / MODBUS...

  • Page 52: Serial Communication (Rs232)

    8.1. Serial Communication (RS232) UPS is equipped with Serial Communication Communication Cable Path as standard. RS232 cable shall be shielded and shorter than 25m. RS232: DSUB-9 male connector with the following pin layout shall be used on the UPS side of the connection cable. Figure.

  • Page 53: Emergency Switching Device And Generator Connections

    KEOR T EVO 8.2. Emergency Switching Device and Generator Connections UPS can be remotely switched off and can be configured for an input supply through genset . For this purpose, there are two digitals inputs on the Interface card that can activate those functions.

  • Page 54: Dry Contacts

    8.3. Dry Contacts There are 4 dry contact sockets on the Interface Board. The relays can be programmable from Relay Functions menu (under Settings menu). “General alarm, Input failure, Battery failure, Output failure, Bypass active, Output overload, High temperature” alarms can be assigned to the contacts. Each alarm can be assigned to separate relays but also one alarm may be assigned to all relays.

  • Page 55: Rs485

    KEOR T EVO 8.4. RS485 RS485 with Modbus protocol is used in a wide range of automation systems for Industrial Process monitoring or for Building Management Systems. This communication link allows monitoring UPS status and measurements with such systems. The RS485 differential line consists of three pins: •...

  • Page 56: Operating Procedures For Single Systems

    UPS is shipped with 3pcs of battery fast fuses in a plastic package attached to the front side of UPS. After all connections are completed as described in KEOR T EVO Installation Manual, the battery fuses must be placed as shown below. The fuses’ indicators should be placed at top. Use only the fuses delivered with the UPS.

  • Page 57: Commissioning

    KEOR T EVO Do not leave the battery fuse package at the front of UPS. Otherwise the fans would be blocked and UPS may overheat. Do not close battery fuse holder F5 before starting Commissioning procedure Section 9.2 Mount the battery fast fuses into battery fuse holder on the UPS. Fast fuses indicators side must be placed upper side of the holder.

  • Page 58: Decommissioning

    The loads will be continued to be supplied directly from the mains voltage. Some parts inside the UPS including terminals are still energized during maintenance bypass operation. All the maintenance operations should be done by authorized LEGRAND UPS Technical Service Personnel. During Maintenance Bypass operation; in case any mains voltage interruption occurs, all loads supplied downstream the UPS will be de-energized.

  • Page 59: Maintenance Bypass Decommissioning Instructions

    KEOR T EVO 9.5. Maintenance Bypass Decommissioning Instructions In order to transfer the loads from Maintenance Bypass to UPS without interruption, do the following instruction respectively; Switch the auxiliary supply circuit breaker on the UPS (Q4) to “ON” position, after 30s check if fans are running.

  • Page 60: Operating Procedures For Parallel Systems

    KEOR T EVO UPS Systems are designed according to high MTBF figures with increased reliability. To increase the output power or the UPS system availability a second (or more) KEOR T EVO UPS can be connected in parallel redundant/power. Maximum of 4 identical power KEOR T EVO unit can be connected in parallel.

  • Page 61: Procedure For Commissioning And Start-Up

    KEOR T EVO 10.2. Procedure for Commissioning and Start-Up If the UPSs are not factory parallel configured; the initially started-up UPS will operate as master and the remaining UPS’s will operate as slave. According ID numbers defined for each UPS, Master and Slave messages should be observed on the LCD panel.

  • Page 62: Procedure For Decommissioning

    CAUTION: Do not try to insert its communication cable while it is operating. The Redundancy System expects to have at least one more UPS than N value. Otherwise “Redundancy Lost” it shall provide alarm. The same alarm shall also appear in case: Load % x (N+1) / N >...

  • Page 63: Troubleshooting

    Residual voltage and high temperature metal parts inside even if the UPS is disconnected. Contact may cause electric shock and burns. All operations except replacing battery fuses shall be carried out by the authorized Legrand UPS Technical Service Personnel only.

  • Page 64: Maintenance Bypass Active Alarm

    If fans failed or any other problem is identified, contact Legrand UPS Technical Service. If any other alarm occurs or if the above alarms cannot be cleared, contact Legrand UPS Technical Service. Please prepare the following information before you contact Legrand UPS Technical Service: •...

  • Page 65: Preventive Maintenance

    Performing battery test can provide you information about battery health condition, but not to avoid any risk of battery failure during mains outage. The batteries should be maintained and checked periodically by authorized LEGRAND UPS Technical Service Personnel and replaced before their end of life.

  • Page 66: Fans

    The life of fans used to cool the power circuits depends on the usage and environmental conditions (temperature, humidity, dust, pollution) Please look at Appendix-4 Technical Specifications for detailed environment conditions. Preventive maintenance and replacement before end of life shall be done by authorized LEGRAND UPS Technical Service Personnel periodically. 12.4.

  • Page 67: Appendix-1: Alarms List

    KEOR T EVO Appendix-1: Alarms List Alarms Description Bypass voltage failure Bypass voltage is out of the limit Bypass phase sequence wrong Phase sequence of bypass mains voltage is not OK Frequency of bypass voltage is beyond the frequency range for online operation or bypass voltage is out of Inverter not sync.

  • Page 68: Appendix-2: Diagnostics List

    Appendix-2: Diagnostics List Diagnostics Description Bypass active UPS is on Bypass operation. Bypass blocked Bypass is blocked by UPS Bypass disabled Bypass is disabled by user Eco mode active Eco mode is selected Battery test active Battery test is running now Battery discharging Rectifier overload and can not feed DC enough or mains failure Ambient temperature high...

  • Page 69: Appendix-3: Event List

    KEOR T EVO Appendix-3: Event List Events Description Bypass voltage ok Bypass voltage is within its limit. Inv. sync. with Byp. Frequency of bypass mains voltage synchronized with output frequency. Byp. ph. seq. ok Phase sequence of bypass mains voltages is OK.
  • Page 70 Inverter overload RMS current drawn from any of the output lines exceeds its nominal value. Bypass active UPS is on Bypass Operation. Inverter passive Inverter does not operate now. Output voltage failure Output voltage is beyond its limits Master com. lost This alarm is observed when information flow from master ups is interrupted Input voltage high Input voltage is higher than its limit.

  • Page 71: Appendix-4: Technical Specifications

    KEOR T EVO Appendix-4: Technical Specifications Tower Model (3Ph/3Ph) KEOR T EVO 10KVA KEOR T EVO 15KVA KEOR T EVO 20KVA Output Power (VA) 10.000 15.000 20.000 Nominal Active Power (W) 10.000 15.000 20.000 Rectifier Input Nominal Voltage 400V (Ph-Ph) 3Ph+N+PE...
  • Page 72 ISO 9001:2008 - ISO 14001:2004 Protection IP 20 (other IP as option) * Please contact Legrand or your local authorized distributor for optional communication interfaces. ** The manufacturer reserves the rights to change the Technical Specifications and design without notice.

  • Page 73: Appendix-5: Modbus List

    KEOR T EVO Appendix-5: Modbus List While reading data through MODBUS, the following addresses can be used. “03 - Read Holding Registers” must be selected to read the MODBUS data. We can send commands by using MODBUS. To do that function 06 – Write Single Register must be used.
  • Page 74 Also we can use addresses 127 to get the UPS status. A decimal value will be received from address 127. If that value is converted to binary number, the UPS status can be read. bit 0 UPS operates on Online Mode bit 1 UPS operates on Bypass Mode bit 2...

  • Page 75: Appendix-6: Description Of Ups And Block Diagram

    KEOR T EVO Appendix-6: Description of UPS and Block Diagram Name Definition Common Mains Supply Circuit Breaker Output Circuit Breaker Maintenance Bypass Circuit Breaker Auxiliary Mains Supply Circuit Breaker Battery Fast Fuse Inrush Circuit Breaker Rectifier Fast Fuse Inverter Fast Fuse...
  • Page 76 SEPARATED RECTIFIER AND BYPASS INPUTS FOR SINGLE UPS UNIT...
  • Page 77 KEOR T EVO COMMON RECTIFIER AND BYPASS INPUTS FOR SINGLE UPS UNIT...
  • Page 78 TWO PARALLEL UNITS 1+1 Redundant Configuration with Dual Distribution Input a1, a2: Mains Supply MCCB 4p d: Distribution MCCB b1, b2: Auxiliary Supply MCCB 4p o1, o2, unit output switch 4p NOTE : Internal Maintenance Bypass can be used when total load < single unit rating (kVA) Option o1, o2= unit output disconnect switch to enable single unit complete shut down for maintenance a, b, o should be 4poles unless TN-C distribution is used In case we have parallel system with internal transformer;...
  • Page 79 KEOR T EVO TWO PARALLEL UNITS 1+1 Redundant Configuration with Single Distribution Input a1, a2: Mains Supply MCCB 4p Distribution MCCB o1, o2, unit output switch 4p NOTE : Internal Maintenance Bypass can be used when total load < single unit rating (kVA)
  • Page 80 THREE PARALLEL UNITS N+1 Redundant Configuration with Dual Distribution Input a1, a2, a3: Mains Supply MCCB 4p b1, b2, b3: Auxiliary Supply MCCB 4p Distribution MCCB o1, o2, o3 unit output switch 4p General output switch 4p External Maintenance Bypass MCCB 4p NOTE: External Maintenance Bypass MCCB OS =...
  • Page 81 KEOR T EVO THREE PARALLEL UNITS N+1 Redundant Configuration with Single Distribution Input a1, a2, a3: Mains Supply MCCB 4p Distribution MCCB o1, o2, o3 unit output switch 4p General output switch 4p External Maintenance Bypass MCCB 4p NOTE: External Maintenance By pass MCCB...
  • Page 82 Notes...
