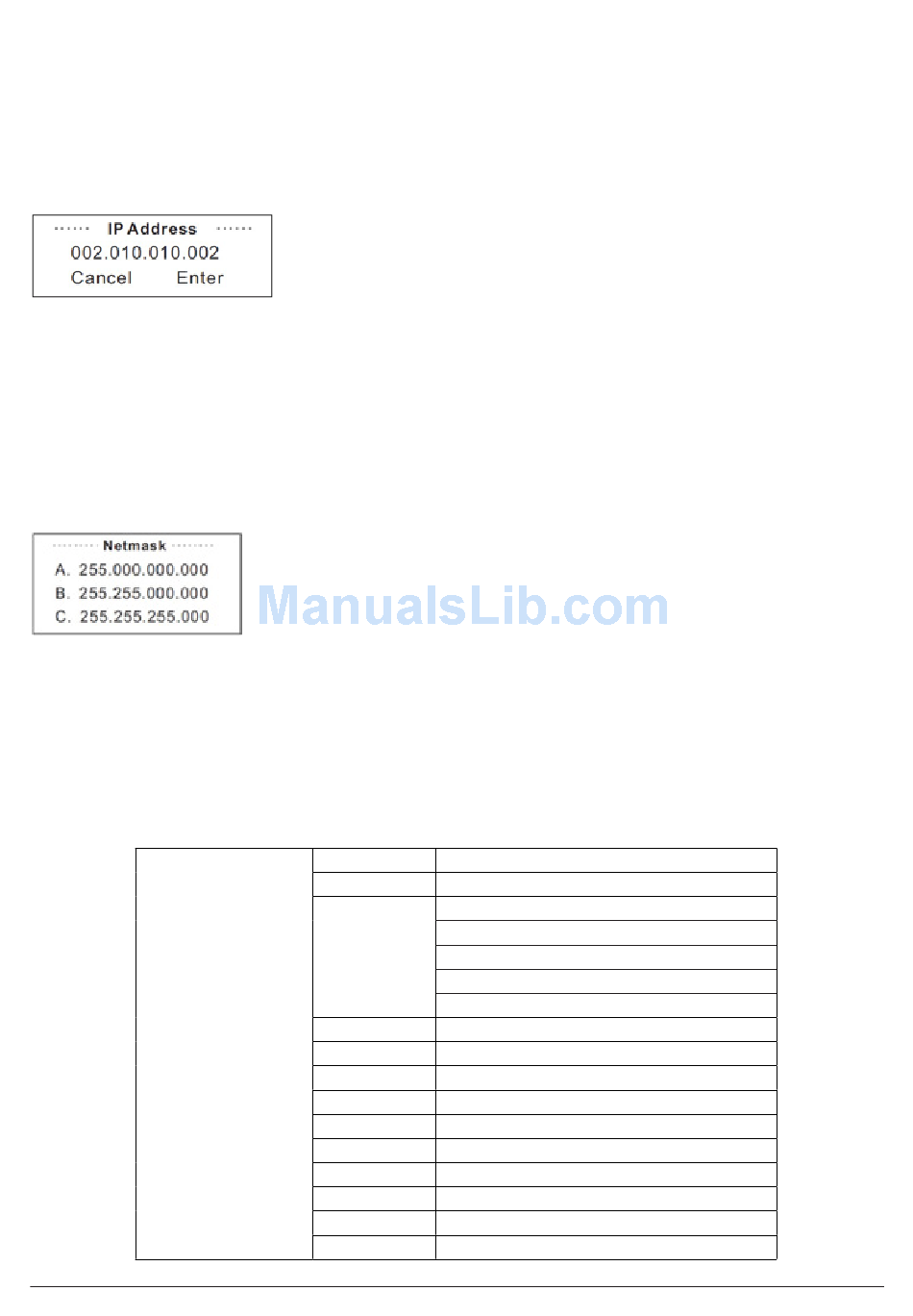

5.3 Set IP Address

Enter into the main menu by press MENU button, then press-
ing UP / DOWN to choose the Set IP Address option and then
press the ENTER to confirm your selection. Now you can set
IP address by pressing UP and DOWN . Confirm you change
and move to next option by press the ENTER and UP/DOWN.
Please note: Each of the IP address should be unique.

5.4 Set Netmask

Enter into the main menu by press MENU button, then press-
ing UP / DOWN to choose the Netmask option and then press
the ENTER to confirm your selection. Now you can set Net-
mask by pressing UP and DOWN . Confirm you change and
move to next option by pressing the ENTER and UP/DOWN.
5.5 Set DMX port
Enter into the main menu by press MENU button, then
pressing UP / DOWN to choose the DMX port X option and
then press the ENTER to confirm your selection. Then you
can set the parameter of the each port by pressing the EN-
TER and UP/DOWN.
Set DMX Port X
parameters
NAVIGATOR NODE
ENGLISH VERSION
Disp Type Decimalism or hexadecimal system
DMX Status
DMX Mode
Protocol
Framerte/fs
Network Set the DMX network parameters
Sub Network Set the DMX sub network parameters
Principal Set the first universe parameters
Secondary Set the second universe parameters
Resend
Pixel Type RGB, RGBW, RGBA, RGBD,RGBAW
Pixel Width
Pixel Height
Input, output, disable
Normal input,
backup input,
single universe data-out,
two universe data HTP-out,
two universe data LTP-out
ArtNet sACN(E1.31), KlingNet
Data out rate:10~40 f/s
Resend universe parameters
Set the pixel width
Set the pixel height
