1. Product introduction

Thank you for your purchasing our product ARTNET NODE.
To optimize the performance of this product, please read
these operating instructions carefully to familiarize yourself
with the basic knowledge of DMX. Before use this product,
please backup them in your computer, then simply connect
the LAN-cable(RJ 45) between your ARTNET NODE and your
computer, then you're ready to go!

2. Notice Information

• When unpacking, please check the unit is not damaged.
lf something wrong happens to this product, contact the
local dealer immediately.
• All rights reserved. No part of this manual included with
this product can be reproduced or transmitted in any
form, by any means or for any purpose without autho-
rized permission.
3. Warnings!
• DO NOT make any inflammable liquids, water or metal
objects enter the unit.
• Should any liquid be spilled on the unit, DISCONNECT
the power immediately.
• STOP using the unit immediately in the event of serious
operation problems and contact with your local dealer
for a check or contact us directly.
• DO NOT open the unit--there are no user serviceable
parts inside.
• NEVER try to repair the unit by yourself. Repairs by un-
qualified people could cause damage or faulty opera-
tion.
• After having removed the packaging, please check that
the unit is NOT damaged in any way. If in doubt, DON'T
use it and contact an authorized dealer.
• Packaging material (plastic bags, polystyrene foam,
nails, etc.) MUST NOT be left within children's reach, as
it can be dangerous.
• This unit must only be operated by adults. DO NOT allow
children to tamper or play with it.
• NEVER use the unit under the following conditions:
• In places subject to excessive humidity.
• In places subject to vibrations or bumps.
• In places with a temperature of over 45ºc/113 F or less
than 2ºc/35.6 F.
• Protect the unit from excessive dryness or humidity (ide-
NAVIGATOR NODE
ENGLISH VERSION
al conditions are between 35% and 80%).
• DO NOT dismantle or modify the unit privately.

4. Product Features

• 8 Universe (4096 DMX channel)
• Each universe can be in input, output and disable mode
• Each universe support DMX merge (HTP,LTP)
• 2 RJ45 port, 10M/100M/1000Mbps Auto MDI/MDIX
• Suppport DHCP and Static IP
• Protocol:Artnet sACN KlingNet
• multiple color-type in KlingNet (RGB, RGBW, RGBA,
RGBD, RGBAW)
• firmware can be updated on line
• 1U 19inch standard rack installation
• Can be acted as DMX splitter
• IP address can be set manually
• Supporting DMX-512 protocol
• DMX Output: (DMX-512 protocol control)
• 512 channels per connector,
• total 8* 3-pin XLR DMX connector
• total 512 x 8 channels

5. Menu Instructions

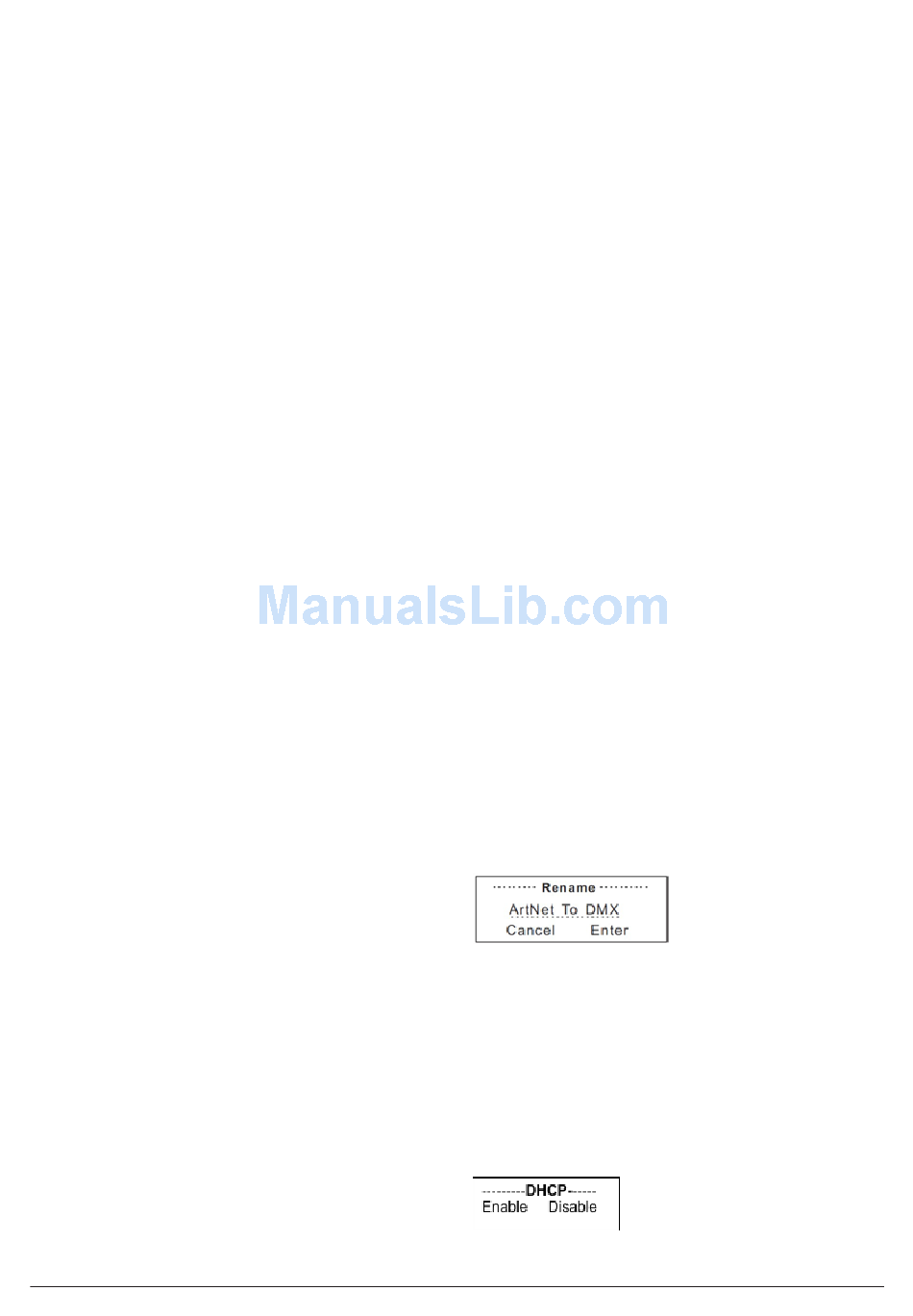

5.1 Rename
Enter into the main menu by press UP/DOWN button, then
pressing the button to choose the Rename option and then
press the ENTER button to confirm your selection. Now you
can rename the device by pressing UP and DOWN . Confirm
you change and move to next option by press the ENTER.
5.2 Set DHCP
Enter into the main menu by press UP/DOWN button, then
pressing the button to choose the Set DHCP option and then
press the ENTER button to confirm your selection. Now you
can turn on or turn off the DHCP function by pressing UP
and DOWN. Confirm you change and move to next option by
press the ENTER.
