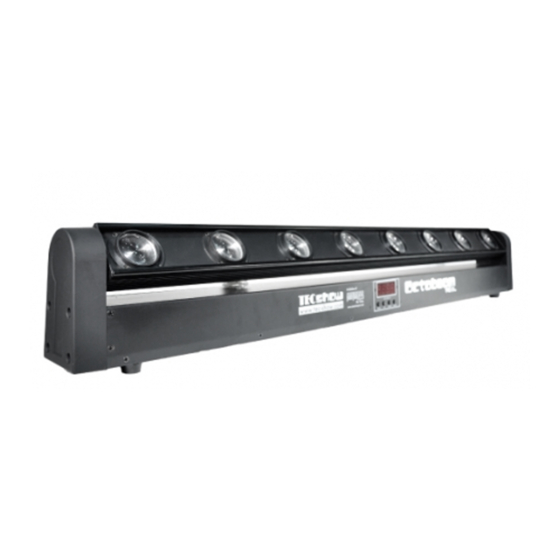

- Page 1 OCTOBEAM LED Lighting Effect USER MANUAL / MANUAL DE USUARIO PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE / POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR...
-
Page 2: Specifications
Overview • OctoBeam White is a LED Lighting Bar with movement Strobe effect: 0-18 flashes per second powered by 8 x 8W White LEDs, that features pixel by pix- • Adjustable speed el control. With its 8 Built-in programs & 12 default pixel •... -
Page 3: Operation
001—512 Key B, Key C for change the value. D001 15 Channels dip address 001—512 Key B, Key C for change the value. D000 Fade 1 01—99 Key B, Key C for change the speed P. 3 OCTOBEAM ENGLISH VERSION... - Page 4 …t f Motor turn of cw/ccw adjust, Key B and C for adjust(Ac- knowledge tacitly value is t o) O200 000-255 Adjust current of LED KeyB, C for adjust (Acknowledge tacitly value is 200)t P. 4 OCTOBEAM ENGLISH VERSION...
- Page 5 W6 Dimming Liner dimming from dark to bright Channel 13 W7 Dimming W7 Dimming Liner dimming from dark to bright Channel 14 W8 Dimming W8 Dimming Liner dimming from dark to bright Channel 15 Restore P. 5 OCTOBEAM ENGLISH VERSION...
- Page 6 131--155 Sound active 2 (Motor controlable): 156--180 Fade (Motor un-controlable)1 181--205 Chasing (Motor un-controlable) 206--230 Sound active 1 (Motor un- controlable) 231--255 Sound active 2 (Motor un-controlable) Channel 6 Speed Speed control from slow to fast Channel 7 Restore P. 6 OCTOBEAM ENGLISH VERSION...
- Page 7 P. 7 OCTOBEAM ENGLISH VERSION...
-
Page 8: Especificaciones
Descripción • Octobeam White es una barra LED con movimiento que Efecto estrobo: 0-18 flashes por segundo tiene 8 LEDs blancos de 8W que vienen con control de pix- • Velocidad ajustable el por pixel. Con sus 8 programas integrados y 12 macros •... -
Page 9: Panel De Control
10 canales. Dirección de interruptor dip (001-512) Uti- lice las teclas B y C para modificar el valor D001 15 canales. Dirección de interruptor dip (001-512) D000 Utilice las teclas B y C para modificar el valor P. 9 OCTOBEAM VERSION ESPAÑOL... - Page 10 …t f Giro hacia adelante o hacia atrás del motor Utilice las tecla B y C (referencia t o) O200 000-255 Regula el LED actual Utilice las tecla B y C (valor 200) P. 10 OCTOBEAM VERSION ESPAÑOL...
- Page 11 Dimming W6. Dimmer lineal (de oscuro a claro) Channel 13 Dimming W7 Dimming W7. Dimmer lineal (de oscuro a claro) Channel 14 Dimming W8 Dimming W8. Dimmer lineal (de oscuro a claro) Channel 15 Restaurar P. 11 OCTOBEAM VERSION ESPAÑOL...
- Page 12 131--155 Modo audiorítmico 2 (Motor regulable) 156--180 Fade (Motor no regulable) 181--205 Chasing (Motor no regulable) 206--230 Modo audiorítmico 1 (Motor no regulable) 231--255 Modo audiorítmico 2 (Motor no regulable) Channel 6 Velocidad Control de velocidad (creciente) Channel 7 Restaurar P. 12 OCTOBEAM VERSION ESPAÑOL...
- Page 13 P. 13 OCTOBEAM VERSION ESPAÑOL...
- Page 14 FOR MORE INFO ON THIS PRODUCT PLEASE CHECK TECSHOW.AMPROWEB.COM / PARA MAS INFORMACION SOBRE ESTE PRODUCTO VISITE TECSHOW.AMPROWEB.COM...
