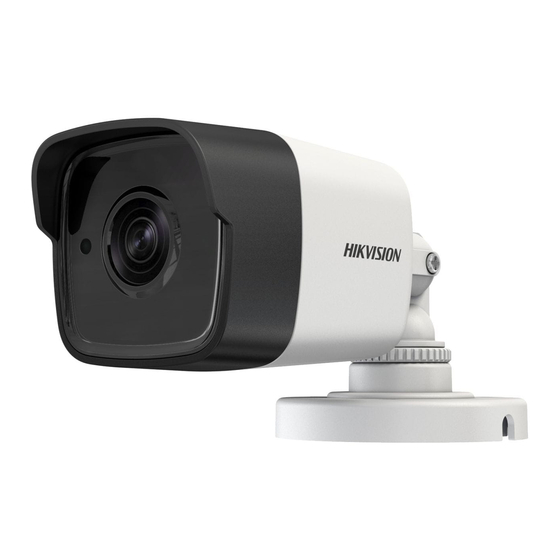

Turbo hd h5t series bullet camera

Advertisement

TURBO HD
H5T Series Bullet Camera

User Manual

UD05381B
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Type I
Camera
Type II
Camera
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.
Model
DS-2CE16H5T-IT(E)
DS-2CE16H5T-ITP(E)
DS-2CE16H5T-IT1(E)
DS-2CE16H5T-IT3(E)
DS-2CE16H5T-IT5(E)
0100001070419

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2CE16H5T-IT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HIKVISION DS-2CE16H5T-IT

  • Page 1: User Manual

    User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model DS-2CE16H5T-IT(E) Type I Camera DS-2CE16H5T-ITP(E) DS-2CE16H5T-IT1(E) Type II DS-2CE16H5T-IT3(E)
  • Page 2: Regulatory Information

    Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 4: Product Features

    1 Introduction 1.1 Product Features The camera is applicable for both indoor and outdoor conditions, and the application scenarios include road, warehouse, underground parking lot, bar, etc.. The main features are as follows: High performance CMOS sensor  Low illumination, 0.008 Lux@(F1.2, AGC ON), 0 Lux ...
  • Page 5: Installation

    2 Installation Before you start: Make sure that the device in the package is in good  condition and all the assembly parts are included. Make sure that all the related equipment is power-off  during the installation. Check the specification of the products for the ...
  • Page 6 5. Connect the corresponding power cord, and video cable. 6. Power on the camera to check whether the image on the monitor is gotten from the optimum angle. If not, adjust the camera according to the figure below to get an optimum angle. Pan Position [0°...
  • Page 7 6. Secure the junction box’s body with supplied screws on the ceiling/wall. Junction Box Body Figure 2-6 Fix the Junction Box to the Wall/Ceiling 7. Route the cables through the bottom cable hole, or the side cable hole of the junction box. 8.
  • Page 8 Figure 2-9 Fix the Camera to the Ceiling Note: The supplied screw package contains self-tapping  screws, and expansion bolts. For cement wall/ceiling, expansion bolts are  required to fix the camera. For wooden wall/ceiling, self-tapping screws are required. 5. Connect the corresponding power cord, and video cable.
  • Page 9 Figure 2-11 Install the Junction Box 6. Route the cables through the bottom cable hole, or the side cable hole of the junction box. 7. Combine the junction box cover with its body with supplied screws on the junction box’s cover. Figure 2-12 Combine the Junction Box’s Cover with its Body 8.
  • Page 10: Menu Description

    3 Menu Description Purpose: Call the menu by clicking button on the PTZ Control interface, or call preset No.95. Steps: 1. Connect the camera with the TVI DVR, and the monitor, shown as the figure 3-1. TVI DVR Camera Monitor Figure 3-1 Connection 2.
  • Page 11 Figure 3-3 OUTPUT MODE RESOLUTION Resolution refers to the number of the pixels contained in an image. You can set the resolution as 5 megapixels, 4 megapixels or 1080p. The higher the value, the finer the image is. FRAME RATE Frame rate refers to the number of image output in 1 second.
  • Page 12: Anti-Flicker

    BLC (Backlight Compensation)  BLC (Backlight Compensation) compensates light for the front object to make it clear, but this may cause the over-exposure of the background, where the light is strong. When BLC is selected as the exposure mode, the BLC level can be adjusted from 0 to 8.
  • Page 13: Video Settings

    You can turn on/off the INFRARED and set the value of SMART IR in this menu. DAY/NIGHT AUTO MODE INFRARED SMART IR BACK Figure 3-6 DAY/NIGHT INFRARED  You can turn on/off the IR LED to meet the requirements of different circumstances. SMART IR ...
  • Page 14: Save And Exit

    3.7 RESET Reset all the settings to the default. 3.8 SAVE & EXIT Move the cursor to SAVE & EXIT and click Iris+ to save the setting and exit the menu.
