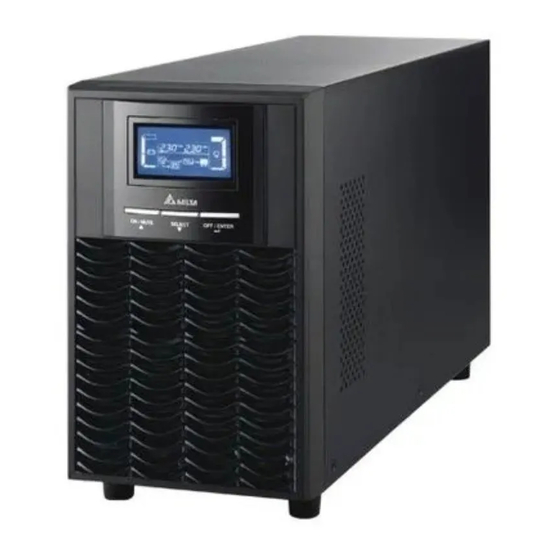

- Page 1 The power behind competitiveness Delta UPS - Amplon Family INX Series, Single Phase 1/ 2/ 3 kVA User Manual www.deltapowersolutions.com...
- Page 2 Failure to heed these instructions and warnings will void the warranty. Copyright © 2018 by Delta Electronics Inc. All Rights Reserved. All rights of this User Manual (“Manual”), including but not limited to the contents, information, and figures are solely owned and reserved by Delta Electronics Inc.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Chapter 1 : Important Safety Warnings ------------------------------- 1 Transportation ---------------------------------------------------- 1 Preparation -------------------------------------------------------- 1 Installation --------------------------------------------------------- 1 Operation ---------------------------------------------------------- 2 Maintenance, Service and Faults --------------------------- 2 Packing List ------------------------------------------------------- 3 Chapter 2 : Installation and Setup ------------------------------------- 4 Rear Panel View ------------------------------------------------- 4 Operating principle ---------------------------------------------- 6 Setup the UPS --------------------------------------------------- 6... -
Page 4: Chapter 1 : Important Safety Warnings
Chapter 1 : Important Safety Warnings Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully. -
Page 5: Operation
Chapter 1 Important Safety Warnings proof outlet). Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS system. When installing the equipment, it should ensure that the sum of the leakage cur- rent of the UPS and the connected devices does not exceed 3.5mA. 1.4 Operation Do not disconnect the mains cable on the UPS system or the building wiring outlet (shockproof socket outlet) during operations since this would cancel the... -
Page 6: Packing List
Batteries may cause electric shock and have a high short-circuit current. Please take the precautionary measures specified below and any other measures nec- essary when working with batteries: - remove wristwatches, rings and other metal objects - use only tools with insulated grips and handles. When changing batteries, install the same number and same type of batteries. -
Page 7: Chapter 2 : Installation And Setup
Chapter 2 Installation and Setup Chapter 2 : Installation and Setup NOTE : Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. 2.1 Rear Panel View Standard Runtime Model 3 kVA... - Page 8 Extended Runtime Model 1 kVA 2 kVA 3 kVA Item AC input Input circuit breaker USB port RS-232 port Mini slot Output socket External battery connector Output terminal Amplon INX Series...
-
Page 9: Operating Principle
Chapter 2 Installation and Setup 2.2 Operating principle The operating principle of the UPS is shown as below 2.3 Setup the UPS Step 1: Connect battery wires If UPS is extended runtime model, please connect external batteries as below chart. Please refer to below chart to secure battery cable to the terminal with supplied screws and nuts. - Page 10 Step 2: UPS input connection Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords. The power cord is attached to the UPS. For the type of power cord, please refer to the table below. Type of Power Cord 1kVA Plug 10A INDIA Standard Runtime...
- Page 11 Chapter 2 Installation and Setup Step 4: Communication connection USB port Mini slot RS-232 port To allow for unattended UPS shutdown/ start-up and status monitoring, connect the communication cable one end to the USB/ RS-232 port and the other to the communication port of your PC.
-
Page 12: Battery Replacement
Step 6: Install software For optimal computer system protection, install UPS monitoring software to fully configure UPS shutdown. Please download the software from http://www.deltapowersolutions.com/en/mcis/software-center.php. 2.4 Battery Replacement WARNING : 1. This rack UPS is equipped with internal batteries and user can replace the batteries without shutting down the UPS or connected loads (hot- swappable battery design). -
Page 13: Chapter 3 : Operation
Chapter 3 Operation Chapter 3 : Operation 3.1 Button Operation ON / MUTE SELECT OFF / ENTER Button Function Turn on the UPS: Press and hold the ON/ MUTE button for at least 2 seconds to turn on the UPS. Mute the alarm: When the UPS is in battery mode, press and hold this button for at least 5 seconds to disable or enable the alarm system. -
Page 14: Lcd Panel
Button Function Confirm selection key: Press this button to confirm selection in UPS setting mode. Switch LCD message: Press this button to change the LCD message for input voltage, input frequency, battery voltage, out- put voltage and output frequency. It will return back to default display when pausing for 10 seconds. - Page 15 Chapter 3 Operation Display Function Remaining backup time information Indicates the remaining backup time in pie chart. Indicates the remaining backup time in numbers. H: hour, M: minute, S: second Fault information Indicates that the warning and fault occurs. Indicates the warning and fault codes, and the codes are listed in details in 3.7 UPS Setting.
-
Page 16: Audible Alarm
Display Function Indicates the ECO mode is enabled. Indicates the inverter circuit is working. Indicates the output is working. Battery information Indicates the battery level by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates the battery is fault. Indicates low battery level and low battery voltage. Input &... -
Page 17: Lcd Display Wordings Index
Chapter 3 Operation 3.4 LCD Display Wordings Index Abbreviation Display Content Meaning Enable Disable Escape High loss Low loss Battery Converter Temperature Charger Bypass frequency unstable EEPROM error... -
Page 18: Ups Setting
3.5 UPS Setting There are three parameters to set up the UPS. Parameter 1 Parameter 2 Parameter 3 Parameter 1: It’s for program alternatives. Refer to below table. Parameter 2 and Parameter 3 are the setting options or values for each program. 01: Output voltage setting Parameter 3: Output voltage For 200/208/220/230/240 VAC models, you may choose the following output... - Page 19 Chapter 3 Operation 02: Frequency converter enable/ disable Parameter 2 & 3: Enable or disable converter mode. You may choose the following two options. CF ENA: converter mode enable CF DIS: converter mode disable (Default) 03: Output frequency setting Parameter 2 & 3: Output frequency setting. You may set the initial frequency in battery mode.
- Page 20 04: ECO enable/ disable Parameter 3: Enable or disable ECO function. You may choose the following two options. ENA: ECO mode enable DIS: ECO mode disable (Default) 05: ECO voltage range setting Parameter 2 & 3: Set the acceptable high voltage point and low voltage point for ECO mode by pressing the Down key or Up key.
- Page 21 Chapter 3 Operation 06: Bypass enable/ disable when the UPS is off Parameter 3: Enable or disable bypass function. You may choose the following two options. ENA: Bypass enable DIS: Bypass disable (Default) 07: Bypass voltage range setting Parameter 2 & 3: Set the acceptable high voltage point and acceptable low voltage point for bypass mode by pressing the Down key or Up key.
- Page 22 08: Autonomy limitation setting Parameter 3: Set up backup time in battery mode for general outlets. 0 ~ 999: setting the backup time in minutes from 0 ~ 999 for general outlets in battery mode. 0: When setting as “0”, the backup time will be only 10 seconds. 999: When setting as “999”, the backup time setting will be disabled (Default).
-
Page 23: Operating Mode Description
Chapter 3 Operation 00: Exit Setting Exit the setting mode. Operating Mode Description Online Mode When the input voltage is within acceptable range, the UPS will provide pure and stable AC power to output. The UPS will also charge the battery in online mode. ECO Mode Energy saving mode: When the input voltage is within... -
Page 24: Faults Reference Code
Battery Mode W h e n t h e i n p u t v o l t a g e i s beyond the acceptable range or power failure occurs, the UPS will backup power from batter- ies and the alarm is sounding every 4 seconds. -
Page 25: Warning Indicator
Chapter 3 Operation Fault Event Fault Code Icon Battery voltage too high Battery voltage too low Over temperature Overload Charger failure 3.8 Warning Indicator Warning Icon (flashing) Alarm Low battery Sounding every second Overload Sounding twice every second Battery is not connected Sounding every second Over charge Sounding every second... -
Page 26: Chapter 4 : Troubleshooting
Chapter 4 : Troubleshooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible Cause Remedy No indication and alarm The AC input power is not Check if the input even though the mains connected well. - Page 27 Chapter 4 Troubleshooting Symptom Possible Cause Remedy Fault code is shown as The UPS shuts down auto- Remove excess loads 43 and the icon matically because of over- from the UPS output lighting on the LCD load at the UPS output. and restart it.
-
Page 28: Chapter 5 : Storage And Maintenance
Chapter 5 : Storage and Maintenance Operation The UPS system contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer. Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material. -
Page 29: Chapter 6 : Technical Specifications
Chapter 6 Technical Specifications Chapter 6 : Technical Specifications Model Capacity 1000 VA / 800 W 2000 VA / 1600 W 3000 VA / 2400 W Input Voltage Range 110-300Vac* Frequency Range 40Hz ~ 70Hz Phase Single phase with ground Power Factor ≧... - Page 30 Model Battery Battery Type 12 V / 9 AH 12 V / 9 AH 12 V / 9 AH Standard Runtime Model: 2/4/6 ; Numbers Extended Runtime Model: 3/6/6 Standard Runtime Model: 4 hours recover to 90% Recharge Time capacity (Typical) ; Extended Runtime Model: Depends on the batteries attached Standard Runtime Model: 1A ;...
-
Page 31: Chapter 7 : Warranty
Chapter 7 Warranty Chapter 7 : Warranty Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship within the warranty period. If the product has any failure problem within the warranty period, Seller will repair or replace the product at its sole discretion according to the failure situation.
