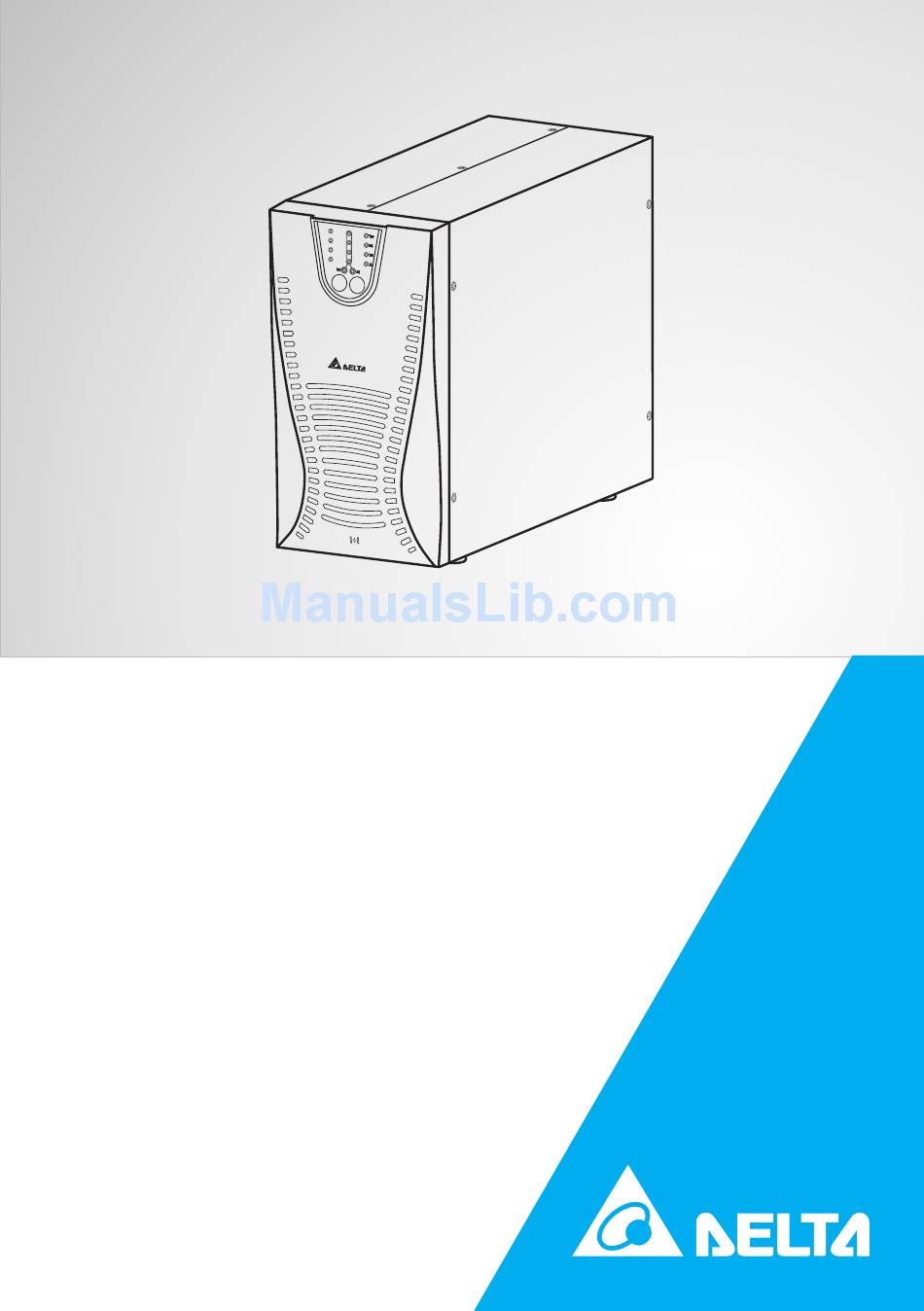

- Page 1 LIN E 100 % LIN E BY PA SS BA TT. O FF The power behind competitiveness Delta UPS - Amplon Family E Series, Single Phase 1/2/3 kVA User Manual www.deltapowersolutions.com...
- Page 2 Failure to heed these instructions and warnings will void the warranty. Copyright © 2011 by Delta Electronics Inc. All Rights Reserved. All rights of this User Manual (“Manual”), including but not limited to the contents, infor- mation, and figures are solely owned and reserved by Delta Electronics Inc.
-
Page 3: Table Of Contents
Table of Contents IMPORTANT SAFETY INSTRUCTIONS .................1 Safety Instructions ....................1 Annotation and Symbol.....................2 CHAPTER 1 INTRODUCTION ..................3 1-1 Initial Inspection....................3 1-2 Placement......................3 1-3 About UPS Operation ..................4 1-4 Features ......................5 CHAPTER 2 OPERATION....................6 2-1 Front Panel ......................6 2-2 Operation Panel....................6 2-3 Rear Panel......................8 CHAPTER 3 INSTALLATION ..................9 3-1 Installation ......................9... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. Before installing and starting up the UPS, carefully read this manual and preserve this manual for future reference. Safety Instructions The UPS contains voltages which are potentially hazardous. -
Page 5: Annotation And Symbol
Annotation and Symbol The following two signs shown in the manual indicate important instructions to be followed. Read before Operation Maybe Dangerous/Follow Instructions Protective grounding terminal: A terminal which must be connected to earth ground prior to making any other connection to the equipment. This symbol indicates the word “phase”. -
Page 6: Chapter 1 Introduction
CHAPTER 1 INTRODUCTION 1-1 Initial Inspection z Read this user manual before installing the UPS. z Before unpacking the UPS, check the packing box. If there is any visible damage, contact your dealer at once. - This unit is to operate by any individuals with previous training. - This unit should be installed by qualified service personnel. -
Page 7: About Ups Operation
1-3 About UPS Operation The main topology of the UPS consists of bypass path, AC-DC converter, DC-AC inverter, battery charger, DC-DC converter, control circuit and detection circuit. Moreover, the intelligent power management software is also optional. The function and efficiency are superior to the traditional UPS. -
Page 8: Features
1-4 Features The UPS, which is available in 1KVA, 2KVA and 3KVA, is an advanced on-line UPS providing reliable and consistent sine wave power quality to vital equipment. It supports personal computers, networks, servers, telecommunication equipment and a variety of other facilities. With its outstanding protection features, the unit keeps your applications safe and running smoothly at all times. -
Page 9: Chapter 2 Operation
CHAPTER 2 OPERATION 2-1 Front Panel 100% LINE LINE BYPASS BATT. Fig 2-1 Front Panel for 1KVA, 2KVA and 3KVA 2-2 Operation Panel 100% LINE LINE BYPASS BATT. B.10 B.11 Fig 2-2 Operation Panel... - Page 10 A. Button : In “ON-LINE Mode”, when the battery capacity is larger than 95%, press the ON button to start up the UPS. In backup mode, this button can silence the buzzer. : Press the OFF button to shut down the UPS. B.
-
Page 11: Rear Panel
2-3 Rear Panel The rear panel is described as below. (Refer to Fig. 2-3.) Fig. 2-3.1 (1KVA) Fig. 2-3.2 (2KVA / 3KVA) 1. RS232: The communication port is used for communication between PC and UPS. For more detailed information, refer to Chapter 7. 2. -
Page 12: Chapter 3 Installation
CHAPTER 3 INSTALLATION 3-1 Installation Note: - AC output needs a disconnect device (such as a breaker) which has to be provided by others. - The wire length of output power cord connected to the output receptacle or pressure terminal should be less then 10 meters. - Page 13 3. Connecting the Battery Pack Utilize the battery connection cable packed with the battery pack. Connect one end of the cable to the external battery connector of UPS, and the other end to the one of the battery pack. After connecting the battery pack, be sure to re-cover battery cover on terminal for UPS and battery pack as well.
- Page 14 UPS Connection for 1KVA (See Fig.3-3.1): (1) Connects to RS232 cable. (2) Provides power to PC. (3) Connects to utility power. Fig. 3-3.1 UPS Connection for 2KVA or 3KVA (See Fig.3-3. 2): (1) Connects to RS232 cable. (2) Provides power to PC. (3) Connects to utility power.
-
Page 15: Chapter 4 Operation
CHAPTER 4 OPERATION 4-1 Cold Start When the Utility is Not Present Even if there is no utility power but battery pack, you can still start up the UPS. Press and hold the ON button for 2~4 seconds, then you will hear a “beep” sound that means the UPS will start up. The battery LED and on-battery LED will light on and the UPS will operate in “ON-BATTERY Mode”. -
Page 16: Ups Self Test
4-4 UPS Self Test When the UPS is in “ON-LINE Mode” and battery capacity is larger than 95%, pressing the ON button will make the UPS transfer to “ON-BATTERY Mode” and automatically perform a self test for about 10 seconds (See Fig. 4-3.). The self-test function will check the condition of the battery. If the UPS passes the self-test, it will return to “ON- LINE Mode”. -
Page 17: Abnormal Condition
4-7 Abnormal Condition If certain abnormal condition occurs, the UPS will send the following messages. ON-BATTERY Mode: When the UPS is in “ON-BATTERY Mode”, the on- battery LED will light on and the buzzer will beep for half seconds every 2 seconds. Then, the UPS will start supplying power to the load through batteries. - Page 18 BATTERY LOW: This function is to inform users the remaining power capacity of the batteries. When batteries reach a low level condition, the UPS alarm will beep for half seconds every 1.25 seconds until running out of battery capacity. See Fig. 4-7. 100% LINE LINE...
-
Page 19: Ups Internal Fault
4-8 UPS Internal Fault If the following conditions occur, the UPS fails. At this time the UPS will transfer to “BYPASS Mode”. The bypass LED and fault LED will light on and alarm continuously. If the utility is too low or too high, the UPS output will be disabled. -
Page 20: Chapter 5 Maintenance
CHAPTER 5 MAINTENANCE To replace batteries, contact your qualified service personnel. If the UPS has not been used for a period of time, the batteries will discharge slightly. It is recommended that you should charge the UPS once every 3 months. Use a vacuum cleaner to clean out all the dust that may rest on the opening of the fan. -
Page 21: Chapter 6 Troubleshooting
CHAPTER 6 TROUBLESHOOTING Problem Possible Cause Solution Press the ON button to start up the UPS. The ON button is not pressed. (Refer to description of “Start Up the UPS” in Chapter 4.) Battery low shut down and utility is UPS is not turned Waiting for line recovery. -
Page 22: Chapter 7 Communication Interface
CHAPTER 7 COMMUNICATION INTERFACE The UPS provides RS232 protocols in one D-sub 9 connector. Using proper UPS management software and cable can manage the UPS over an IP network (LAN/intranet/internet). To download the UPS management software, please go to http://59.125.232.140. The pin assignment of the D-sub 9 connector is defined as below. -
Page 23: Chapter 8 Select The Installation Of The Fittings
CHAPTER 8 SELECT THE INSTALLATION OF THE FITTINGS 8-1 Installation Procedures for Mini SNMP/Relay/USB Card in 1KVA MODEL 1. Remove the Smart slot cover without hole from rear panel. 2. Remove the left cover. 3. Take out the Mini SNMP / Relay / USB Card from packing box, then install the flat cable assembly on card. - Page 24 8-3 Installation Procedures for Mini SNMP/Relay/USB Card in 2/3KVA MODEL Remove the Smart slot cover without hole from rear panel. Remove the left cover. Take out the Mini SNMP/Relay/USB card from packing box, then install the flat cable assembly on card. Insert the Mini SNMP/Relay/USB card with flat cable assembly in the hole, then pull the other connector of flat cable assembly to insert it in the connector of control board’s CN7.
-
Page 25: Technical Specifications
TECHNICAL SPECIFICATIONS Model 1KVA 2KVA 3KVA Capacity 1KVA/700W 2KVA/1400W 3KVA/2100W Rated Voltage 230V 176V a 280V(Full Load) Voltage Range 80V~176V(100% to 50% Load de-rating Linearly) Input Frequency 50/60Hz (±5.0 Hz) Power Factor (0.97 Voltage 230V Frequency 50/60Hz Voltage Regulation Frequency Accuracy +0.05 Hz Wave Form Pure Sine Wave... - Page 26 Warranty Seller warrants this product, if used in accordance with all applicable instruc- tions, to be free from original defects in material and workmanship within the warranty period. If the product has any failure problem within the warranty pe- riod, Seller will repair or replace the product at its sole discretion according to the failure situation.
