Delta Electronics 7KVA User Manual

J-series 11kva (1:1),11kva (3:1)
Hide thumbs
Table of Contents

Advertisement

Quick Links

SHEET 1 TO 2

Advertisement

Table of Contents
loading

Related Manuals for Delta Electronics 7KVA

Summary of Contents for Delta Electronics 7KVA

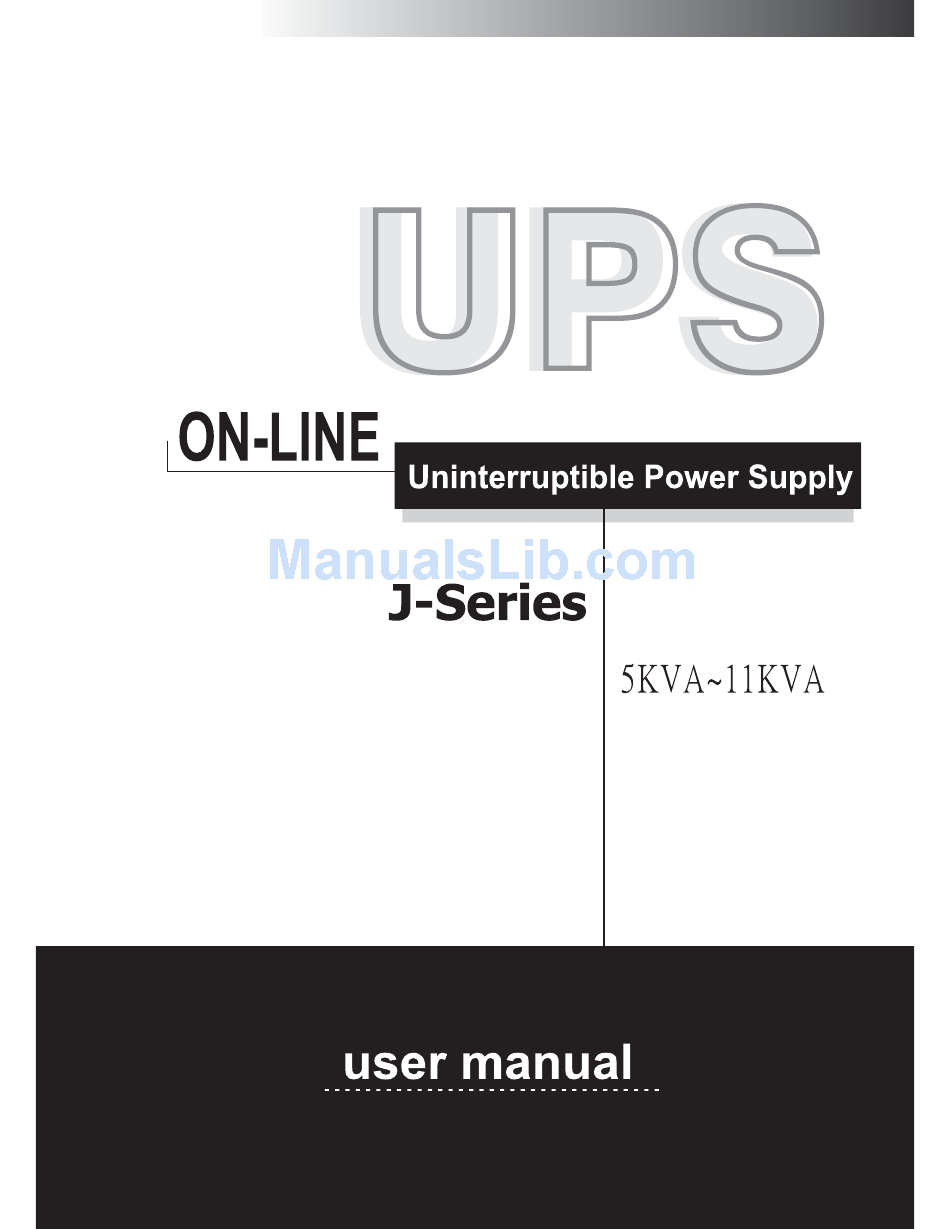

  • Page 1 SHEET 1 TO 2...

  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS ........1 INTRODUCTION................. 3 Functions and features............3 The explanation of the front control panel ......4 The explanation of the rear control panel ......5 TECHNICAL DATA ..............8 Battery run time table .............11 INSTALLATION ................ 13 Delivery ................

  • Page 3: Important Safety Instructions

    1. IMPORTANT SAFETY INSTRUCTIONS This manual contains important instructions for the unit that should be followed during installation and maintenance of the UPS and batteries. Install the on-line UPS in a well ventilated area, away from flammable liquids and gases. Do not let the unit come in contact with water.
  • Page 4 * Remove watches, rings or other metal objects. * Use only tools with insulated handles. The compliance with the following standards provides the conformity: UL 1778 CSA 22.2-107 FCC CLASS A EN 50091-1-1 EN 50091-2 CLASS A IEEE-C6241 Category B IEC 1000-2-2 EN 61000-4-2 LEVEL3 EN 61000-4-3 LEVEL3...

  • Page 5: Introduction

    2. INTRODUCTION FUNCTIONS AND FEATURES True ON-LINE design ups will perform without any interruption of power to your sensitive electronic equipment at all times. Wide input voltage (120~280Vac) reduces battery discharges. Smart charger design: It can auto boost charge to shorten charge time. RS-232 and Dry contact status select smart 2000 can to come true the UPS management for short distance and long range.

  • Page 6: The Explanation Of The Front Control Panel

    THE EXPLANATION OF THE FRONT CONTROL PANEL NORMAL BATTERY BYPASS FAULT FRONT CONTROL PANEL 1. INVERTER ON BUTTON Press “ON” key 1~3 seconds will start inverter and press “ON” key more than 3 seconds to remove alarm. 2. INVERTER OFF BUTTON Press “OFF”...

  • Page 7: The Explanation Of The Rear Control Panel

    REFER TO USER'S MANUAL FOR TORQUING SPECIFICATIONS. USE COPPER CONDUCTORS ONLY. AC OUTPUT AC INPUT 200/208/ 200/208/ 220/230/240V 220/230/240V 50/60HZ 50/60HZ RS-232 DRY CONTACT 5/ 7KVA (Europe models) CHARGE CURRENT MANUAL BYPASS SNMP EXTERNAL BATTERY INPUT 240VDC AC INPUT BYPASS CAUTION: BREAKER...
  • Page 8 UNDER LOAD REFER TO USER'S MANUAL FOR L2(N) L2(N) TORQ UING SPECIFICATIONS. USE COPPER CONDUCTORS ONLY. AC OUTPUT AC INPUT 200/208/ 200/208/ 220/230/240V 220/230/240V 50/60HZ 50/60HZ RS-232 RS-232 DRY CONTACT DRY CONTACT 7KVA /9KVA/ 11KVA (USA models) SHEET 8 TO 9...
  • Page 9 THE EXPLANATION OF THE REAR CONTROL PANEL (1). MANUAL BYPASS SWITCH: TO CHANGE POWER OF LOADING FROM STATIC BYPASS TO DIRECTIVE BYPASS, UNDER MAINTAINING UPS WITHOUT ANY INTERRUPTION OF POWER. (2). INPUT TERMINALS: TO CONNECT THE AC MAIN POWER INPUT. (3).

  • Page 10: Technical Data

    3. TECHNICAL DATA 11KVA 11KVA MODEL 5KVA 7KVA 9KVA (1:1) (3:1) 1. POWER 1.1 POWER (VA) 5000VA 7000VA 9000VA 11000VA 11000VA 1.2 POWER (W) 4000W 4900W 6600W 8000W 7700W 2. WAVE SINEWAVE 3. INPUT 120~166 120~156(70% 100% Load Linear) (60% 100% Load 3.1 INPUT VOLTAGE...
  • Page 11 11KVA 11KVA 5KVA 7KVA 9KVA MODEL (1:1) (3:1) 5. BATTERY & CHARGER 5.1 TYPES Sealed Lead Acid 12V battery x 20 PCS 5.2 NUMBER OF BATTERY 30A/ 600V x 2pcs FUSE 5.3 PROTECTION Floating 274 VDC/ Boost 280VDC 5.4 RECHARGE VOLTAGE 5.5 RECHARGE CURRENT...
  • Page 12 11KVA 11KVA MODEL 5KVA 7KVA 9KVA (1:1) (3:1) 8. COMMUNICATIONS 8.1 RS-232 REFER TO CHAPTER 6 8.2 DRY CONTACT REFER TO CHAPTER 6 8.3 SNMP FUNCTION REFER TO CHAPTER 6 8.4 REMOTE EMERGERCY POWER OFF REFER TO CHAPTER 6 9. CONNECTION 65A/ 250V 9.1 INPUT TERMINAL BLOCK...

  • Page 13: Battery Run Time Table

    Battery Run Time Table J 11K 8000Watts/ 11000VA 800W 1600W 2400W 3200W 4000W 4800W 5600W 6400W 7200W 8000W BBR120920*1 BBR120920*2 BBR120920*3 BBR120920*4 BBR120920*5 BBR120920*6 BBR120920*7 BBR120920*8 BBR120920*9 1013 BBR120920*10 1153 J 11K 7700Watts/ 11000VA 770W 1540W 2310W 3080W 3850W 4620W 5390W 6160W 6930W...
  • Page 14 Battery Run Time Table J 7K 4900 Watts/ 7000VA 490W 980W 1470W 1960W 2450W 2940W 3430W 3920W 4410W 4900W BBR120720*1 BBR120720*2 BBR120720*3 BBR120720*4 BBR120720*5 BBR120720*6 BBR120720*7 1078 BBR120720*8 1210 BBR120720*9 1428 1650 BBR120720*10 J 5K 4000 Watts/ 5000VA 400W 800W 1200W 1600W 2000W...

  • Page 15: Installation

    4. INSTALLATION DELIVERY Check condition of equipment on delivery. Contact the supplier and carrier immediately if the packaging or unit is damaged. INITIAL INSPECTION Unpack the UPS carefully, notice the packing method, and retain the box and packing material. (If you must return the UPS at any time, repack it how it was originally shipped.) Visually inspect the UPS for damage which may have occurred during shipment.

  • Page 16: Selection Of Cables

    SELECTION OF CABLES: Cable cross-sections depend on carried current: Current carried: RATED INPUT RATED OUTPUT CONNECTOR WIRES MODEL CONNECTOR WIRES 5/ 7 KVA 8AWG or 8mm 8AWG or 8mm 9/ 11 KVA 6AWG or 14mm 6AWG or 14mm SELECTION OF CONDUIT AND BUSHING: In accordance with National Electrical Code, please install all the wiring with suitable conduit and bushing.
  • Page 17 INPUT AND OUTPUT CONNECTION: When connecting the cable, please notice that: 1. Before connecting, turn off the UPS and cut off not merely the AC source but also the battery. 2. Ensure the cable is fitted. The minimum tightening torque shall not be less than 35 lbs with a cable sleeve & secured by the connector clamp.
  • Page 18 (B) US model OUTPUT INPUT Connect to L2(N) L2(N) EARTH 200Vac 208Vac Rectifire Input 220Vac 230Vac 240Vac SHEET 18 TO 19...

  • Page 19: Operation

    5. OPERATION INVERTER ON/OFF INVERTER ON: Turn on the AC input, load will energize. When the AC input is normal, press the inverter switch “ON” key 1~3 seconds. When the AC input is failure, press the switch “ON” key for more than 3 seconds to turn on inverter from battery.
  • Page 20 SELF-TEST MODE AC START BATTERY START DIAGNOSTIC MODE DIAGNOSTIC MODE FREQ OUT=XXHz FREQ OUT=XXHz DIAGNOSTIC MODE DIAGNOSTIC MODE INPUT AC BAD! INPUT AC OK! DIAGNOSTIC MODE DIAGNOSTIC MODE BATTERY OK! BATTERY OK! DIAGNOSTIC MODE DIAGNOSTIC MODE CHARGER OK! AC / DC OK! DIAGNOSTIC MODE DIAGNOSTIC MODE AC / DC OK!

  • Page 21: Lcd Function Select Switch

    BATT = XXXV XXX% BATT = XXXV XXX% PRESS SELECT KEY PRESS SELECT KEY O N BATTERY ON LINE M ODE CHRG =XXXV OFF CHRG=XXXV FLOAT(BOOST) PRESS SELECT KEY PRESS SELECT KEY 5KVA & 7KVA & 9KVA & 11KVA SHEET 21TO 22...
  • Page 22 LCD FUNCTION SELECT SWITCH PRESS THE SELECT KEY ON FRONT PANEL ONCE TO SHOW DIFFERENT POWER READING ON LCD. OPERATION ON THE BYPASS MODE OPERATION ON THE ECONOMIC MODE ECONOMY MODE BYPASS MODE LOAD = XXX% X.XXKW LOAD = XXX% X.XXKW ECONOMY MODE BYPASS MODE BYPS = XXXV XX.XHz...

  • Page 23: Parameter Set-Up Mode

    PARAMETER SET-UP MODE The same time push down both up(↑) and down(↓) key 3 seconds, UPS will enter to set-up mode： SET-UP MODE UPS SET-UP EXIT ENTER OUTPUT VOLTAGE OUTPUT VAC=200V SCROLL SELECT SCROLL SELECT Select output voltage Retrun to set n t al OUTPUT VAC=208V SCROLL SELECT...

  • Page 24: Operation On Bypass Voltage

    OPERATION ON BYPASS VOLTAGE BEYOND ALLOWABLE RANGE The UPS can auto-detect the bypass mode voltage. The protection range is +15%~-20%. When bypass voltage is beyond protection range, UPS will no output power to the load. The message in fig.4-1 will be shown on the LCD. NO OUTPUT Bypass voltage is too high more than 115% rating voltage;...

  • Page 25: Verifying The Battery Condition

    VERIFYING THE BATTERY CONDITION The statuses of battery are as shown below: Battery Condition Buzzer of Back-up Status LCD display FULL ON BATTERY BEEP/ 2sec BATT=XXXV XXX% LOW BATTERY BEEP/ 0.5sec SHUTDOWN IMMINENT BATTERY UNDER! UNDER LONG BEEP SHUT DOWN… OPERATION OF MANUAL BYPASS SWITCH The manual bypass switch is used for maintenance.

  • Page 26: Communication Interface

    6. COMMUNICATION INTERFACE RS-232 INTERFACE A 9-pin female SUB-D connector is provided on the UPS’s rear panel to provide signals of the UPS to the computer. Using the DELTA Smart 2000 software, the user can check the power status. The detail signals are as follows: Pin assignment: Load level...

  • Page 27: Remote Emergency Power Off

    REMOTE EMERGENCY POWER OFF Pin assignment of RJ-11: If short pin(2, 3) or pin(2, 5) or pin( 4, 5) or pin(4, 3), then the UPS will be powered off. NOTE: This port must not intend to connect to the Telecom. Port. SNMP CARD SNMP network interface is a powerful tool to make you remotely control and monitor UPS.
  • Page 28 P/N:5011316802 SHEET 28 TO END...
