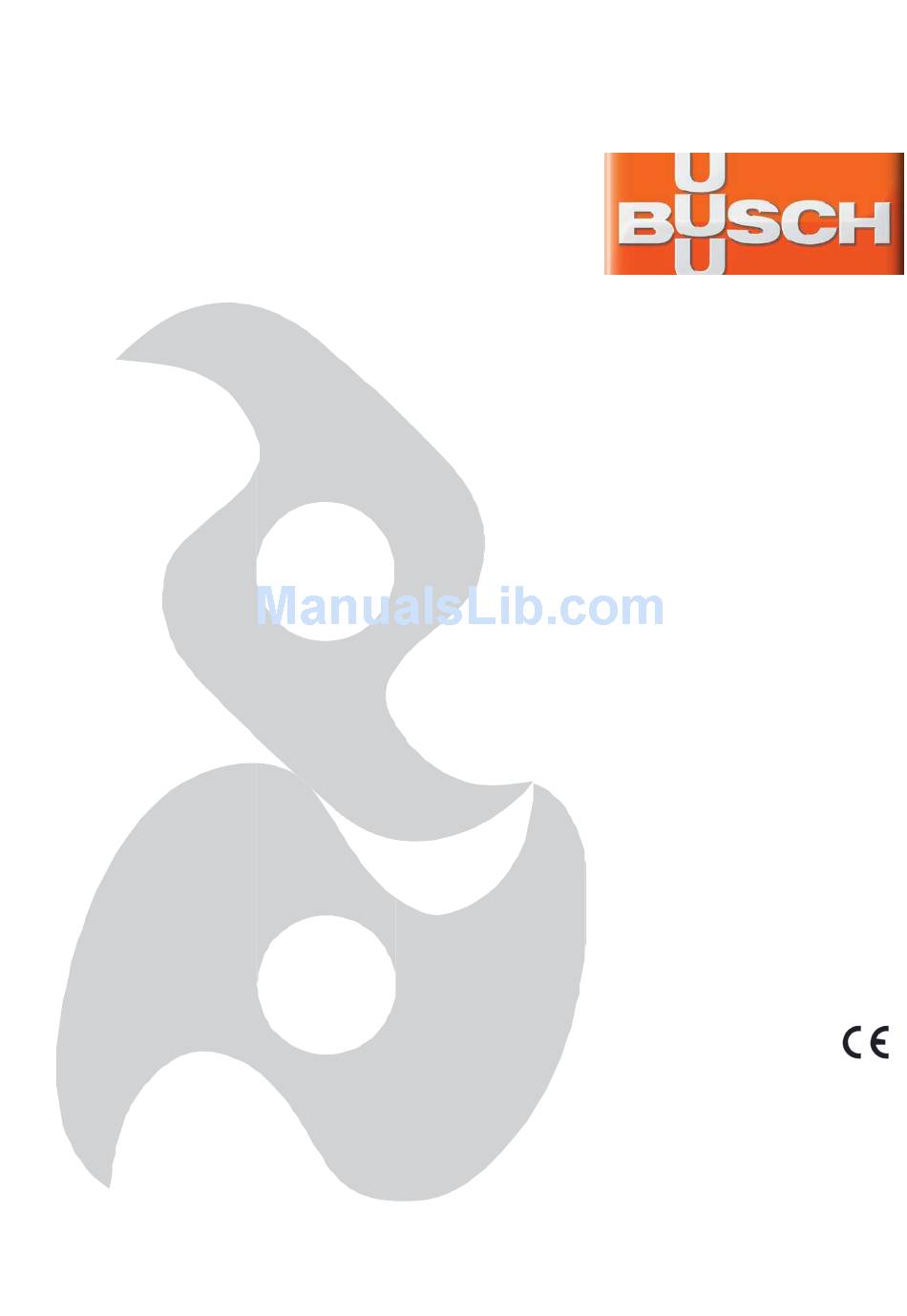

Installation and Operating Instructions Compressors Mink MI 1502 Busch Produktions GmbH Schauinslandstr. 1 79689 Maulburg Germany 0870152627 / 101117 / Original instructions / Modifications reserved... -
Page 2: Table Of Contents
Technichal Data ......15 Busch – All over the World in Industry ....16... -
Page 3: Product Description
(Ú page 7: Conveying compressor is to be provided in the course of installation. Condensable Vapours). Conveyance of other vapours shall be agreed upon with Busch. Conveyance of water or other liquids in Safety liquid phase increases the power consumption and shall therefore be avoided (risk of drive overload). -
Page 4: Safety Notes
Risk of damage to the hearing. VCI-products may attack the surfaces of plastics and elastomers. Seek advice from your local packaging dealer! Busch uses CORTEC Persons staying in the vicinity of a non noise insulated compressor VCI 126 R film for the overseas packaging of large equipment. -
Page 5: Mounting Position And Space
2006/42/EC are complied with (in the responsibility of the de- the compressor. Seek advice from your Busch representative! signer of the machinery into which the compressor is to be Version “Aqua”, if very humid process gases and/or adverse operating... -
Page 6: Connecting Electrically
Condensable Vapours). Conveyance of other vapours shall be compressor in short time. agreed upon with Busch. Conveyance of water or other liquids in liquid phase increases the power consumption and shall therefore Prior to starting-up it must be made sure that the compressor is op- be avoided (risk of drive overload). -
Page 7: Conveying Condensable Vapours
● Clean the fan cowlings, fan wheels, the ventilation grilles and cool- ing fins During operation of the compressor the anti-pulsation chamber is ● Fill in grease (Klüber Asonic HQ 72-102, Busch Art.No. under pressure. 0821 108 187) at both grease nipples, until grease appears at the... -
Page 8: Every 20000 Operating Hours, At The Latest After 6 Years
Note : The change interval of 20000 operating hours is valid for the Recommissioning gear oil Busch VS 150 only. Other gear oils reduce the change interval. ● Observe the chapter Installation and Commissioning ( page 4) ● Change the synchronising gear oil... -
Page 9: Troubleshooting
(714) as required and reassem- Internal parts are worn or damaged Repair the compressor (Busch service) The compressor does not start The drive motor is not supplied with the cor-... - Page 10 If the compressor is blocked: Repair the compressor (Busch service) The drive motor is defective Replace the drive motor (Busch service) The compressor is blocked Solid foreign matter has entered the Repair the compressor (Busch service) compressor...
- Page 11 Adjust, repair or replace, respectively In case a pressure relief valve/regulating system is installed: The pressure relief valve/regulating system is misadjusted or defective Partial clogging of filters or screens Remove the clogging Partial clogging in the suction, discharge or pressure line Long suction, discharge or pressure line with Use larger diameter too small diameter...
-
Page 12: Sectional Drawing
Sectional Drawing Sectional Drawing MI 1502 BP page 12 0870152627 / 101117... -
Page 13: Spare Parts
0-9-414 7782 Fax: 0-9-414 7783 Find the list of Busch companies all over the world (by the time of the publication of these installation and operating instructions) on page 16 (rear cover page). Find the up-to-date list of Busch companies and agencies all over the world on the internet atwww.busch-vacuum.com. -
Page 14: Ec-Declaration Of Conformity
EC-Declaration of Conformity Note: This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. When this machine is integrated into a superordinate machinery the manufacturer of the superordinate machinery (this can be the operating company, too) must conduct the conformity assessment process for the superordinate machine or plant, issue the Declaration of Conformity for it and affix the CE-mark. -
Page 15: Technichal Data
Technichal Data For motor connection parameters see nameplate Type 18.5 3000 ~390 MI 1502 BP 18.5 3600 ~390 *valid ultimate working pressure see nameplate Technichal Data MI 1502 BP page 15 0870152627 / 101117... -
Page 16: Busch - All Over The World In Industry
Busch – All over the World in Industry www.busch-vacuum.com France Italy Singapore Argentina Busch Italia S.r.l. Busch France S.A.S. Busch Argentina S.R.L. Busch Vacuum Singapore Pte Ltd Via Ettore Majorana, 16 16, Rue du Bois Chaland Santo Domingo 3076 20 Shaw Road...
