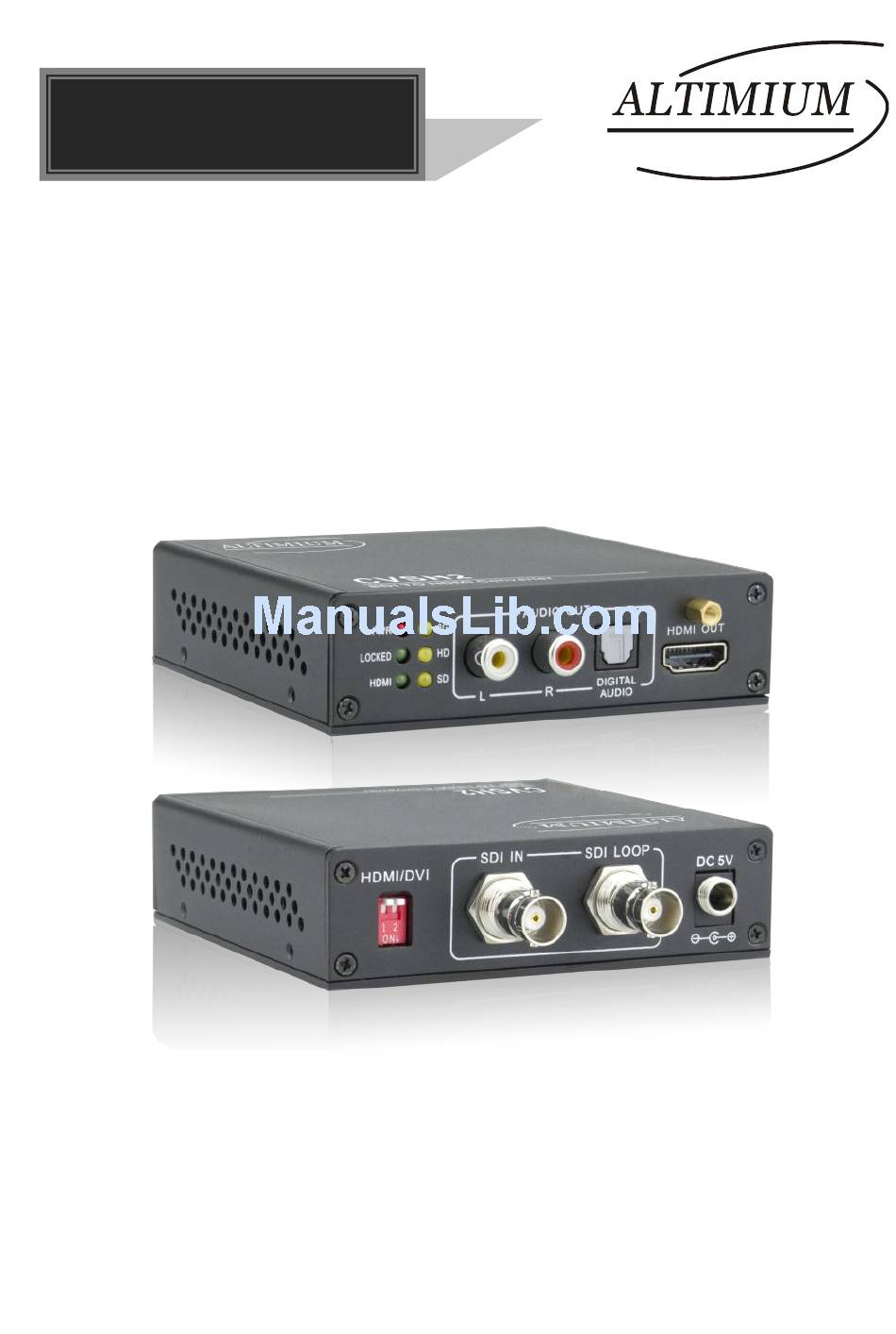

- Page 1 User Manual CVSH2 SDI to HDMI Converter All Rights Reserved Version: CVSH2_ 2016V1.1...
-
Page 2: Fcc Statement
Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. Altimium www.altimium.com... -
Page 3: Safety Precautions
Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. Altimium www.altimium.com... -
Page 4: Table Of Contents
SDI to HDMI Converter Table of Contents Introduction ......................1 1.1. Introduction to CVSH2 ................... 1 1.2. Features ......................1 1.3. Package Contents ..................1 Product Appearance ................... 2 System Connection .................... 3 3.1. System Diagram ..................... 3 3.2. Connection Procedure ................... 3 Specification ....................... -
Page 5: Introduction
1. Introduction 1.1. Introduction to CVSH2 CVSH2 is specialized in converting SDI input signal to HDMI or DVI output signal, and it can transmit digital audio signal via the optical fiber. Integrated with 3G/HD/SD receiver and HDMI encoder, CVSH2 can turn the 3G/HD/SD signal to HDMI/DVI signal easily. -
Page 6: Product Appearance
PWR: Power indicator, turns red when normal power on, and turns off when power off. LOCKED: Check if there is input signal, flashes when there inputs a signal, and keep on when the signal is locked. Altimium www.altimium.com... -
Page 7: System Connection
If you need two outputs, please connect the SDI LOOP port on the rear panel of this CVSH2 to the SDI IN port on another CVSH2 by using another SDI cable. Step2. If long distance audio transmission is requested, please connect the DIGITAL AUDIO output port to the optic-fiber accepter (SPDIF decoding included) by using an optical fiber. -
Page 8: Specification
Audio General Stereo Channel Frequency >80dB@1KHz 20Hz ~ 20KHz Separation Response CMRR >90dB@20Hz~20KHz General Temperature -20 ~ +70℃ Humidity 10% ~ 90% Power Power Supply DC5V Consumption Case Product 0.4Kg Dimension W100 x H100 x D26 mm Weight Altimium www.altimium.com... -
Page 9: Special Functions Introduction
5. Special Functions Introduction 5.1. Looping Output Function Introduction Looping output function is supported in CVSH2, showed in Figure 3. In this mode, the signal pass through the SDI IN port to the SDI LOOP port of the first converter, and the SDI LOOP output port can be connected to the SDI IN port of the next converter, and so on. -
Page 10: Panel Drawing
SDI to HDMI Converter 6. Panel Drawing 100 mm 100 mm 100 mm SDI IN SDI LOOP Figure 4 Panel Drawing Altimium www.altimium.com... -
Page 11: Troubleshooting & Maintenance
6) If the output image is interfered, please make sure the system is grounded well. 7) If the static becomes stronger when connecting the audio or video connectors, it probably due to bad grounding, please check the grounding and make sure it connected well, otherwise it would damage the converter. Altimium www.altimium.com... -
Page 12: Safety Operation Guide
6) As to non-professional or without permission, please DO NOT try to open the casing of the equipment, DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 7) DO NOT splash any chemistry substance or liquid in the equipment or around. Altimium www.altimium.com... -
Page 13: After-Sales Service
SDI to HDMI Converter 9. After-sales Service 1) If there appear some problems when running CVSH2, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 2) You can email to our after-sales department or make a call, please tell us the following information about your cases. - Page 16 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
