Altimium IP4K-500 Series Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manuel d'utilisation
IPE4K-500 / IPD4K-500
Encodeur & Décodeur
UHD 4K sur IP Streaming
All Rights Reserved
Version: IPE4K-500_V0.9.4 & IPD4K-500_V0.9.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP4K-500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Altimium IP4K-500 Series

Summary of Contents for Altimium IP4K-500 Series

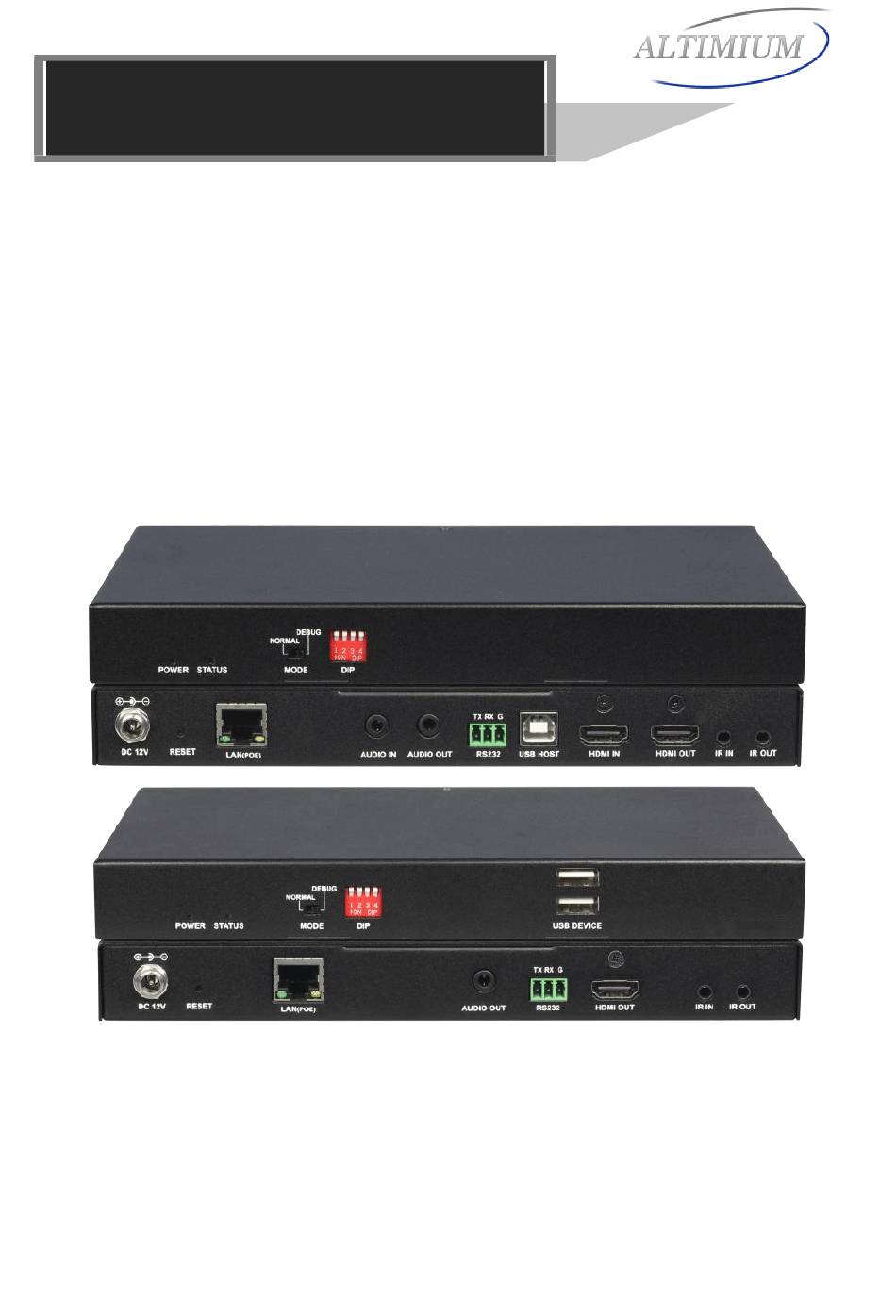

  • Page 1 Manuel d'utilisation IPE4K-500 / IPD4K-500 Encodeur & Décodeur UHD 4K sur IP Streaming All Rights Reserved Version: IPE4K-500_V0.9.4 & IPD4K-500_V0.9.4...
  • Page 2 Important Safety Instructions 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. 7. Unplug this apparatus 2.

  • Page 3: Table Of Contents

    Operating the Devices ................... 31 Introduction to Different Operation Tools ..........31 Using DIP Switch to Perform Routing ............. 32 Using PC Configurator to Perform Fast Switching ........33 Updating the Firmware .................. 34 Warranty Terms and Conditions ..............35 01.64.13.31.00 www.altimium.com...

  • Page 4: Introduction

    Encodeur/ Décodeur IP Streaming Introduction Overview IP4K-500 series encoders (IPE4K-500) and decoders (IPD4K-500) provide the flexible, powerful, and scalable solution at resolutions up to 3840 x 2160@60Hz 4:2:0, 3840 x 2160@30Hz 4:4:4. They allow 4K UHD media to be switched and distributed over standard gigabit...

  • Page 5: Features

    Supports HDMI input and output transmission distance up to 50 ft (15 m)  1 ~ 2 fps latency  Supports independent analog audio input and output at 2 channels, 24 bits@48 kHz/channel  Supports bi-directional serial, allowing control of remote 01.64.13.31.00 www.altimium.com...
  • Page 6 Supports live IP video stream decoding, working with IPE4K-500 to provide complete end-to-end streaming systems  Input: one Ethernet input  Output: one HDMI output and one analog audio output  Supports streaming and HDMI output resolutions up to 01.64.13.31.00 www.altimium.com...
  • Page 7 USB 2.0 standard, providing +5 VDC at up to 500 mA to connected USB peripherals.  Offers point-to-point, point-to-multipoint, multipoint-to-point, multipoint-to-multipoint applications  Supports PoE to be remotely powered by compatible power source equipment such as a PoE-enabled Ethernet switch, 01.64.13.31.00 www.altimium.com...
  • Page 8 Works with multiple operation tools, the front panel link DIP switch, Windows PC configurator, VisualM on iPad and IP controller for device control, device management, and device upgrade  Supports communications protocols used on the Ethernet such as TCP/IP, ARP, DHCP, ICMP (ping), IGMP, UDP 01.64.13.31.00 www.altimium.com...

  • Page 9: Package Contents

    1 x Detachable Plug  1 x Phoenix Port (Male, 3.5 mm, 3 pins)  1 x IR Emitter (3.9 ft/1.2 m)  1 x IR Wideband Receiver (3.9 ft/1.2 m, 30 kHz ~ 50 kHz)  2 x Mounting Ear 01.64.13.31.00 www.altimium.com...

  • Page 10: Specifications

    IPE4K-500 features all the capabilities above while IPD4K-500 is not compatible with 3840 x 2160@50Hz and 60Hz. Chroma Sampling 4:4:4: or 4:2:0 Color Bit Depth 8 bits per color Signal Type HDMI Max. Video Data Rate 8.91 Gbps (2.97 Gbps per color) 01.64.13.31.00 www.altimium.com...
  • Page 11 1920 x 1080p@50Hz, 1920 x 1080p@24Hz 1920 x 1080p@25Hz 640 x 480@60Hz, 800 x 600@60Hz 1024 x 768@60Hz, 1280 x 720@60Hz 1280 x 768@60Hz, 1280 x 800@60Hz 1280 x 960@60Hz, 1280 x 1024@60Hz 1360 x 768@60Hz, 1366 x 768@60Hz 01.64.13.31.00 www.altimium.com...
  • Page 12 HDMI loop-through: (local output) HDMI, HDCP Output Video Type Ethernet output: IP stream HDMI loop-through: (local output) Up to 3840 x 2160@60Hz 4:2:0 Output Video Resolutions Ethernet output: Up to 3840 x 2160@30Hz 4:4:4 Output Video 0.5~1.2 V p-p 01.64.13.31.00 www.altimium.com...
  • Page 13 1 PC level stereo, unbalanced Signal Type 1 x 3.5 mm stereo jack, 2 channel; Input Audio Port tip (L), ring (R), sleeve (ground) Signal Format Analog Impedance >10k ohms, AC coupled Nominal Level -4.2 dBV (617 mVrms) 01.64.13.31.00 www.altimium.com...
  • Page 14 -3.47 dBV (670 mVrms) Control & Management Control & the front panel link DIP switch, Management Windows PC configurator (HDMIoverIPConsole), Method VisualM on iPad, IP controller (SC009) General +32°F ~ +113°F (0°C ~ +45°C) Operating Temperature/ 10% ~ 90%, non-condensing 01.64.13.31.00 www.altimium.com...
  • Page 15 (310 mm x 76 mm x 180 mm) Unit Dimensions 8.7'' x 1.0'' x 5.1'' (W x H x D) (220 mm x 25 mm x 130.2 mm) Unit Weight 1.63 lb (0.74 kg) (without accessories) Certification CE, FCC, RoHS compliant 01.64.13.31.00 www.altimium.com...
  • Page 16 HDMI, HDCP Output Video Type Output Video Up to 3840 x 2160@30Hz 4:4:4 Resolutions End-to-End Time 1 ~ 2 fps Latency Output Video 0.5~1.2 V p-p Signal Output DDC Signal 5 V p-p (TTL) 100 Ω Video Impendence 01.64.13.31.00 www.altimium.com...
  • Page 17 DTS 5.1/DTS HD/DTS True HD, LPCM2.0/LPCM2.1/LPCM5.1/LPCM 7.1 Analog audio output: Number/ 1 PC level stereo, unbalanced Signal Type 1 x 3.5 mm stereo jack, 2 channel; Output Audio Port tip (L), ring (R), sleeve (ground) Analog Signal Format Note: 01.64.13.31.00 www.altimium.com...
  • Page 18 Surge Protection Voltage: ±1 kV Group Pulse Voltage: ±2 kV Protection Case Dimensions 12.2'' x 3.0'' x 7.1'' (W x H x D) (310 mm x 76 mm x 180 mm) Unit Dimensions 8.7'' x 1.0'' x 5.1'' 01.64.13.31.00 www.altimium.com...
  • Page 19 Encodeur/ Décodeur IP Streaming General (W x H x D) (220 mm x 25 mm x 130.2 mm) Unit Weight 1.63 lb (0.74 kg) (without accessories) Certification CE, FCC, RoHS compliant 01.64.13.31.00 www.altimium.com...

  • Page 20: Panel Description

    Working rear panel RS232 port to a RS232 NORMAL device such as a computer for Mode (Default) bi-directional serial communication Switch with a RS232 device on the IP controller side. DEBUG In this mode, you can connect the 01.64.13.31.00 www.altimium.com...
  • Page 21 (Recessed) Note: When the settings are restored, your custom data is lost. Therefore, exercise caution when using the RESET button. IP Stream LAN (POE): 10/100/1000 Base-T port, connect Output this port to a gigabit Ethernet switch for IP 01.64.13.31.00 www.altimium.com...
  • Page 22 Ethernet switch, it receives power from the power adapter instead of the switch. AUDIO IN: connect this 3.5 mm stereo tip-ring-sleeve port to an audio input device such Audio Input as a computer to accept unbalanced, stereo audio signals. 01.64.13.31.00 www.altimium.com...
  • Page 23 Serial computer to bi-directionally communicate Communication with a RS232 device at the IP controller side.  When the front panel "MODE" switch is toggled to the "DEBUG" position, connect this port to a RS232 device such as a 01.64.13.31.00 www.altimium.com...
  • Page 24 This IR cable illustration applies to the IR input ports in IPE4K-500 and IPD4K-500. IR OUT: connect this 3.5 mm tip-sleeve port to an IR emitter for IR communication with an IR IR Output receiver in the IPD4K-500 side on the network. IR Emitter: 01.64.13.31.00 www.altimium.com...
  • Page 25 IPE4K-500. Blinking  STATUS IPE4K-500 is disconnected Indicator from an active video source.  IPD4K-500 is powered off.  IPD4K-500 is in the boot process.  Network is down. NORMAL Working In this mode, you can connect the 01.64.13.31.00 www.altimium.com...
  • Page 26 Note: USB Port for  This device supports most standard Peripherals keyboard keys and mouses, including standard 84/101/104 keyboard keys and most of multimedia or system control keys.  Wired keyboards and mouses are recommended for optimal performance. 01.64.13.31.00 www.altimium.com...
  • Page 27 DIP switch. This function applies to decoder only. LAN (POE): 10/100/1000 Base-T port, connect IP Stream Input this port to a gigabit Ethernet switch for IP 01.64.13.31.00 www.altimium.com...
  • Page 28 When the front panel "MODE" switch is toggled to the "DEBUG" position, connect this port to a RS232 device such as a computer for debugging IPD4K-500. HDMI OUT: connect this port to an HDMI display AV Output device. 01.64.13.31.00 www.altimium.com...
  • Page 29 IR receiver for IR communication with an IR emitter in the IPE4K-500 side on the network. IR OUT: connect this 3.5 mm tip-sleeve port to IR Output an IR emitter for IR communication with an IR receiver in the IPE4K-500 side on the network. 01.64.13.31.00 www.altimium.com...

  • Page 30: Typical Applications

    Typical Applications Scenarios 1 1 GbE Audio/Video Input Ethernet Switch Audio/Video Output Amplifier Apple TV Encoder HDMI IN AUDIO OUT Decoder 3 x 3 Video Wall HDMI OUT Set-top Box HDMI IN Encoder Serial Decoder HDMI OUT 4K Media Player Encoder HDMI IN 4 x 5 Video Wall...

  • Page 31: Scenarios 2

    Scenarios 2 1 GbE Ethernet Switch Apple TV Remote Encoder HDMI IN 7.1 Surround Sound System Display Set-top Box Encoder HDMI IN HDMI OUT HDMI OUT 4K Media Player Encoder Display HDMI IN Remote Workstation/PC Decoder Encoder HDMI IN USB(PC) HDMI OUT AUDIO IN IP Controller...

  • Page 32: Hardware Installation

    Hardware Installation Audio/Video Input Audio/Video Output Display Laptop HDMI OUT HDMI OUT Amplifier Projector Display Remote Remote Projector (Keyboard and Mouse) Serial Comm- (PC) unication AUDIO HDMI HDMI RS232 Device AUDIO Serial Amplifier IR IN IR IN Communication Encoder Decoder IP Controller IP Stream Control...

  • Page 33: Operating The Devices

    Operating the Devices Introduction to Different Operation Tools The IP4K-500 series products allow you to use the front panel link DIP switch, PC configurator, VisualM and IP controller to manage and control the encoders and decoders. This section briefly introduces how to route the video from source to the display using these tools.

  • Page 34: Using Dip Switch To Perform Routing

    Note:  Operation tools PC configurator, VisualM and IP controller take priority over the link DIP switch. Link relationship between encoder and decoder performed by the DIP switch can be changed using any other tools.  When audio, video together with IR, and USB signals are routed via PC configurator, VisualM and IP controller, press and hold the rear panel RESET button in decoder for less than five seconds to remove the current link relationship between encoder and decoder,...

  • Page 35: Using Pc Configurator To Perform Fast Switching

    Using PC Configurator to Perform Fast Switching In addition to matrix switching between encoders and decoders via PC configurator, it allows users to configure them, including HDCP Hybrid and HDMI Timing Hybrid to function fast switching. For more information, see the user guide of PC configurator.

  • Page 36: Updating The Firmware

    Updating the Firmware You can use MaintainTool to update the encoders and decoders to their latest versions to obtain new features. For more information, see the user guide of MaintainTool.

  • Page 37: Warranty Terms And Conditions

    Warranty Terms and Conditions For the following cases ALTIMIUM shall charge for the service(s) claimed for the products if the product is still remediable and the warranty card becomes unenforceable or inapplicable. The original serial number (specified by ALTIMIUM) labeled on the product has been removed, erased, replaced, defaced or is illegible.
  • Page 38 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
