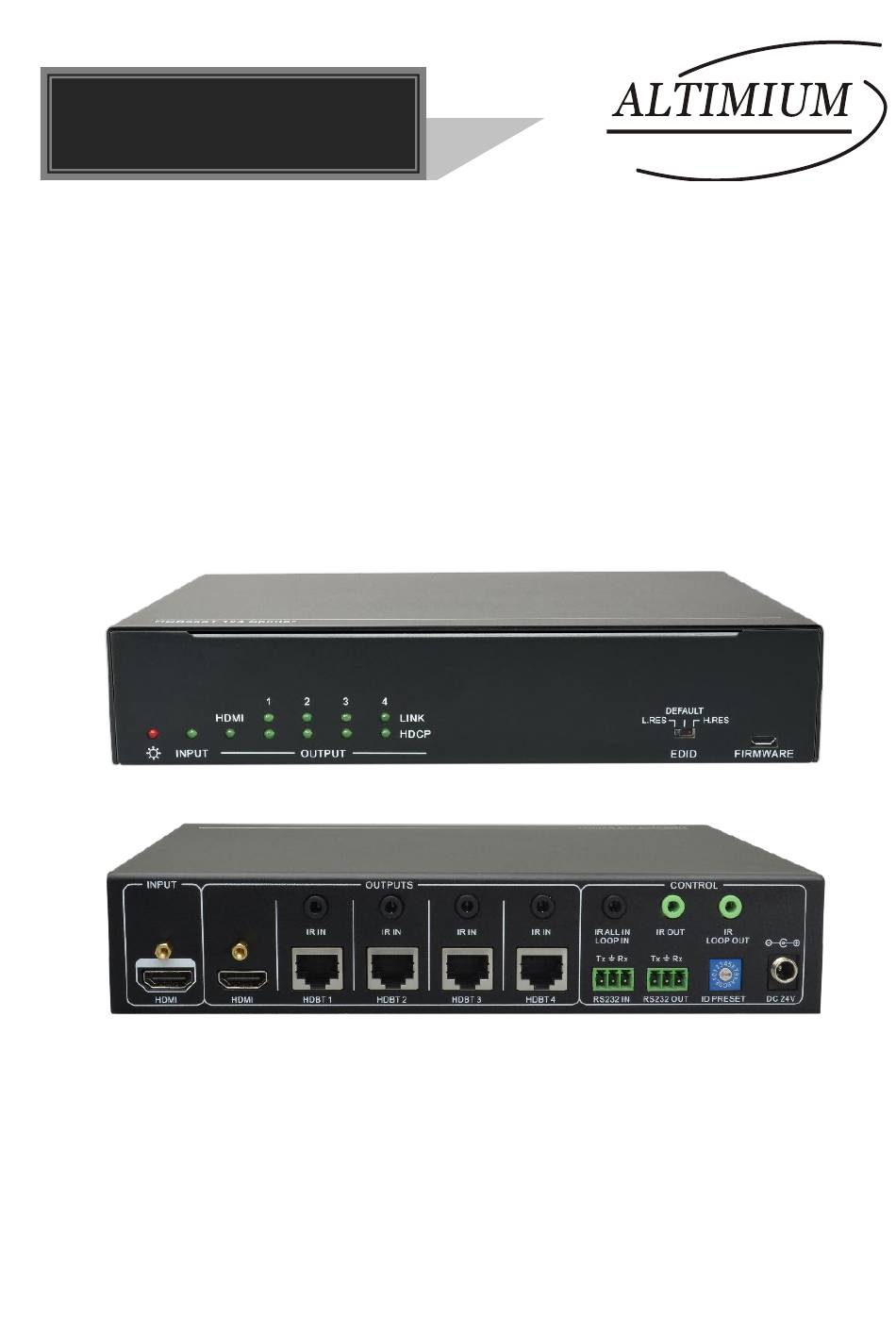

- Page 1 User Manual SP141T-4K HDBaseT 1x4 Splitter Kit All Rights Reserved Version: SP141T-4K_2018V1.0...
- Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. Altimium www.altimium.com...
- Page 3 Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. Altimium www.altimium.com...
-
Page 4: Table Of Contents
6. RS232 Control ......................14 6.1 RS232 Control Software .................. 14 6.2 RS232 Command Format ................16 7. EDID Management ....................18 8. Panel Drawing ......................19 9. Troubleshooting & Maintenance ................20 10. Customer Service ....................21 Altimium www.altimium.com... -
Page 5: Product Introduction
Smart EDID management. Features DIP switch to select the output resolution to match the connected displays. Fully compliant with the HDMI 1.4 specification. Supports HDCP pass-through management. Supports firmware update. Intuitive indicator for connection status. Altimium www.altimium.com... -
Page 6: Package List
HDBaseT 1x4 Splitter Kit 1.2 Package List 1x SP141T-4K HDBaseT 1x4 Splitter 2x Mounting Ears with 4 Screws 4x Circular Plastic Cushions 1x 3-pin to 3-pin RS232 Cable (for RS232 loop out cascading) HDBaseT Splitter 1x 3-pin to DB9 RS232 Cable ... -
Page 7: Technical Specification
-10 ~ +55℃ Storage Temperature -25~ +70℃ Relative Humidity 10% ~ 90% AC Adapter Input Power 100V~240V AC, 50/60Hz Input Power 24V DC 2.71A Power Consumption 45W (Max) Dimension (W*H*D) 220mm x 44mm x 148mm Net Weight 725g Altimium www.altimium.com... -
Page 8: Hdbaset Receiver
100V~240V AC, 50/60Hz Input Power 24V DC 2.71A Power Consumption 11W (Max) Dimension (W*H*D) W115mm x H16mm x D84mm Net Weight 150g Note: Please adopt quality CAT Ethernet cable compliant with CAT6e or higher standard for reliable transmission. Altimium www.altimium.com... -
Page 9: Panel Description
HDCP. Each LED is off when there is no connected corresponding receiver. DIP switch for the Extended Display Identification Data (EDID) EDID ④ value setting. FIRMWARE USB port for firmware upgrading. ⑤ Altimium www.altimium.com... -
Page 10: Hdbaset Splitter Rear Panel
There are sixteen positions, with 0 at the fully counterclockwise position and F at the fully clockwise position. After setting the ID, the device must be restarted for the new ID to take effect. ⑥ DC barrel connector for the included AC power adapter. DC 24V Altimium www.altimium.com... -
Page 11: Hdbaset Receiver Front Panel
The LED illuminates green when there is valid HDMI traffic with ② HDCP LED HDCP content. It blinks green when there is video traffic without HDCP and is off when there is no traffic. ③ Power LED The LED illuminates green when power is applied. Altimium www.altimium.com... -
Page 12: Hdbaset Receiver Rear Panel
⑤ HDBT IN: RJ45 jack for connecting the CATx cable from the splitter. DC barrel connector for connecting the AC power adapter. ⑥ DC 24V he receiver can work without power adaptor when the matrix is powered on. Altimium www.altimium.com... -
Page 13: System Connection
1080P 70M 4K 40M Receiver Emitter Display Remote Laptop 4K TV Receiver Emitter DVD Remote IR Receiver Display Note: The HDBaseT receivers have no need of power adaptors, they can be powered by the splitter with PoH support. Altimium www.altimium.com... -
Page 14: Cascade Connection
Blu-Ray HDMI: RS232: INPUT OUTPUTS CONTROL HDBaseT: IR IN IR IN IR IN IR IN IR OUT HDMI HDMI HDBT 1 HDBT 2 HDBT 3 HDBT 4 RS232 IN RS232 OUT ID PRESET DC 24V Next 1x4 Splitter Altimium www.altimium.com... -
Page 15: Ir Control
IR IN IR OUT HDMI HDMI HDBT 1 HDBT 2 HDBT 3 HDBT 4 RS232 IN RS232 OUT ID PRESET DC 24V 1080P 70M 1080P 70M 4K 40M 4K 40M Receiver Receiver Emitter Emitter 4K TV-1 4K TV-4 Altimium www.altimium.com... -
Page 16: Controlling The Display Device By Ir All In
IR IN IR OUT HDMI HDMI HDBT 1 HDBT 2 HDBT 3 HDBT 4 RS232 IN RS232 OUT ID PRESET DC 24V 1080P 70M 1080P 70M 4K 40M 4K 40M Receiver Receiver Emitter Emitter 4K TV-1 4K TV-4 Altimium www.altimium.com... -
Page 17: Controlling The Source Device
HDMI HDBT 1 HDBT 2 HDBT 3 RS232 IN RS232 OUT ID PRESET DC 24V HDBT 4 1080P 70M 1080P 70M 4K 40M 4K 40M Emitter Receiver Receiver Receiver Receiver DVD Remote 4K TV-1 DVD Remote 4K TV-4 Altimium www.altimium.com... -
Page 18: Rs232 Control
First to connect all input devices and output devices needed, then to connect it with a computer which is installed with RS232 control software. Double-click the software icon to run this software. Here take the software CommWatch.exe as example. The icon is shown as below: Altimium www.altimium.com... - Page 19 Monitoring area, indicates if the command sent works. Command sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then commands are ready to send in Command Sending Area. Altimium www.altimium.com...
-
Page 20: Rs232 Command Format
For specific commands, please refer to the user manual of the devices which are needed to be control. For example, send A5 A5 A5 5A 01 VV 02 0A 01 00 RR to mute the third-party devices. Altimium www.altimium.com... - Page 21 ② The four X represent four HDBaseT outputs. AB AC BC XX XX X=0, OFF X=1, ON If the HDBT 1 port need to be turned on, other ports are closed, the command AB AC BC 10 00 should be sent. Altimium www.altimium.com...
-
Page 22: Edid Management
EDID which contain the highest resolution. Note: When the four displays have the same resolution parameter, the source device will obtain the EDID with priority from HDBT 1 to HDBT 4. Altimium www.altimium.com... -
Page 23: Panel Drawing
OUTPUTS CONTROL IR IN IR IN IR IN IR IN IR OUT HDMI HDMI HDBT 1 HDBT 2 HDBT 3 HDBT 4 RS232 IN RS232 OUT ID PRESET DC 24V 8-1 HDBaseT Splitter 115 mm 8-2 HDBaseT Receiver Altimium www.altimium.com... -
Page 24: Troubleshooting & Maintenance
Check the grounding and when connecting the Bad grounding. make sure it is connected video connectors. well. Note: If your problem still remaining after following the above troubleshooting steps, please contact your local dealer or distributor for further assistance. Altimium www.altimium.com... -
Page 25: Customer Service
Remarks: For further assistance or solutions, please contact your local distributor. Altimium www.altimium.com... - Page 28 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
