Dynojet Power Commander V Installation Instructions page 4

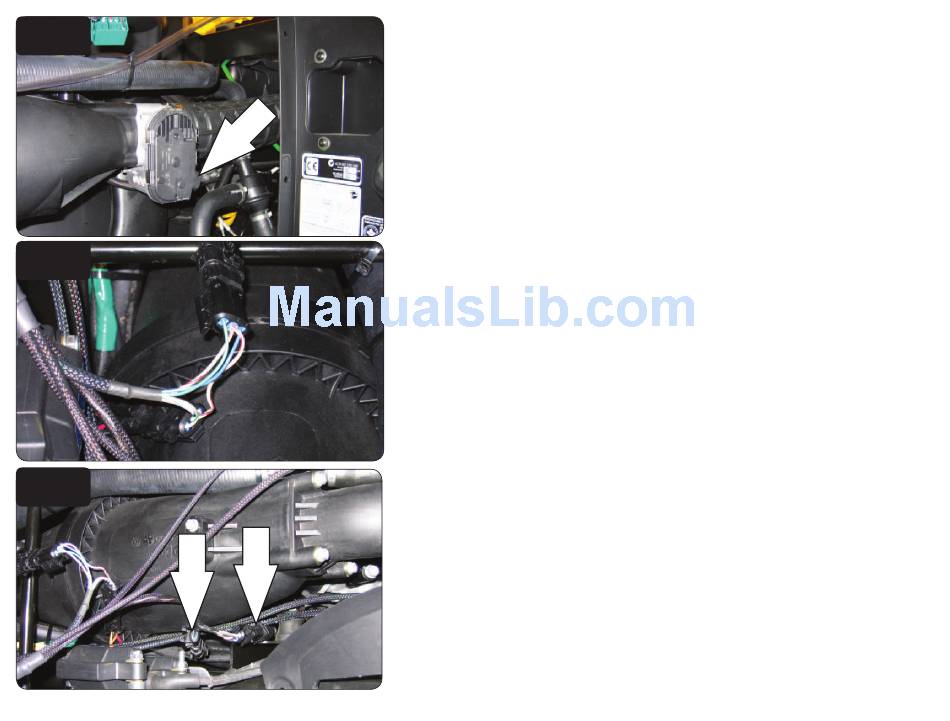

FIG.D
FIG.E
FIG.F
25-007 www.powercommander.com
6 Locate the fly by wire throttle servo and unplug the six-pin connector.
The fly by wire throttle servo is located on the passenger side of the intake
plenum.
7 Attach the connectors from the PCV harness in line with stock wiring harness
and the servo unit.
8 Unplug the three-pin coil connector.
This connector is located on the coil under the center console on the left side.
9 Attach the connectors from the PCV harness to the stock wiring harness and
the coil connector.
10 Locate the two-pin crank connector.
This connector is located beneath the intake plenum on the drivers side of the
engine.
11 Attach the connectors from the PCV harness to the stock wiring harness and
the crank connector.
11-12 Can-Am Commander 800 PCV - 4
