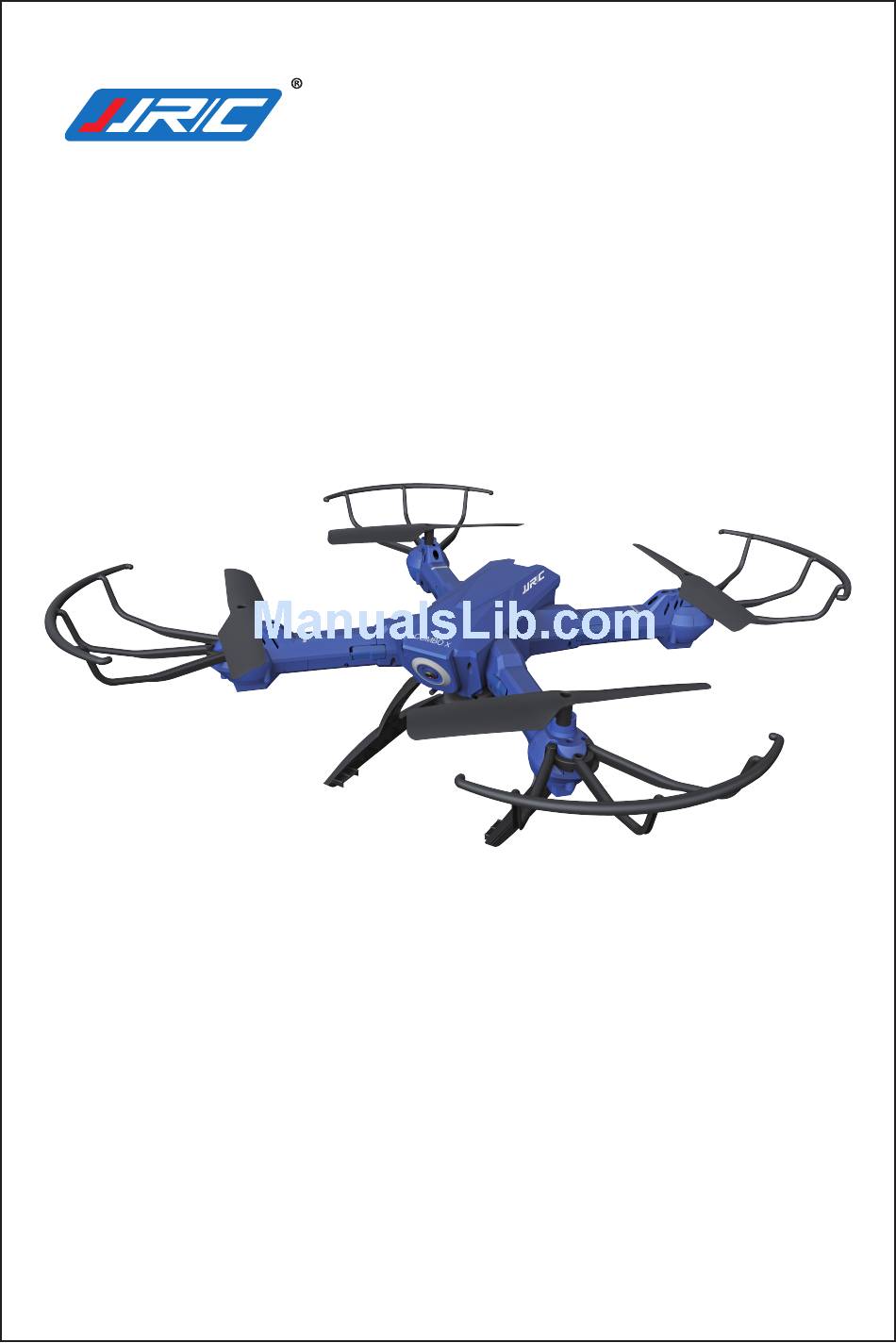

- Page 1 COMBO X *Please read this manual carefully before operation and keep it properly for future reference.
- Page 2 KNOW YOUR COMBO X With 2.4G frequency band for long remote control distance, COMBO X allows multiple flights at the same time without any interference. User can control it to fly, roll, hover and take photos/videos with transmitter or APP on smart phone (Wifi Version).
- Page 3 ACCESSORIES COMBO X *请在飞行前仔细阅读说明书并妥善保管以便日后参考。 COMBO X x1 Transmitter x1 User manual x1 (Battery Included) Backup USB charger x1 Phone clip x1 propellers x4 Note: Please check the number of accessories carefully(as shown above).Please provide proof of purchase and contact the store...
-
Page 4: Pre-Flight Preparation
PRE-FLIGHT PREPARATION 1.Flight Environment Indoor flying: Choose a wide place without barriers, pets and people. Outdoor flying: Choose a sunny and windless day. Do not fly in extreme environment, such as hotness, coldness, strong wind or heavy rain. Please keep the drone in sight during the flight and keep it away from barriers, high-tension cables, trees and people. -
Page 5: Propellers Installation
2.Crankshafts Installation When install crankshafts,make sure the crankshaft and the rack correspond correctly.(As shown in figure below) ① ② PRESS PULL OUT ③ ④ 3.Propellers Installation FRONT A corresponds to A,B corresponds to B... - Page 6 4.Propellers Replacement A.Remove the screw B.Remove the blade with a screwdriver. upwards. C.Align the shaft with D.Use a screwdriver to the blade. lock the screw. Note: When installing or dismantling the propeller, please do not exert force on the propeller to avoid distortion. 5.Lithium Battery Instruction Remote control battery installation：...
- Page 7 Note: 1.Make sure the battery are loaded correctly according to the polarity indications on the battery compartment. 2.Please do not mix old and new batteries together. 3.Please do not mix different types of batteries together. Body battery charging： A.Use a screwdriver to B.Open the battery cover remove the screw on the bottom of the drone.
-
Page 8: Battery Instructions
Battery Instructions There is a certain risk when using lithium battery. It may cause fire, body injury or property loss. Users must be aware of the risks and take full responsibility of using battery improperly. If battery leakage occurs, please avoid contacting your eyes and skin with electrolyte. - Page 9 KNOW YOUR REMOTE CONTROL 1. Parts of remote control 1.Phone clip 7. Left joystick(ascend/ 2.Short press to control speed/ descend/turn left/right) Long press to return to home 8. Right joystick(forward/ 3.Short press to 3D rotation/ backward/left/right Long press to enter headless mode side fly) 4.Short press to start/ 9.
-
Page 10: Transmitter Calibration
2.Signal connection of transmitter and receiver ①.Turn on the drone and place it on a level surface, the indicator light of transmitter and the LED of drone flashing. ②.Push the throttle joystick to the highest point then push back to the lowest point,and when you hear two beeps, the indicator light of transmitter and the LED of drone become normally on,the signal connection has completed. -
Page 11: Basic Flight
START YOUR FLIGHT 1.Basic Flight Use the left joystick to control the flight altitude and turn left/right, and the right joystick to control the forward, backward, left and right side flight directions. Left Joystick Ascent Descent Turn Left Turn Right... - Page 12 Right Joystick Forward Backward Left Side Flight Right Side Flight...
- Page 13 Flips&Rolls When the drone is reaching more than 3 meters high, click “360°flips and rolls”and move the right joystick to a certain direction, the drone will rotate in that direction. Right Joystick Front somersault Flip to left Flip to right Backward somersault Hover...
- Page 14 2.Fine-tuning Function When deviating from course, click "Fine-tuning" for calibration until the drone is back to normal. Forward/Backward Fine-tuning Left/Right Turn Left/Right Side Fly Fine-tuning Fine-tuning Note: When the drone is within 30cm from the ground, it will be affected by the blade vortex made by itself and become unstable.
- Page 15 PROBLEMS CAUSES SOLUTIONS The transmitter switch Turn on the transmitter. is on“OFF”. Check and make sure that Control the batteries are loaded Install the batteries according to the polarity failure improperly. instructions on the battery box correctly. Battery exhausted. Replace with new batteries. The remote control is Turn on the remote control.
- Page 16 JJRC TECHNICAL SUPPORT Dear Customer, Thank you for choosing JJRC product. Please visit JJRC official website for more FAQ and information if there is any problem of using our product. Product Operation: Please visit JJRC College for tutorial video or user manual.
