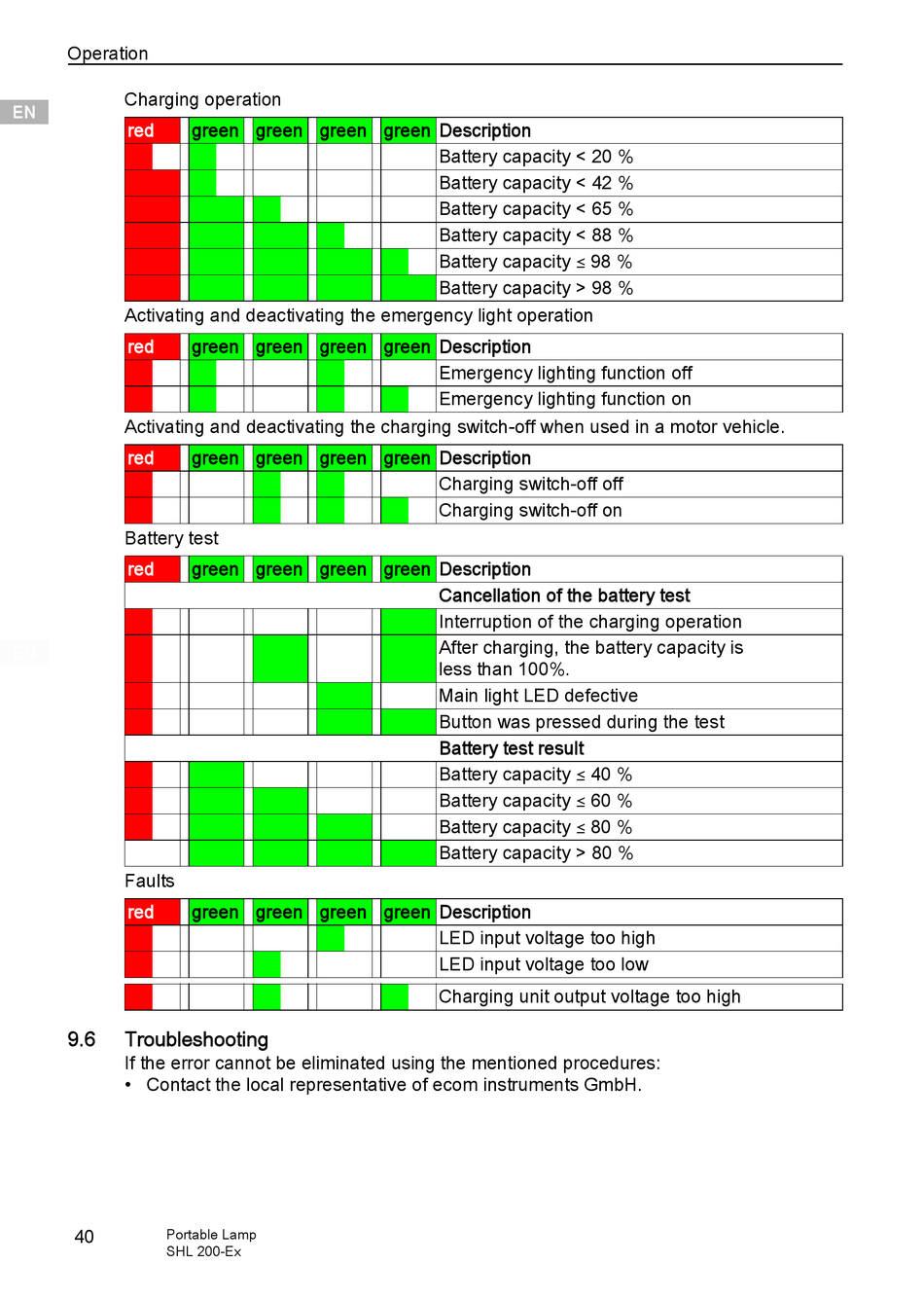

Troubleshooting - Ecom SHL 200-Ex Operating Instructions Manual

Operation
EN
Charging operation
EN
red
EN
EN
EN
EN
EN
EN
EN
Activating and deactivating the emergency light operation
EN
red
EN
EN
EN
Activating and deactivating the charging switch-off when used in a motor vehicle.
EN
red
EN
EN
Battery test
EN
EN red
EN
EN
EN
EN
EN
EN
EN
Faults
red
9.6

Troubleshooting

If the error cannot be eliminated using the mentioned procedures:
• Contact the local representative of ecom instruments GmbH.
40
Portable Lamp
SHL 200-Ex
green green green green Description
green green green green Description
green green green green Description
green green green green Description
green green green green Description
Battery capacity < 20 %
Battery capacity < 42 %
Battery capacity < 65 %
Battery capacity < 88 %
Battery capacity ( 98 %
Battery capacity > 98 %
Emergency lighting function off
Emergency lighting function on
Charging switch-off off
Charging switch-off on
Cancellation of the battery test
Interruption of the charging operation
After charging, the battery capacity is
less than 100%.
Main light LED defective
Button was pressed during the test
Battery test result
Battery capacity ( 40 %
Battery capacity ( 60 %
Battery capacity ( 80 %
Battery capacity > 80 %
LED input voltage too high
LED input voltage too low
Charging unit output voltage too high
