Commissioning
EN

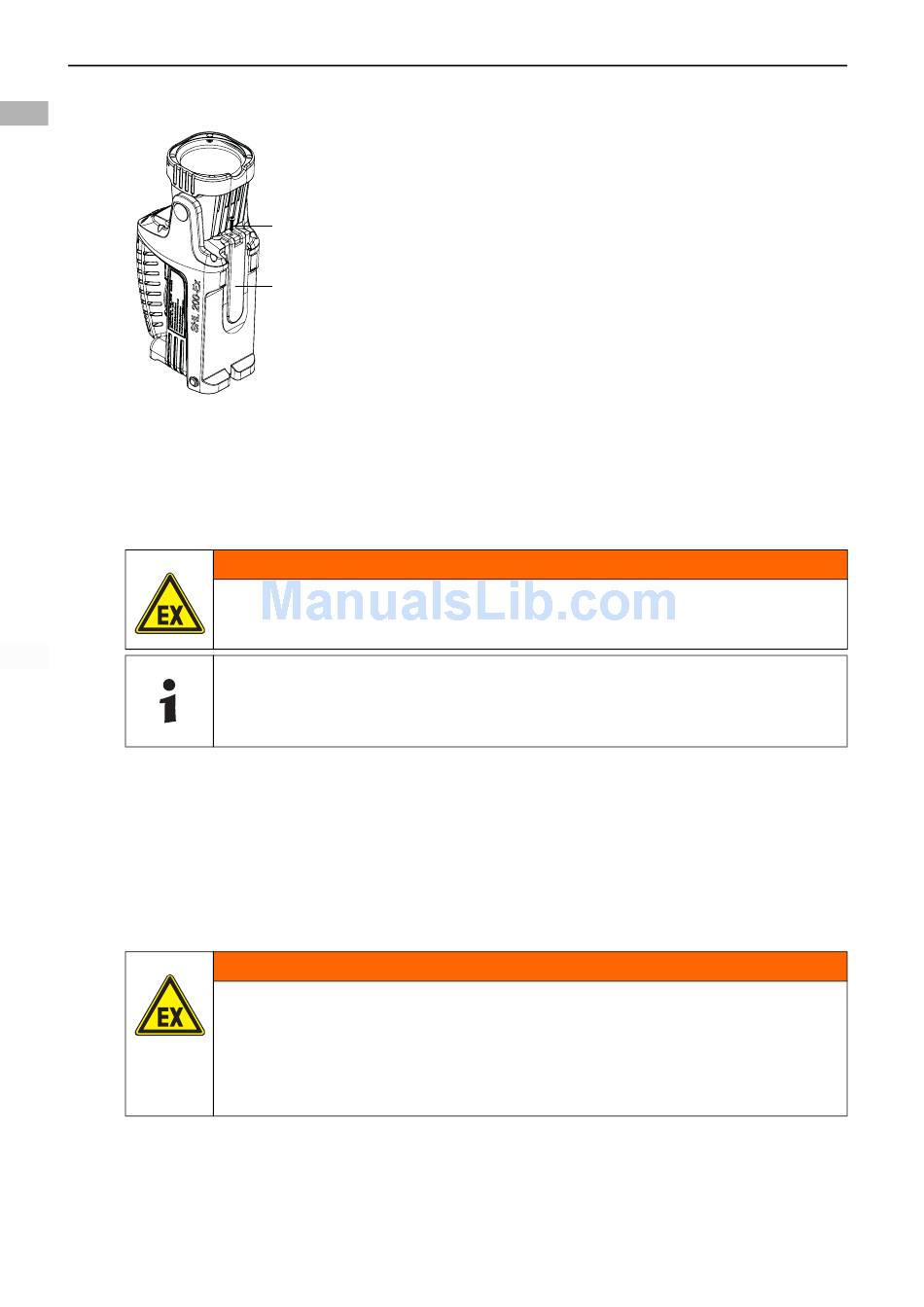

7.2.3 Assembly of the belt hook
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
• Slide the belt hook into the guide from above.
EN
• Fasten it with the screw - tightening torque 0.5 Nm.
EN
EN
8
Commissioning
EN
EN
EN
EN
EN
EN
EN
EN
Charging unit
EN
• Connect charging unit to supply voltage.
• The "Power" LED is lit.
• Insert the portable lamp.
Portable lamp
• The LED display shows information on the charging state or possible faults.
9

Operation

34
Portable Lamp
SHL 200-Ex
1
2
1
2
14773E00
Danger when used in hazardous areas!
The explosion protection is impaired!
• Use the charging unit in safe areas only.
Insert the portable lamp into the connected charging unit before using it for
the first time
Check the device before commissioning!
Explosion protection is impaired!
• Observe the inspection requirements in the current national regulations
before commissioning in order to maintain the explosion protection.
• Check the device for proper installation and function before
commissioning.
Screw for belt hook (Torx 10)
(included in the delivery)
Belt hook
WARNING
WARNING
