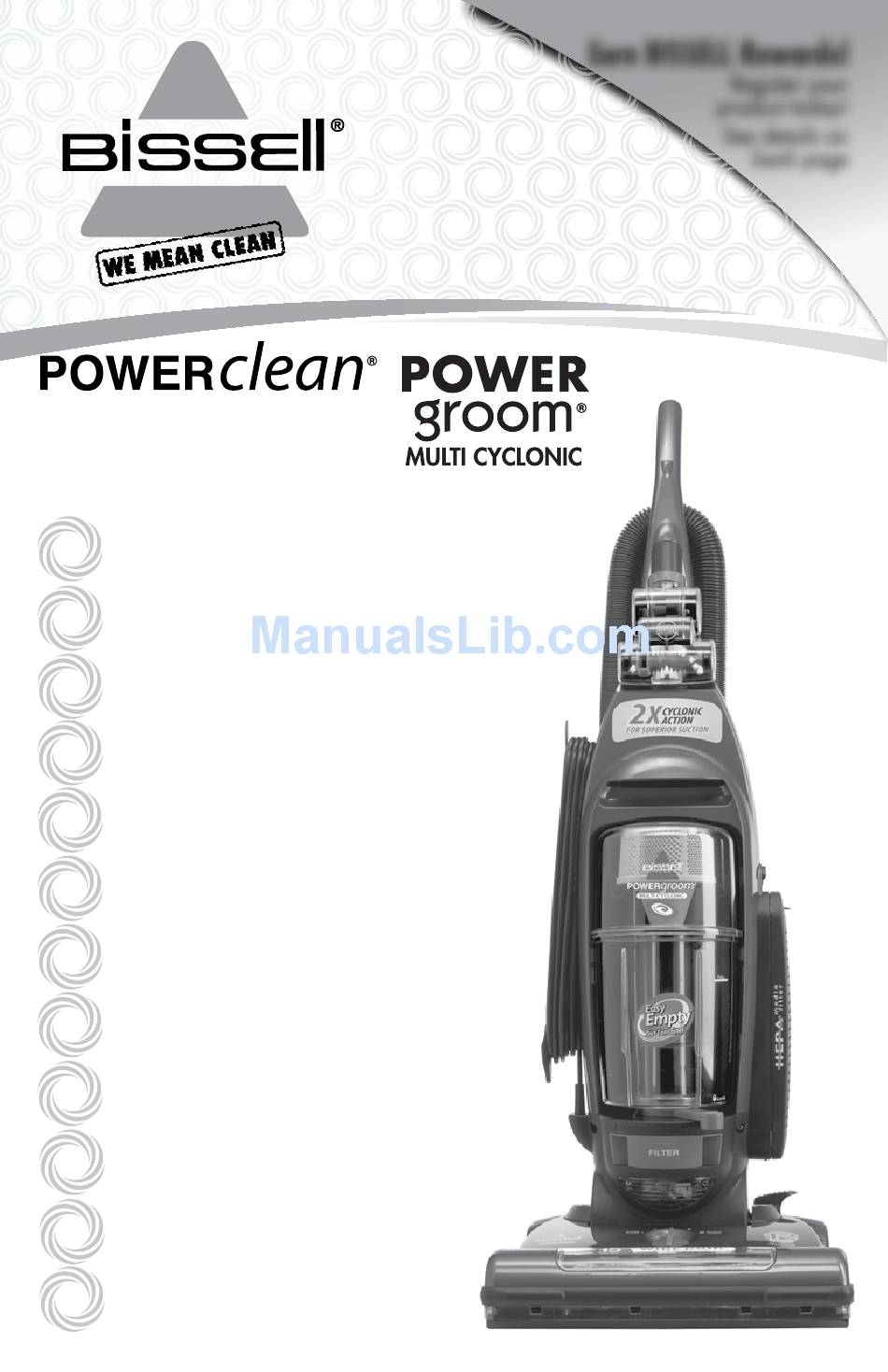

USER'S GUIDE
Remanufactured 92L3 SERIES
2
Thank You
3
Safety instructions
4
Product view
5
Assembly
6-9
Operations
10-15
Maintenance and care
16-17
Troubleshooting
17
Replacement parts
18
Accessories
19
Warranty
20
Product registration
20
Consumer services
Earn BISSELL Rewards!
Earn BISSELL Rewards!
R
R
egister your
egister your
product today!
product today!
See details on
See details on
back page
back page
Advertisement
Table of Contents
Related Manuals for Bissell PowerGroom 92L3R
Summary of Contents for Bissell PowerGroom 92L3R
- Page 1 Earn BISSELL Rewards! Earn BISSELL Rewards! egister your egister your product today! product today! See details on See details on back page back page USER'S GUIDE Remanufactured 92L3 SERIES Thank You Safety instructions Product view Assembly Operations 10-15 Maintenance and care...
- Page 2 Your BISSELL vacuum is well made, and we back it with a limited comprehensive 90 day warranty. We also stand behind it with a knowledgeable, dedicated Consumer Services department, so, should you ever have a problem, you’ll receive fast, considerate...
-
Page 3: Important Safety Instructions
MPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic Keep hair, loose clothing, fingers, and all ■ precautions should be observed, including parts of body away from openings and the following: moving parts. Read all Turn off all controls before plugging or ■... -
Page 4: Product View
roduct view Handle Hose Clip Stretch Hose Quick Release Dusting Brush/ ™ Cord Wrap Upholstery Tool TurboBrush ® Carry Handle Crevice Tool Power Twist ‘n Snap™ Cord Hose Hose Power Switch Inner Cyclone Wand Extension Upper Tank Wand Easy Empty HEPA Media ™... -
Page 5: Attach Handle To Vacuum
ssembly the only tool you’ll need to assemble caution: your vacuum cleaner is a phillips screwdriver. Do not plug in your vacuum attach handle to vacuum cleaner until you are familiar with all instructions and operating pro- 1. Locate the handle and cord wrap. Remove cedures. -
Page 6: Handle Positions
perations handle positions NOTICE: press the handle release pedal, located on the lower left side of the vacuum, with For above floor cleaning, the floor your foot to place your vacuum into one brush will continue to rotate, but is of three cleaning positions. -
Page 7: Transporting Cleaner
perations transporting cleaner 1. To move your cleaner from room to room, put the handle in the upright position, tilt the cleaner back on its rear wheels and push forward. 2. The cleaner can also be moved by using the carry handle. special on-board tools select models only correct way to... - Page 8 perations special on-board tools (continued) crevice tool: Use in tight narrow spaces. extension Wand: Use with desired attach- ment for a longer reach. Dusting Brush/ hose Wand: Use with desired attachment Upholstery Tool for a longer reach or for cleaning hard to reach places.
-
Page 9: Power Cord Usage
perations power cord usage 1. To use your vacuum, remove the cord and plug it into an electrical outlet. For your convenience, there is a quick release cord wrap for easy cord removal. There is also a cord clip that is part of the upper cord Quick Release wrap where you can attach the cord when Cord Wrap... -
Page 10: Maintenance And Care
aintenance and care to maximize your cleaning perfor- mance and extend the life of your WaRning: vacuum, it is very important that you empty your dirt container and check To reduce the risk of electric and clean your filters frequently. shock, turn power switch OFF and perform the following maintenance disconnect polarized plug from... -
Page 11: Check Rotating Floor Brush And Drive Belt
aintenance and care cleaning the pre-motor and post-motor hepa media filters 1. Unplug the vacuum from electrical outlet. Post-Motor HEPA 2. The pre-motor filter protects the motor from Media dirt particles. It is located in the slide out Filter tray underneath the dirt container. If the filter becomes dirty, pull out the tray, lift out the foam filter pad and clean it. -
Page 12: Replace Drive Belt
NOTE: It is important that you use only genuine BISSELL replacement belts. Generic belts may not meet the exactspecifications required to keep your vacuum operating at its peak performance. -
Page 13: Replace Light Bulb
aintenance and care Replace light bulb 1. Unplug the vacuum from electrical outlet. 2. Using a screwdriver, first remove 2 screws on either side of lens and pull out to remove the lens. 3. Remove the bulb from the socket by grasping the bulb and pulling gently. -
Page 14: Cleaning Clogs
aintenance and care cleaning clogs low suction or poor pickup may be due to a clog in the vacuum cleaner. if you notice a change in the sound of the motor, check for clogs. 1. Unplug the vacuum from electrical outlet. 2. - Page 15 aintenance and care cleaning the upper tank 1. Grasp the inner cyclone and twist to the left until the locking tabs stop the rotation. Pull down from the upper tank to remove it. 2. Wipe out the inside of the upper tank and the inner cyclone with a damp cloth moistened with water or a mild cleaning solution.
-
Page 16: Troubleshooting
1-800-237-7691. w w w . b i s s e l l . c o m w w w . - Page 17 - BISSELL vacuum Item Part No. Part Name 303-1120 Style 7/9/10/12/14 Drive Belt (2-Pack) 203-1297 Headlight Bulb 203-1283 Wide Window Foot Brush Roll (gray) 203-1073 Style 7/8/14 Pre-Motor Foam Filter 203-6608 Style 8/14 HEPA Media POST-Motor Filter w w w . b i s s e l l . c o m...
- Page 18 - BISSELL vacuum these items are available for purchase as accessories for your bissell vacuum: to purchase call 1-800-237-7691 or visit www.bissell.com. Item Part No. Part Name 203-1056 Crevice Tool 203-1059 Dusting Brush/Upholstery Tool 203-1429 TurboBrush 203-1068 Extension Wand...
- Page 19 Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL Homecare, Inc. will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for 90 days any defective or malfunctioning part.
- Page 20 Grand Rapids MI 49501 ATTN: Consumer Services Or visit the BISSELL website - www.bissell.com When contacting BISSELL, have model number of cleaner available. Please record your Model Number: ___________________ Please record your Purchase Date: ___________________ note: please keep your original sales receipt. it provides proof of purchase date in the event of a warranty claim.
