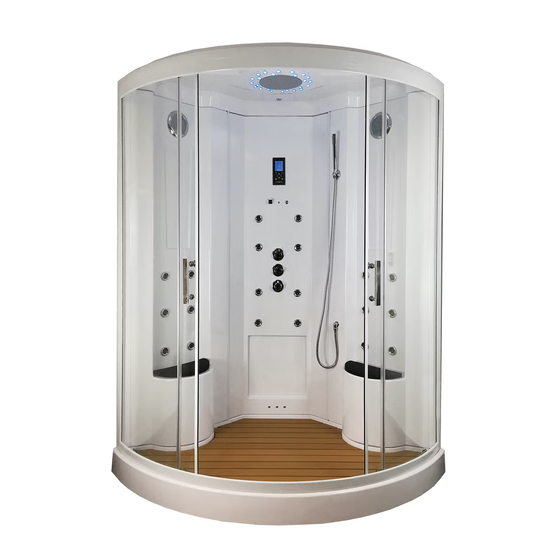

INSTALLATION MANUAL
INS9000
ATTENTION INSTALLERS:
These instructions must be
left with the customer
www.insigniarange.com
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!
WARRANTY REG NO: __________________________
To claim your full 5 year warranty, register your shower within 90 days of delivery at: www.insigniarange.co.uk/
warrantyreg.aspx. Standard 12 month warranty applies if outside this time period.
Last Modified 08/02/2018
www.insigniarange.co.uk
30 Day Technical Support:
(NOTE: This service is only available to customers from the day of delivery,
please have your supplier's details and your postcode to hand before calling)
Replacements Parts:
inside of your warranty contact:
www.insigniarange.co.uk/customerService.aspx
Spares/Replacements Parts:
outside of your warranty
contact 0844 800 3069
01908 226545
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Insignia INS9000
Summary of Contents for Insignia INS9000
- Page 1 INSTALLATION MANUAL 30 Day Technical Support: 01908 226545 INS9000 (NOTE: This service is only available to customers from the day of delivery, please have your supplier’s details and your postcode to hand before calling) Replacements Parts: inside of your warranty contact: www.insigniarange.co.uk/customerService.aspx...
- Page 2 www.insigniarange.com Last Modified 08/02/2018 Contents Introduction Electrical Requirements What’s In The Boxes? Screw Pack Contents Plumbing Requirements Schematics Starting The Installation Electric Box/Steam Generator Connections Sealing and Water Testing SUN Control Panel Instructions Help Book Information Spare Parts...
- Page 3 Last Modified 08/02/2018 Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that will last for many years to come! Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of your finish.
- Page 4 DURING BUILD, LIKE ALL SHOWERS CORRECT SEALING IS IMPERATIVE. If you are using Insignia’s RubberGum, please ensure the product does not come in contact with your silicone as this will cause the RubberGum to fail and will not adhere as intended.
- Page 5 www.insigniarange.com Last Modified 08/02/2018 TOTAL ELECTRICAL REQUIREMENTS Voltage Rating 220 -240AC Frequency Rating 50HZ Power Rating 2.8KW Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation. UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!! Note for electrician. This product comes with 13 amp plug(s) fitted with an RCD unit. We leave it this way for you to connect this your own way due to continued additions to current regulations.
- Page 6 www.insigniarange.com Last Modified 08/02/2018 Tool Requirements None Supplied Scissors Stanley Blade Silicone Gun Spirit Level Tape Measure Philips Screwdriver Electric Drill Adhesive Requirements Bacteria Resistant Sanitary Silicone - (for vertical joints) RubberGum Plumbers Mait (for waste joints) Not Supplied Supplied Not Supplied Hardware Requirements A Steam Shower requires 3 x 1 Metre Braided Hose...
- Page 7 www.insigniarange.com Last Modified 08/02/2018 Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word “DRY RUN”...
- Page 8 28mm Screws / Washers / Hex Nut Drill Piece VERY IMPORTANT Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been checked and is present. No replacement/missing parts can be obtained free of charge during or after the build. Any claims can only be within the timescale permitted (48...
- Page 9 www.insigniarange.com Last Modified 08/02/2018 Pressure Requirements from your house supply We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump.
- Page 10 www.insigniarange.com Last Modified 08/02/2018...
- Page 11 www.insigniarange.com Last Modified 08/02/2018 Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled.
- Page 12 www.insigniarange.com Last Modified 08/02/2018 Step 1 You will have three back panels in three separate boxes. The panel with the control panel on is always the central panel. You will notice in the tray at the back there will be a round hole, which is for the hose going from the steam generator to the waste. Connect two of the back panels, as shown in the image.
- Page 13 www.insigniarange.com Last Modified 08/02/2018 Step 1 (continued) Take the third back panel and connect using the exact same process as the previous page.
- Page 14 (Rail with Insignia logo at the top) The uprights have the cut-out located at the top to allow the fitting of the roof, so make sure you connect the frame with the cut-out located at the top.
- Page 15 www.insigniarange.com Last Modified 08/02/2018 Step 4 Take the front frame and meet this to the back panels and screw together using the ST12 screws. Run a bead of silicone down the edge where you connect the frame and back panels shown on the diagram as red vertical lines.
- Page 16 www.insigniarange.com Last Modified 08/02/2018 Step 5 Take the 2 front glass panels and lay them down gently. Now attach the “U” shape rubber seal to one side of each panel and cut off any excess. Step 5 (continued) Now push the front fixed glass into the frames in the direction as shown by the below arrows and then fix into place using the PRC20 securing clips and ST12 screws...
- Page 17 www.insigniarange.com Last Modified 08/02/2018 Step 6 Align the roof into position and connect using the nuts, bolts and washers (B22/N6/SW9) connect the back panels to the roof. NOTE: If a small gap exists silicone seal later...
- Page 18 www.insigniarange.com Last Modified 08/02/2018 Step 7 it the adjustable wheels to the top and bottom of the glass doors and ensure the wheels are at their lowest position and hang on the inner curved rails with the wheels facing the outside of the glass. Please note the push button wheels are for the bottom.
- Page 19 www.insigniarange.com Last Modified 08/02/2018 Handles Ensuring that the inner thread is protruding out from the handle far enough, place the handle on the outside of the door and secure by tightening the inner chrome knob to the protruding inner thread Magnetic Seals (If not fitted) Push the magnetic door seal on the handle side of the glass door ensuring this is tightly fitted.
- Page 20 www.insigniarange.com Last Modified 08/02/2018 Accessory Installation Hand Shower Attach the chrome holder to the back wall via the 2 screws provided in the pack. Attach the chrome water outlet to the back of the centre column, fixing it from the rear with the plastic hex nut.
- Page 21 www.insigniarange.com Last Modified 08/02/2018 Ozone (o3) Unscrew the chrome pepper pot end and drop the white box upside down into the rear hole as shown in the image. Now from the inside of the shower re-attach the chrome pepper pot end and tighten. Monsoon Head Screw the threaded tube in to the top of the monsoon shower head and pass it up through...
- Page 22 www.insigniarange.com Last Modified 08/02/2018 Roof Lights The roof lights come packed in with your accessories and need to be inserted on site. On top of the roof there are 24 nuts, which simply need tightening by hand. Once this is done, the lights simply push onto the fitting.
- Page 23 www.insigniarange.com Last Modified 08/02/2018 Roof Cover (if supplied) Due to the different coloured light settings this shower model boasts, the wiring is inevitably bigger and more noticeable on top of the shower cabin. Because of this we have a cover that simply slots over the top, secured in place around the thread of the monsoon rain shower.
- Page 24 Monsoon Shower Hand Shower Device output may differ from the image. Please refer to your outer chrome faceplate inside your Insignia shower as a reference point. Body Jets Body Jets IF YOUR DIAL DOES NOT CORRESPOND TO THE APPROPRIATE DEVICE: Turn on your water to the shower and note which output the water exits from then turn off the water and swap over the relevant hose.
- Page 25 www.insigniarange.com Last Modified 08/02/2018 Electric Box Connections Connect the cables below to the corresponding devices on the shower Roof Light Antenna Speaker Speaker Thermostatic probe 12V power Supply...
- Page 26 www.insigniarange.com Last Modified 08/02/2018 Steam Generator Connections The steam generator has 3 connections. Steam Outlet: Connect the white insulated hose to the white steam pod within your shower. Make sure these are fitted in the correct position as they are on- ly attached for transportation reasons only.
- Page 27 www.insigniarange.com Last Modified 08/02/2018 Silicone Seal (vertical joints) RubberGum (horizontal joints) TESTING FOR WATER LEAKS LEAVE THE SHOWER 24 HOURS AFTER BUILD TO ALLOW SEALENT TO CURE AND ENSURE THE SHOWER IS AWAY FROM ITS FINAL POSITION TO ALLOW REAR VIEWING Ensure all connections are tight and sealed including the waste, body jets and steam outlet (model dependent) on your shower.
- Page 28 10 minutes. After this the screen will power off. To see our tutorial videos for operating this control panel’s features, please search for “Insignia Showers” on YouTube and find our “SUN Control Panel” Playlist, or you can...
- Page 29 www.insigniarange.com Last Modified 08/02/2018 Control Panel Instructions Connecting to Bluetooth Step 2 Step 1 Then simply go on your device and To connect a device via pair up with the shower which should be shown as “INS”. Once this is Bluetooth, press the music complete you will hear a beep to function button twice (which...
- Page 30 www.insigniarange.com Last Modified 08/02/2018 Need Help? Then simply download the following "Help" advice booklet found at this link below. This contains many useful items such as is your parts warranty registered, advice on cleaning / servicing your shower cabin, fault finding and many more items. This is a MUST to read and not just "HELP". It saves time in nearly all cases, avoiding contact with ourselves as most answers are there for a ready fix! Simply visit: www.insigniarange.co.uk/help.aspx...
- Page 31 External Items Framework SP074 Monsoon Shower head Part Code Part Description SP078 Ozone Module (for Steam Part Code Part Description Showers) INS9000-2 Roof SP302 White insulated pipe x2 SP048 Massage jet—2 open ends INS9000-3 Column (Blank) SP187 Drain Hose SP048A Massage jet—1 open, 1 closed...
- Page 32 All images are registered with ImageTraker Insignia™ is a registered trademark of Maclean International Ltd All images are subject to copyright. Images may not be used in any way shape or form with out written permission from Maclean International Ltd. Images are NOT permitted...
