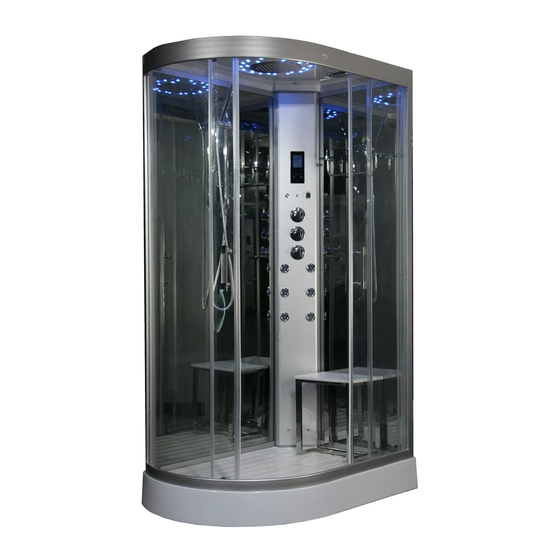

INSTALLATION MANUAL
INS5000R
. .
ATTENTION INSTALLERS:
These instructions must be
left with the customer
www.insigniarange.com
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!
WARRANTY REG NO: __________________________
To claim your full 5 year warranty, register your shower within 90 days of delivery at:
www.insigniarange.co.uk/warrantyreg.aspx. Standard 12 month warranty applies if outside this time period.
www.insigniarange.co.uk
30 Day Technical Support:
(NOTE: This service is only available to customers from the day of delivery,
please have your supplier's details and your postcode to hand before calling)
Replacements Parts:
inside of your warranty contact:
www.insigniarange.co.uk/customerService.aspx
Spares/Replacements Parts:
outside of your warranty
contact 0844 800 3069
01908 226545
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Insignia INS5000R
Summary of Contents for Insignia INS5000R
- Page 1 INSTALLATION MANUAL 30 Day Technical Support: 01908 226545 INS5000R (NOTE: This service is only available to customers from the day of delivery, please have your supplier’s details and your postcode to hand before calling) Replacements Parts: inside of your warranty contact: www.insigniarange.co.uk/customerService.aspx...
-
Page 2: Table Of Contents
www.insigniarange.com Last Modified: 18/12/2017 Contents Introduction Electrical Requirements What’s In The Boxes? Screw Pack Contents Plumbing Requirements Schematics Starting The Installation Electric Box Connections Steam Generator Connections Sealing and Water Testing Control Panel Instructions Parts List... - Page 3 Last Modified: 18/12/2017 Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that will last for many years to come! Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of your finish.
- Page 4 DURING BUILD, LIKE ALL SHOWERS CORRECT SEALING IS IMPERATIVE. If you are using Insignia’s RubberGum, please ensure the product does not come in contact with your silicone as this will cause the RubberGum to fail and will not adhere as intended.
- Page 5 www.insigniarange.com Last Modified: 18/12/2017 Tool Requirements None Supplied Scissors Stanley Blade Silicone Gun Spirit Level Tape Measure Philips Screwdriver Electric Drill Adhesive Requirements Bacteria Resistant Sanitary Silicone - (for vertical joints) RubberGum Plumbers Mait (for waste joints) Not Supplied Supplied Not Supplied Hardware Requirements A Steam Shower requires 3 x 1 Metre Braided Hose...
-
Page 6: Electrical Requirements
www.insigniarange.com Last Modified: 18/12/2017 TOTAL ELECTRICAL REQUIREMENTS Voltage Rating 220 -240AC Frequency Rating 50HZ Power Rating 2.8KW Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation. UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!! Note for electrician. This product comes with 13 amp plug(s) fitted with an RCD unit. We leave it this way for you to connect this your own way due to continued additions to current regulations. -
Page 7: What's In The Boxes
www.insigniarange.com Last Modified: 18/12/2017 Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word “DRY RUN”... - Page 8 Note: In some cases you may have more screws than needed, this is done so you have spares! VERY IMPORTANT Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been checked and is present.
- Page 9 www.insigniarange.com Last Modified: 18/12/2017 Pressure Requirements from your house supply We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump.
- Page 10 www.insigniarange.com Last Modified: 18/12/2017...
- Page 11 www.insigniarange.com Last Modified: 18/12/2017 TO START Make sure you have a clear space, remember when finished and in place you need access to check your build and able to pull the shower out for servicing or should you have the need to replace anything! Take the shower tub and remove all the protective wrapping and fit the waste.
- Page 12 www.insigniarange.com Last Modified: 18/12/2017 Step 2 Now attach the large back panel to the column. Once you are happy with the alignment, run a bead of silicone up the edge and apply Rubbergum along the bottom of the pan- els and screw together using the ST20 Step 3 Front Fixed Uprights.
- Page 13 www.insigniarange.com Last Modified: 18/12/2017 Step 3 (Continued) Please Note: With the groove sitting on the tray, you need to have the “U” shaped channel facing inwards to allow the glass to be inserted correctly. Step 3 (Continued) The next step is to attach both front uprights to the curved rails using the ST35 screws as shown in the picture to the left PLEASE NOTE The screw head needs to bypass the OUTER hole.
- Page 14 www.insigniarange.com Last Modified: 18/12/2017 Step 4 Now attach your front metal work to the fitted back panels. Once you are happy with the alignment, run a bead of silicone up the edge and apply Rubbergum along the bottom of the pan- els and frame and screw together using the ST20 Step 5 Next attach the “U shape”...
- Page 15 www.insigniarange.com Last Modified: 18/12/2017 Step 6 With the frame now attached to the back panels, locate and fix the glass panels into place by pushing them as per the arrows in the adjacent image Making sure the edge of the glass with the rubber seal fits into the Step 7 Using the ST25 screws, ensure the back panels are square and you are happy with the position of the panels then screw into place...
- Page 16 www.insigniarange.com Last Modified: 18/12/2017 Step 8 Next locate the roof into position. Once you are happy with the positioning of this, screw into place using the ST25 screws, Step 9 Fit the adjustable wheels to the top and bottom of the glass doors and ensure the wheels are at their lowest position and hang on the inner curved rails with the wheels facing the outside of the glass.
- Page 17 www.insigniarange.com Last Modified: 18/12/2017 Accessory Installation Please Note Ensure all grey backing film on the rear of the glass panels are pierced through the existing glass holes with a knife to provide an efficient smooth fitting and location of the accessories. We recommend using a screwdriver on the smaller holes.
- Page 18 www.insigniarange.com Last Modified: 18/12/2017 Door Seals Magnetic Seal: Push the magnetic door seal on the handle side of the glass door ensuring this is tightly fitted. Rear Door Seal: Place the rear door seal on the opposite side to the magnetic strip ensuring the flap is facing the fixed glass panel Thermostatic Probe Insert the chrome sleeve into the hole situated below the control panel and secure...
- Page 19 www.insigniarange.com Last Modified: 18/12/2017 Roof Lights The roof lights come packed in with your accessories and need to be inserted on site. On top of the roof there are 24 nuts, which simply need tightening by hand. Once this is done, the lights simply push onto the fitting.
- Page 20 Connect the hoses to the corresponding inlets on the back of the shower. Device output may differ from the image. Please refer to your outer chrome faceplate in- side your Insignia shower as a reference point. IF YOUR DIAL DOES NOT CORRESPOND TO THE APPROPRIATE DEVICE: Turn on your water to the shower and note which output the water exits from then turn off the water and swap over the relevant hose.
-
Page 21: Electric Box Connections
www.insigniarange.com Last Modified: 18/12/2017 Electric Box Connections Roof Light Antenna Speaker Speaker Ozone Thermostatic probe 12V power Supply... -
Page 22: Steam Generator Connections
www.insigniarange.com Last Modified: 18/12/2017 Steam Generator Connections The steam generator has 3 connections. Steam Outlet: Connect the white insulated hose to the white steam pod within your shower. Make sure these are fitted in the correct position as they are only attached for transportation reasons only. - Page 23 www.insigniarange.com Last Modified: 18/12/2017 Silicone Seal (vertical joints) RubberGum (horizontal joints) TESTING FOR WATER LEAKS LEAVE THE SHOWER 24 HOURS AFTER BUILD TO ALLOW SEALENT TO CURE AND ENSURE THE SHOWER IS AWAY FROM ITS FINAL POSITION TO ALLOW REAR VIEWING Ensure all connections are tight and sealed including the waste, body jets and steam outlet (model dependent) on your shower.
-
Page 24: Control Panel Instructions
Then simply go on your device and pair up with the shower which will be named as “INS”. please search for “Insignia Showers” on YouTube and find our “SUN While your Bluetooth device is connected, use the music function button to pause and resume your Control Panel”... - Page 25 Once your control panel has been switched off the 03 system will automatically start and you will see “03” on your control panel. To see our tutorial videos for operating this control panel’s features, please search for “Insignia Showers” on YouTube and find our “SUN Control Panel” Playlist, or you can click here...
- Page 26 www.insigniarange.com Last Modified: 18/12/2017 Need Help? Then simply download the following "Help" advice booklet found at this link below. This contains many useful items such as is your parts warranty registered, advice on cleaning / servicing your shower cabin, fault finding and many more items. This is a MUST to read and not just "HELP". It saves time in nearly all cases, avoiding contact with ourselves as most answers are there for a ready fix! Simply visit: www.insigniarange.co.uk/help.aspx...
-
Page 27: Parts List
www.insigniarange.com Last Modified: 18/12/2017 Parts List Framework (Left hand) Internal Items Part Code Part Description Part Code Part Description SP301 White insulated pipe INS5000L—13 Left Upright (straight) SP074 Monsoon Shower head SP037 Speaker x 2 SP227 Microphone shower head INS5000L-3 Right Upright (Angled) SP078 Ozone Module (for Steam... - Page 28 All images are registered with ImageTraker Insignia™ is a registered trademark of Maclean International Ltd All images are subject to copyright. Images may not be used in any way shape or form with out written permission from Maclean International Ltd. Images are NOT permitted...
