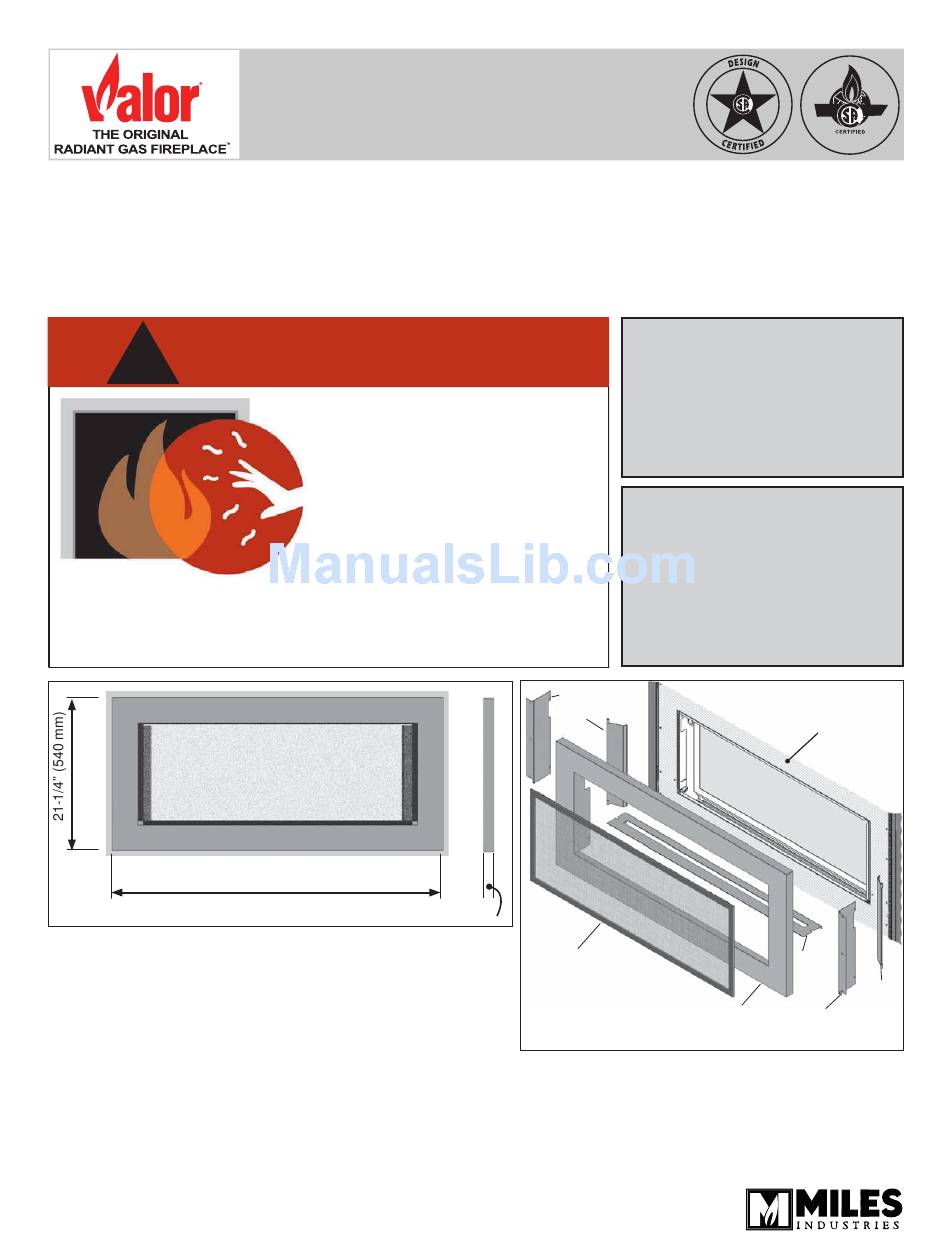

Miles Industries 1550LFBv2 Installation Instructions Manual

L1 series, 1550v2 linear 3-1/2” surround kit
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

1550v2 Linear 3-1/2" Surround Kit
Approved for use with Valor Models 1500 and 1600 Heaters ONLY
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
46-3/16" (1173 mm)
Trim size
The 1550v2 Linear 3-1/2" Surround Kit is designed to be
used on the Linear L1 1500 and Linear L1 2-sided 1600
Valor heaters.
The application of this kit does not affect the venting
capabilities or method of preparation of the heater as
described in the heater installation manual.
This trim fi ts fl at against the cement board with the ability
to tuck additional non-combustible materials up to 1/2
inch thickness behind the trim.
Replacing the side panels on the trim allow non-
combustible material thickness to be increased to 1 inch.
4005356-01
© Copyright Miles Industries Ltd., 2015.
L1 S
ERIES
(1550LFBv2, 1550LFPv2, 1550LFZv2)

Installation Instructions

HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
1-3/8" (35 mm)
Thickness
I NS TAL LE R
Leave this manual
with the appliance.
CO NS UM E R
Retain this manual for
future reference.
Notes: This kit must be installed
or serviced by a qualifi ed installer,
service agency or gas supplier.
These instructions are to be used
in conjunction with the main
installation instructions for the
above listed heater models.
LH Trim panel
LH Side door
Barrier screen
Overview (Fireplace engines sold separately)
Non-combustible
cement board
Plinth
RH Side
door
Trim
RH Trim panel

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1550LFBv2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Miles Industries 1550LFBv2

  • Page 1: Installation Instructions

    This trim fi ts fl at against the cement board with the ability to tuck additional non-combustible materials up to 1/2 inch thickness behind the trim. Replacing the side panels on the trim allow non- combustible material thickness to be increased to 1 inch. 4005356-01 © Copyright Miles Industries Ltd., 2015.
  • Page 2: Installation

    Considerations—fi nish wall thickness Installation This trim can be adjusted according to the thickness 1. Locate trim inside perimeter of ‘window’ aperture of the non-combustible wall fi nish. Two options of fl anges, press fi rmly against fi nished face of wall. installation can be used: •...
  • Page 3 3. Position plinth in space between glass and trim, 4. Identify left hand door and its orientation according locate ends onto end support. Ensure plinth is level to the images below. with trim. Left door Notes : TOP of door: - The opening in the plinth should be oriented as this space is shown below to allow air to enter while obstructing...
  • Page 4: Maintenance

    Installation of the barrier screen Removing the screen 1. Hold the screen on the sides and locate the top into The barrier screen will need to be removed to access the channel inside the top section of the surround. the fi replace controls or for maintenance. To remove the screen, hold both fi...
  • Page 5: Repair Parts List

    Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel.
  • Page 6: Directives D'installation

    fi nition incombustible jusqu’à 1/2 pouce (13 mm) d’épaisseur couvrant le panneau de béton. L’épaisseur peut-être augmentée à 1 pouce (26 mm) en remplaçant les panneaux des côtés de la bordure (inclus). © Miles Industries Ltd., 2015.Tous droits réservés.
  • Page 7 Considérations—épaisseur de la fi nition du mur Installation Cette bordure est ajustable selon l’épaisseur du mur in- 1. Placez la bordure dans le périmètre de l’ouverture combustible fi ni. Deux options d’installation sont offertes : du foyer et poussez-la fermement contre la surface du mur fi...
  • Page 8 3. Placez la plinthe dans l’espace entre la fenêtre et la 4. Identifi ez la porte gauche et son orientation selon bordure. La plinthe repose sur le rebord au bas de les images ci-dessous. la bordure; assurez-vous que le bord de la plinthe Porte gauche est égal au bord de la bordure.
  • Page 9 Installation du pare-étincelles Enlèvement du pare-étincelles 1. En le tenant par les côtés, insérez le haut du pare- Le pare-étincelles doit être enlevé pour avoir accès aux étincelles dans la rainure de la bordure. commandes du foyer ou pour l’entretien. Pour enlever le pare-étincelles, soulevez-le à...
  • Page 10: Liste De Pièces

    Parce que nous favorisons une politique de développement continu, certains détails de la présente publication peuvent varier. Conçue et fabriquée par / pour Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1 Tél. 604-984-3496 Téléc. 604-984-0246...
