2.6.4 Erasing Data

1. Turn on the microAeth.
2. Start the microAethCOM software.
3. Connect the USB cable to the microAeth and the
computer. Wait until the microAeth establishes
communication with microAethCOM.

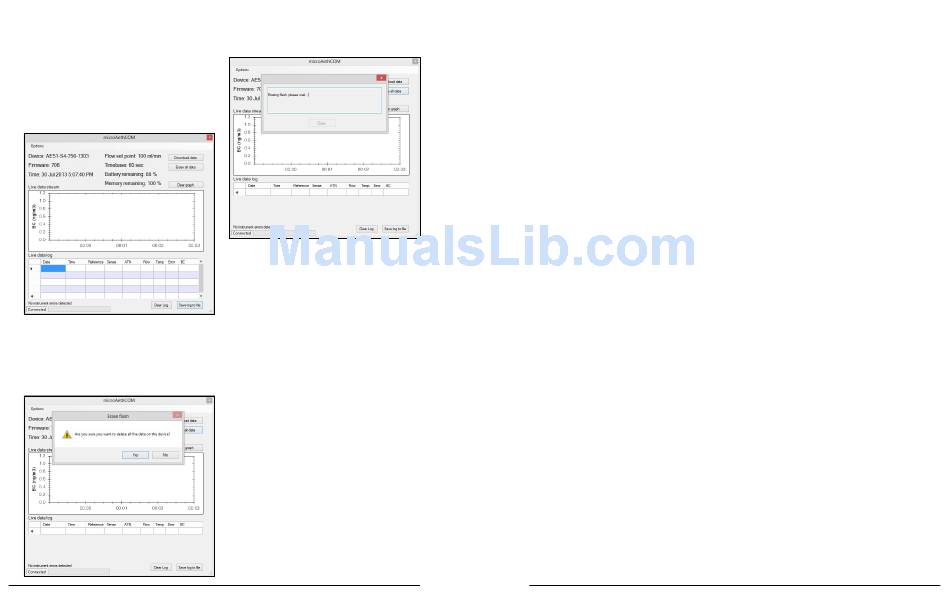

4. Click the Erase all data button to erase all
the data stored on the internal memory of the
microAeth.
5. You will be prompted to confirm to erase all the
data stored on the microAeth.
20 microAeth Model AE51 Operating Manual
®
6. Wait until the data erase has completed. The
status window will show that the memory is
being erased.
7. The status window will disappear when the
memory has been erased.
2.6.5 Viewing and/or Analyzing
Measurement Data
Data files are named using the following naming
convention: AE51-SX-XXX-YYYYMMDD, where XXX
is the instrument unique indentifer number. Data
files are formatted such that they can be imported
directly into Microsoft Excel or can be uploaded
®
to the AethLabs website. Please note that when
opening data files in Microsoft Excel , formatting
®
may automatically be changed, making it difficult to
upload to the website.
AethLabs

2.6.6 Data File Structure

The data files are plain text with the extension .dat or .csv. The file consists of a header containing descriptive
information; a line identifying the columns; and then a number of data lines with each item separated by a
semicolon or comma depending on the file format chosen at the time of download.
An example of the header is:
AethLabs
Device ID = AE51-S4-558-1204
Application version = 2.1.0.1
Flow = 100 mlpm
TimeBase = 60 s
Date(yyyy/MM/dd);Time;Ref;Sen;ATN;Flow (ml/min);Temp(C);Status;Battery(%);BC(ng/m
The first line of data does not contain the final BC calculation; all subsequent lines show this expressed in
units of ng/m of BC. A typical excerpt of data lines is shown below:
3
2013/11/21;19:23:00;863225;757274;13.10;100;21;0;100;
2013/11/21;19:24:00;863340;757283;13.11;100;21;0;100;689
2013/11/21;19:25:00;863181;757035;13.12;100;21;0;100;814
2013/11/21;19:26:00;863267;757011;13.13;96;21;0;100;777
2013/11/21;19:27:00;863174;756844;13.15;96;21;0;100;668
2013/11/21;19:28:00;863296;756846;13.16;101;21;0;100;780
2013/11/21;19:29:00;863147;756605;13.17;101;21;0;100;820
2013/11/21;19:30:00;863185;756542;13.19;101;21;0;100;716
2013/11/21;19:31:00;863234;756491;13.20;97;21;0;100;727
2013/11/21;19:32:00;863208;756377;13.21;97;21;0;100;706
2013/11/21;19:33:00;863222;756289;13.22;101;21;0;100;746
2013/11/21;19:34:00;863180;756154;13.24;101;21;0;100;730
2013/11/21;19:35:00;863105;755996;13.25;99;21;0;100;700
2013/11/21;19:36:00;863155;755952;13.26;100;21;0;100;660
2013/11/21;19:37:00;863094;755796;13.28;100;21;0;100;771
2013/11/21;19:38:00;863228;755827;13.29;98;22;0;100;662
2013/11/21;19:39:00;863089;755603;13.30;100;22;0;100;769
AethLabs
3 )
microAeth Model AE51 Operating Manual 21
®
