Summary of Contents for CellarPro AH3500

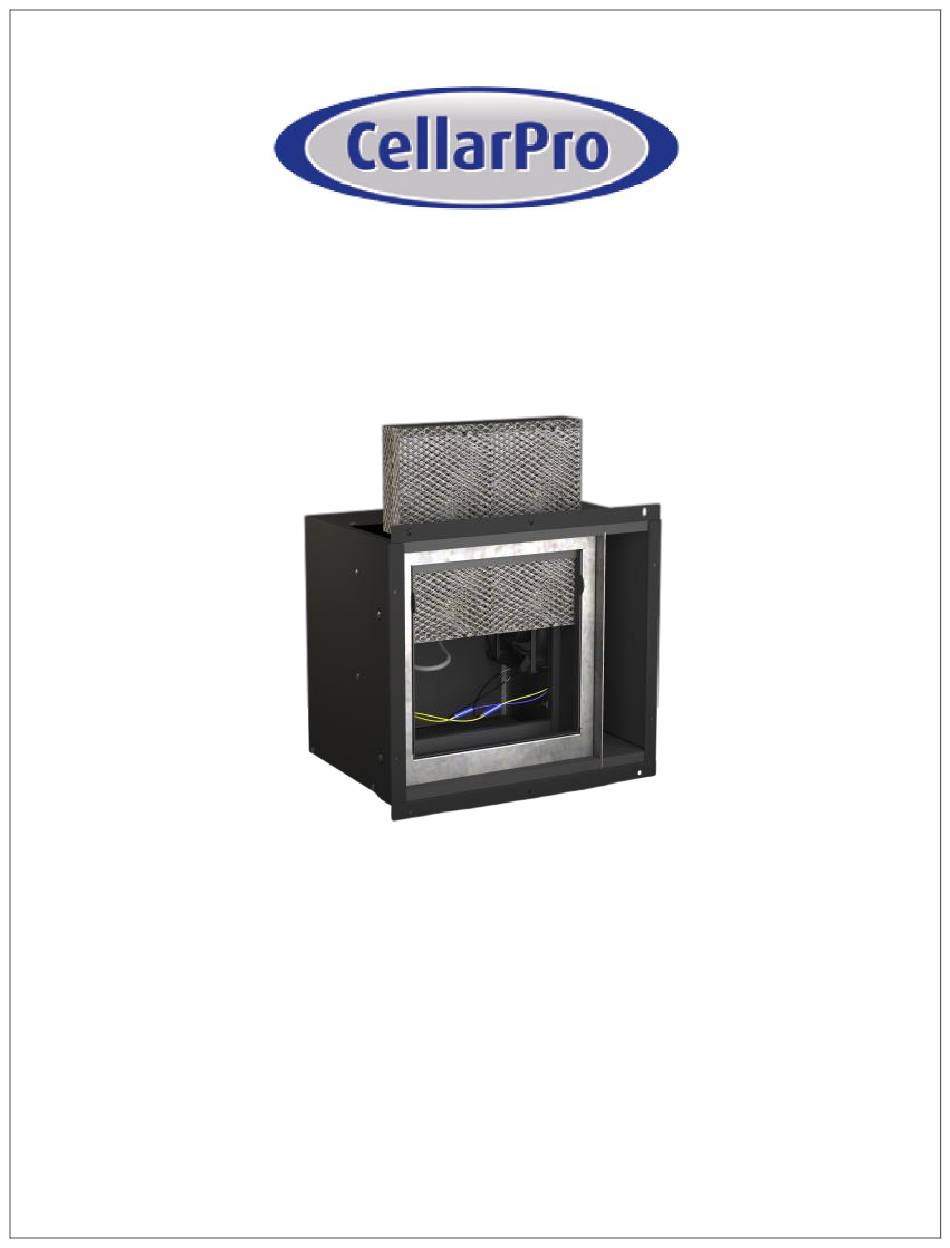

  • Page 1 Air Handler Integrated Humidifier AH3500 / AH4500 / AH6500 / AH8500...
  • Page 2 [ This page intentionally left blank ]...
  • Page 3 Specifications and Cut Sheets General Description: The CellarPro Humidifier is designed to mount directly to the evaporator module of any AH 3500, 4500, 6500, and 8500 series cooling unit. The humidifier is designed to increase the cellar humidity level above a 50% threshold where wine bottle storage is more stable for preserving the corks.
  • Page 4 Evaporative pad type humidifiers require a constant flow of water over the pad when the humidifier is on to keep the water pad saturated and flush minerals and solids through to the drain. The water supply is regulated by an internal orifice inside the humidifier, and will produce a continuous flow through to the drain line of approximately 3.45 gallons of water per hour during humidification.
  • Page 7: Installation Instructions

    Installation Instructions Step 1: Preparing the humidifier module for mounting. Remove the humidifier module from the box. On the open side of the unit, locate the black “80” and white “81” power supply leads. Humidifier Water panel Important: Note orientation of water panel.
  • Page 8 Step 3: Making the electrical connection to the Air Handler. Connect humidifier power leads - black "80" to black, white "81" to white. Secure with cord clamp. Feed power leads from evaporator module through to humidifier and plug into power leads from humidifier.
  • Page 9 Attach screws through left and right mounting brackets to humidifier housing, (2) screws per bracket. Step 5: Connecting the water supply to the humidifier. Install 1/4" copper water line using compression fitting and flare nut to the water connection on the bottom of the humidifier.
  • Page 10 Step 6: Setting up the excess humidifier water drain. The humidifier filter pad will have a continuous supply of excess water which will flow out of the drain. The diagram below shows how the drain should be located for the various configurations.
  • Page 11 Step 7: Check water panel via access cover. Once the humidifier module has been installed onto the evaporator unit, remove the screws from the top access cover of the humidifier to check the internal components. Ensure the water panel is clipped into place, that the water discharge tube inserts into the water panel top opening, and the water panel bottom drain is aligned with the housing drain.
  • Page 12 Step 9: Getting started. Power up the unit and set the humidistat to turn the humidifier on, and verify that water is flowing through to the drain. The humidifier is now ready to put into service.
  • Page 13 Operating Instructions The humidifier is controlled by the remote humidistat located in the cellar. The only function enabled on the controller is humidity. The humidistat displays temperature in addition to relative humidity; however the cooling unit temperature control is managed by the primary temperature controller. The humidistat controller will have no effect on the air handler temperature settings for the cellar.
  • Page 14 "Auto" runs the humidifier automatically based on the set-point, "Off" turns the humidifier off. To turn the humidifier off, press the “System” button until the following screen is shown: To set the humidifier to “Auto”, press the “System” button until the following screen is shown:...
  • Page 15 Operating Guidelines Region 1: Initial Cellar Startup As the temperature pulls down, the relative humidity rapidly increases from the base humidity level. This increase in humidity will happen naturally, so for a faster pull down it is strongly recommended that the humidifier not be turned on until the cellar pulls down to the set point temperature.
  • Page 16 Clean the frame of mineral deposits. Replace the water panel evaporator with a replacement water panel from CellarPro. Slide the water panel back into the frame (5) and snap the distribution tray cover into the distribution tray (3). Finally, snap the distribution tray back onto the frame.
  • Page 17: Troubleshooting

    Troubleshooting Issue: Cellar humidity does not reach desired set point Diagnostics Is the display on the humidistat illuminated? Is the humidistat Proceed to Humidifier Power and Water Supply Check set to "Auto" and See instructions for setting the humidistat to "Auto" and the set point at the changing the set point.
  • Page 18: Warranty

    Warranty Please refer to the warranty section in the Air Handler Manual for the terms and conditions of the warranty for this product.
