- Page 1 MB 2100 & 2100-BL Portable mini-console U s e r m a n u a l Solidyne SRL 3 de Febrero 3254 (CP 1429) Bs.As. - Argentina...
- Page 2 Page 2 MB-2100 Portable mini-console SOLIDYNE...

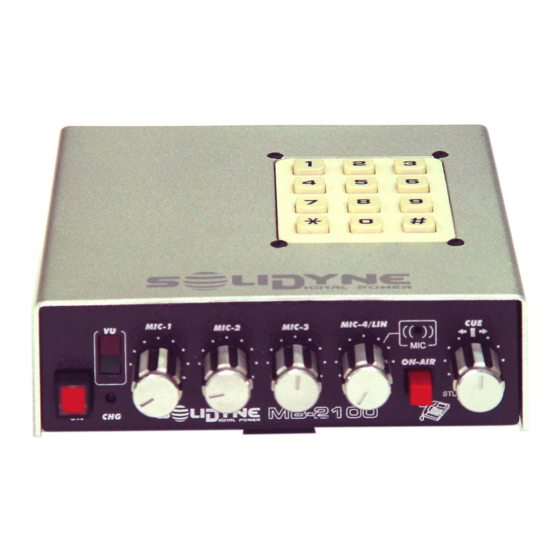

- Page 3 1 warranty certified. O v e r v i e w 1.1 Features The Solidyne MB-2100 mini-console was designed to provide low cost professional solution for those using the cell phone as a microphone at outdoors transmissions. We know that no matter how expensive it is, a cell phone used in this way does not provide the sound quality or the professional image that your station needs.
-
Page 4: Power Source
20 to 25 hours. 1.1.1 Inputs • 3 inputs for dynamics microphones, 1/4” TRS female jack. Non-saturation pre-amplifiers with “local- feedback” technology by Solidyne. • 1 line input (mono), compatible with headphone output of portable players. •... - Page 5 Its small size and low weight (only 600 gr) make it very comfortable to operate. 1.1.5 Connectivity Link with cell phone via Bluetooth (MB 2100-BL models). Link with cell phone via hands-free connector. DTMF keypad to dial up with land-lines.
- Page 6 Page 6 MB-2100 Portable mini-console SOLIDYNE...
-
Page 7: Microphone Inputs
If you connects an stereo signal to line input, take in mind that this input monoaural, since only one channel will be used. You can use a plug-plug stereo cable since at the console the ring (right channel) is unconnected. SOLIDYNE MB-2100 Portable mini-console Page 7... -
Page 8: Headphones Output
CUE, which select the source and adjust the volume simultaneously. With CUE knob at center will not output audio. Turning toward MIXER increase the audio level Page 8 MB-2100 Portable mini-console SOLIDYNE... - Page 9 (recommended). Both signals are sent to studios via land line. The RJ-11 connections are: Sin conexión LINEA LINEA Sin conexión RJ11 connections to land line. This is the a standard cable for lannd lines. SOLIDYNE MB-2100 Portable mini-console Page 9...
- Page 10 2 seconds (5 sec approx) Bluetooth changes to “discovery” mode (toggling green and red). At the cell phone, search for Bluetooth devices. This procedure varies by brand and model cell, see the instruction manual of phone. Page 10 MB-2100 Portable mini-console SOLIDYNE...
- Page 11 If you use another cell phone with the console, you needs to set the Bluetooth level again. To turn off MB-2100's Bluetooth, press and hold “#” y “9” until the LED turn off. SOLIDYNE MB-2100 Portable mini-console Page 11...
-
Page 12: Wired Cellular: Hands Free Adapter
The console sends PGM signal to the cell, which transmits to the radio. The radio sends back to the telephone, which enters through the cell phone to the console and sent to the headphone mix Page 12 MB-2100 Portable mini-console SOLIDYNE... -
Page 13: Receiving At The Studios
At the Studios, the signal of MB-2100 is received using a standard telephone hybrid. To achieve good results it is recommended to use professional quality equipment. Solidyne provides high quality telephone hybrid, both rack- mount units (Series HL-202 and Bluetooth HL-203VQ) and built-in systems into the on-air consoles. - Page 14 Page 14 MB-2100 Portable mini-console SOLIDYNE...
-
Page 15: Program Mixer
This signal is sent to the radio through the telephone line (land line or cellular exit) and BAL OUT output. It is also sent to the section MIXER at headphone's CUE knob. SOLIDYNE MB-2100 Portable mini-console Page 15... -
Page 16: Signal Level Indicator
The green LED illuminates when the signal level is below the action of the compressor. When the signal begins to compress, red LED lights. The higher compression will produce more brightness red LEDs. Page 16 MB-2100 Portable mini-console SOLIDYNE... -
Page 17: Dynamic Range Compression
Land line Take the line by pressing the PHONE button and dial the destination number using the console's DTMF keypad. Once the communication, can talk with studies SOLIDYNE MB-2100 Portable mini-console Page 17... - Page 18 (usually) are disconnected. If communication is lost, you must remove the cable from the phone to make the call again. You can also wait for the Studios call you . As the cell Page 18 MB-2100 Portable mini-console SOLIDYNE...
- Page 19 ON-AIR to make or receive another call from the associated phone set. If you receive a call from the radio you can answer directly from the console by pressing ON-AIR, without using the associated phone. SOLIDYNE MB-2100 Portable mini-console Page 19...
- Page 20 Page 20 MB-2100 Portable mini-console SOLIDYNE...
- Page 21 The console includes a multivoltage 90 V to 240 V Battery charger battery charger, with automatic voltage selection MB 2100 works continuously during 16 hours. Can be Battery duration charged in one night Dimensions: 121 mm x 129mm x 37 mm Dimensions &...
