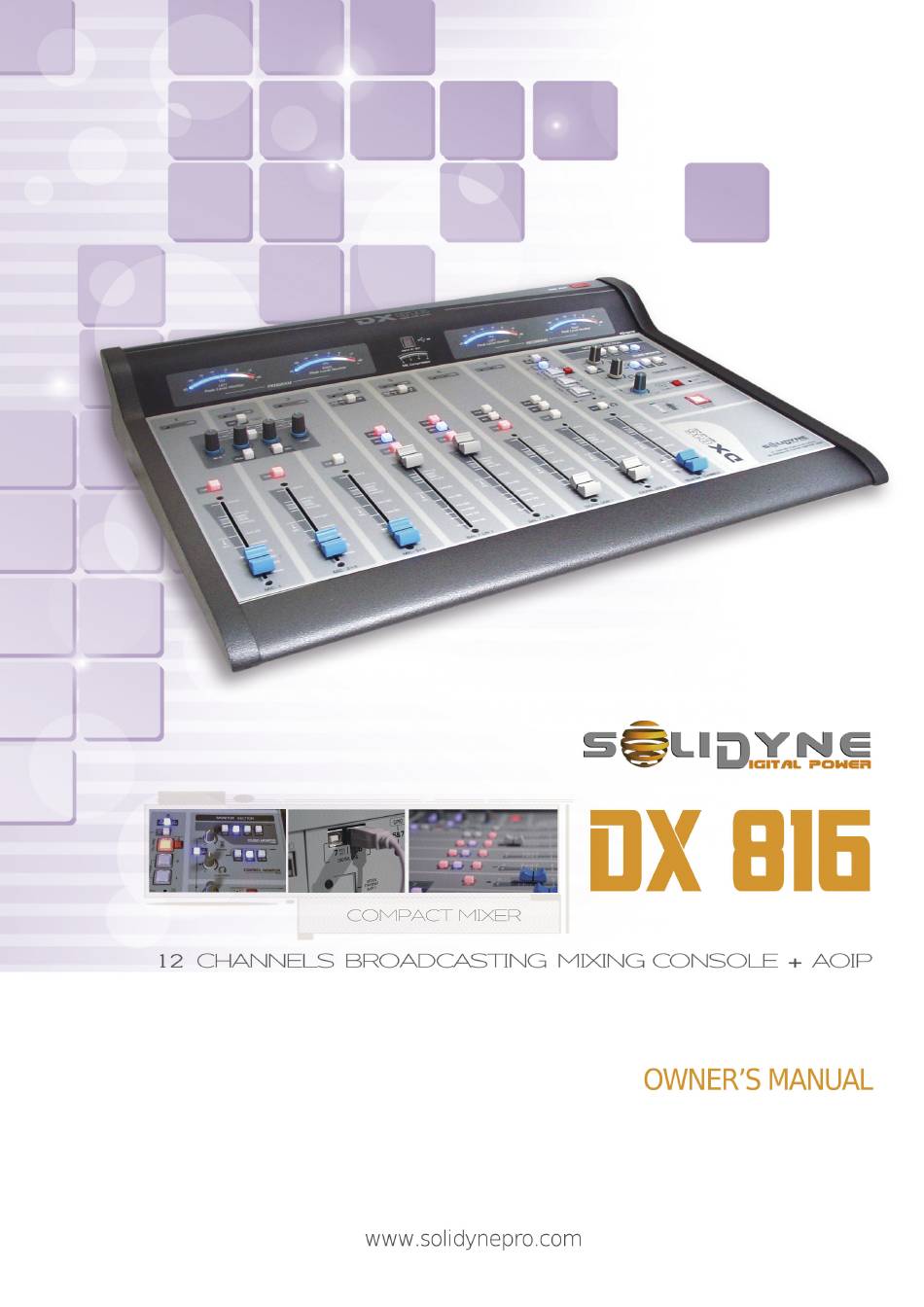

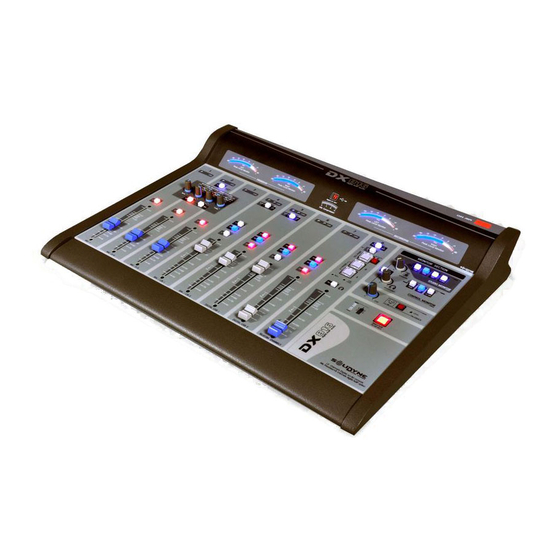

Owner's Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Solidyne DX 816
Summary of Contents for Solidyne DX 816
- Page 2 SOLIDYNE Page 2 DX·816 - Broadcast mixing consoles...
-
Page 3: Table Of Contents
2.6 Connecting standard lines......10 3.6.2 Recording callings............25 2.6.1 Rejection factor (Null)..........10 2.6.2 CONNECTING A CELL PHONE........10 4. Solidyne HD3 & HD5 monitoring docks..26 2.6.2.1 Re-connect a paired phone..........11 2.6.2.2 Set up the level...............11 4.1 Features............26 2.6.2.3 Turn off Bluetooth at the console........11 4.2 Solidyne HD3..........26... -
Page 4: About This Manual
Introduction Welcome to DX816 User Manual! REVISION 18.03, March 2018 Solidyne DX816 console is a compact, solid and ele- What’s in the box gant unit; with a great flexibility. It includes USB digi- tal I/O which brings digital link with the computer;... -
Page 5: Overview
1. Overview 1.1 Inputs 1.2 Outputs The Solidyne DX816 has 5 microphone inputs. In- The mixer Solidyne DX-816 has two main outputs: puts MIC-1 to MIC-3 has 48V phantom power. Us- PGM (program) and REC (recordings). ing dual pre-amplifiers and audio compressors DX816 can manage 5 MIC channels on 3 faders. -
Page 6: Gpio
“MICs on air” to the audio processor, in order Into the Studio, a headphone amplifier (optional to switch the audio processing preset to a voice item Solidyne HD3 & HD5) is in charge of manage profile. the signals of the loudspeakers monitors and headphones (see 2.5.1 –... -
Page 7: Power Source
USB A/B. Ports 1.1 or 2.0 are supported. Figure 3: Inputs at rear panel 2.3.1 Line inputs The Solidyne DX816 has several inputs. Inputs ‘BAL- LINE’ are simetrycal balanced. Inputs “LINE” are un- Figure 4: USB A/B balanced. Inputs DIG are USB. The channels 4 and 5... -
Page 8: Microphones Inputs
USB microphone) and click [Properties]. Then select the tab "Advanced", display the menu of formatting options and choose a format for stereo recording (2 channels, 16 bits, 44100Hz). Figure 6: Rear panel: outputs, phone lines, AoIP SOLIDYNE Page 8 DX·816 - Broadcast mixing consoles... -
Page 9: Program And Recording
“4.- Monitoring docks to carry out the analog signal to the audio proces- Solidyne HD3 & HD5” sor or to an STL. The audio processors Solidyne 362HD and 542APC comes with RJ45 balanced in- STUDIO MONITOR OUT puts, which simplifies the wiring. -
Page 10: Tally Light
The hybrid channel manages two land lines (POTS) and one cell phone linked by Bluetooth. Any Bluetooth cell phone can be linked to Solidyne DX816. While the phone can be up to 5 meters On the rear panel there are four RJ11: Two for the... -
Page 11: Re-Connect A Paired Phone
The DX816 series has send and return for external manual of the cell phone). hybrid. “External Hybrid” [8] uses a female ¼” TRS 4. The ID of the Solidyne DX816 is now stored (Jack) that send signal (PGM) through the “tip” and in the cell phone. -
Page 12: Models Dx816/Aoip
Table 3 – GPIO The file IP.exe is a self-extracting ZIP. When the user runs this file, a folder “Solidyne IP Discovery” creates on the HD. This folder contains the apps and instructions needed to know the IP 2.8 Models DX816/AoIP address. -
Page 13: Audio Options
To start to play in VLC go to Media –> Open network In URL enter: [protocol]://[sourceIP]:[port] For example: RTP://0.0.0.0:3030 In where RTP is the protocol used by the Solidyne DX816/AoIP; 0.0.0.0 means from any incoming IP and '3030' is the port used. Remember to set the firewall to allow incom- ing streaming trough port 3030 (or the port that you use). -
Page 14: Connections
2.9 Connections SOLIDYNE Page 14 DX·816 - Broadcast mixing consoles... -
Page 15: Grounding Connection Diagram
2.10 Grounding connection diagram SOLIDYNE DX·816 - Broadcast mixing consoles Page 15... -
Page 16: Using The Dx816
Dynamic compression applies only for the MIC channels. Digital USB channels connects directly to the computer, managing two stereo signals. In addi- tion; USB connection send to the computer the mixes PGM (channel 6) and REC (channel 7). SOLIDYNE Page 16 DX·816 - Broadcast mixing consoles... -
Page 17: Hybrid & Telco
3.2.1.2 Case B: The producers team or telephonist by many radio stations outside rush hour). answer the calls B) A producer/telephonist answer the calls. In the Production Room there will be two phones “Phone-1” and “Phone-2”, each one SOLIDYNE DX·816 - Broadcast mixing consoles Page 17... -
Page 18: Return To Phone Line
So in TAKE IN MIND Solidyne hybrids we use a processed return chan- nel, to avoid distortion at the on-air signal. There Please be careful with the on-air level of the callings. Due... -
Page 19: Pgm/Rec
In Solidyne obviously, we keep a high grade of ex- When a call incomes, the 'ringing' listen si- • cellence in the audio quality of the hybrid on-air multaneously on the cell phone and on sound. -
Page 20: Make A Call From Cell Phone
Skype (using NOTES the bus REC). Note that when local journalists speak- ing, the VU meters on PGM and REC reacts at the same time. SOLIDYNE Page 20 DX·816 - Broadcast mixing consoles... -
Page 21: Make A Conference Between Skype (Or Similar), Land Lines And Cell Phone
TELECOM signal. This way ev- similar), land lines and cell phone eryone are in conference. The Solidyne DX816 allows maximum flexibility to generate a virtual forum between journalists and in- WARNING terviewees, very far apart. For this proceed as fol- DON'T SEND BACKGROUND MUSIC TO SKYPE. -
Page 22: Loudspeakers Monitors And Headphones
CUE (the knob “Speakers” do not into the Studio, a headphones amplifier unit must affect the CUE signal). be added. Solidyne offers the modules HD3 and HD5. HD5 manages up to 5 headphones with two ... -
Page 23: Microphones Channels
3.4.1 Features The GAIN presets must be settled in ordet to the main The Solidyne DX816 has 3 mic channels, but allows to fader works over the indication “OVL” (-30 dB). connect up to 5 microphones at the rear panel (see “2.2.2.3 –... -
Page 24: Line Channels
COMPRESSOR” shows in dB the gain reduction ap- plied to the signal. 3.5 Line channels The Solidyne DX816 has four stereo LINE channels. Line channels have two stereo inputs. Channels 4 & 5 have balanced stereo inputs (RJ45 connector) and unbalanced stereo inputs (RCA), commutable from the frontal panel. -
Page 25: Recordings
(REC) are available in digital format, through con- Hybrid & Telco”. Assign the monitoring to REC to lis- nections USB. When USB connects, Windows© will ten to the comunication (see previous issue). SOLIDYNE DX·816 - Broadcast mixing consoles Page 25... -
Page 26: Solidyne Hd3 & Hd5 Monitoring Docks
4. Solidyne HD3 & HD5 monitoring docks 4.1 Features 4.3 Using the monitoring docks The optional accessories Solidyne HD3 and HD5 are About the headphones at the Studio compact docks that concentrates all connections The dock HD5 can manage up to 5 headphones, and needed to the monitoring at the Studio. -
Page 27: Maintenance
This Agreement will be sent fader technology with more than ten million opera- by FAX to Solidyne (5411 4702-2375) in paper letter- tion guarantee (usually 15 years of use). Please see head of the radio and signed by its Director or Gen- more information at www.solidynePRO.com... -
Page 28: Technical Specifications
20-20.000 Hz +/- 0.5 dB (LIN to PGM) ON-AIR signal output (turns on when MIC is open). Tubular connector 2.1 mm (internal pin). 12 V CC @ 0,15 amp (two Solidyne On-Air lights). MIC EQs 4 bands. 80 Hz top flat curve, 160 Hz bell shaped, 6,3 KHz POWER SUPPLY bell shaped, 8 kHz top flat.
