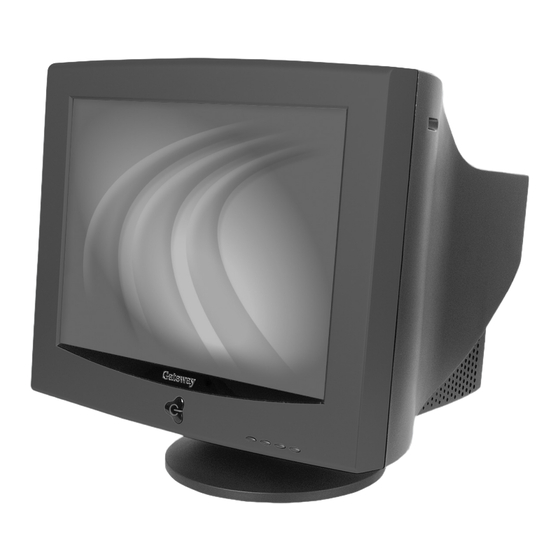

Gateway VX755 Monitor • Setting up the monitor • Adjusting the settings • Maintenance • Troubleshooting • Specifications... -
Page 5: Setting Up The Monitor
Setting up the monitor Read all instructions before using the monitor and save them for later use. Follow all warnings and instructions marked on the product. To set up the monitor: ■ Attach the base ■ Connect the video and power cables To attach the base: Carefully set the monitor on its side. - Page 6 To connect the video and power cables: Position the monitor and your computer so you can easily get at the back panel of each. Make sure that all power cables can reach a correctly grounded electrical outlet. Caution The openings in the monitor cabinet are for ventilation. Do not block or cover these openings.
- Page 7 To turn on the monitor: Press the power button on the front of the monitor. Turn on your computer. Power MENU button button Brightness/ button www.gateway.com EXIT button Contrast/ button...
-
Page 8: Adjusting Settings
Adjusting settings Power button. Turns the monitor on and off. Power indicator. Turns blue when the monitor is operating normally, then flashes when the monitor is in energy saving mode. MENU button. Enters the on-screen display (OSD) menu or selects an OSD menu option. Brightness/ button. -
Page 9: On-Screen Display Menu Options
On-screen display menu options Icon Description CONTRAST. Adjusts the level of white between the lightest and darkest portions of an image. BRIGHTNESS. Adjusts the amount of light in the darkest portion of the picture. H. POSITION. Controls the horizontal position of the display image. H. -
Page 10: Video Modes
Icon Description LANGUAGE. Changes the display language for the OSD. EXIT. Displays current settings and exits the OSD menu. EXIT DEGAUSS. Demagnetizes the screen. Video modes The monitor supports several video modes from 720 × 400 to 1280 × 1024. Recommended video mode is 800 ×... -
Page 11: Maintenance
Maintenance Warning When the monitor is turned off, a small amount of electrical current still flows through the monitor. To avoid electrical shock, always unplug all power cables and modem cables from the wall outlets before cleaning the system. Caution To keep the monitor in optimal working order: ■... -
Page 12: Troubleshooting
Troubleshooting No picture ■ Make sure that the monitor is turned on. ■ Make sure that the power cord is connected correctly to both the back of the monitor and the wall outlet. ■ Make sure that the video cable is connected securely to the back of your computer. ■... - Page 13 Picture has shadows or “ghosts” ■ Remove any extension cables or switchboxes. ■ Make sure that the video cable is connected securely to the back of your computer. ■ Make sure that the video cable is not damaged. ■ Check the end of the video cable for any pins that might be bent or pushed in. Color is not uniform Make sure that: ■...
-
Page 14: Specifications
Specifications Specifications are subject to change without obligation or notification. Synchronization range Resolution Dot rate Power supply Input signal Display analog input Weight Dimensions (W×H×D) Operating conditions Storage conditions Flat 17 inch diagonal (16.0 inches viewable), anti-reflective/anti-glare, 90° deflection, 0.25 mm dot pitch Horizontal frequency: 30-70 KHz Vertical frequency: 50-160 Hz Maximum: 1280 ×... - Page 15 www.gateway.com...
-
Page 16: Safety, Regulatory, And Legal Information
Gateway Safety, Regulatory, and Legal Information • Safety information • Regulatory statements • Notices... -
Page 17: Important Safety Information
Important safety information Your Gateway system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed. Warning Always follow these instructions to help guard against personal injury and damage to your Gateway system. - Page 18 Care during use ■ Do not walk on the power cord or allow anything to rest on it. ■ Do not spill anything on the system. The best way to avoid spills is to avoid eating and drinking near your system.
-
Page 19: Regulatory Compliance Statements
Regulatory compliance statements United States of America Federal Communications Commission (FCC) Unintentional emitter per FCC Part 15 This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 20: Epa Energy Star
Canada Industry Canada (IC) Unintentional emitter per ICES-003 This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté... - Page 21 Notices Copyright © 2004 Gateway, Inc. All Rights Reserved 14350 Myford Road Irvine, CA 92606 USA All Rights Reserved This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or in any form, without prior consent in writing from Gateway.
