Summary of Contents for Gateway VX755
-
Page 1: User Guide

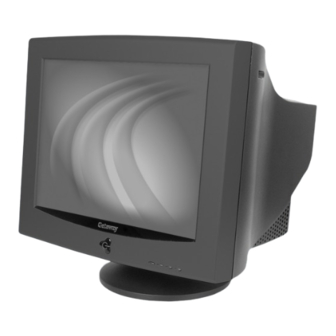

User Guide VX755 Monitor... -
Page 3: Table Of Contents
Contents VX755 Monitor ............. 1 Setting up the monitor . - Page 4 www.gateway.com...
-
Page 5: Vx755 Monitor
Gateway VX755 Monitor • Setting up the monitor • Adjusting the settings • Maintenance • Troubleshooting • Specifications... -
Page 6: Setting Up The Monitor
Slide the base toward the front of the monitor so all hooks are securely in place. A retaining latch built into the base clicks into place when the base is correctly attached. Carefully set the monitor upright and place it on a sturdy, level surface. www.gateway.com... - Page 7 Connect the power cable that came with the monitor to the AC power connector on the back of the monitor. Only use the power cable that came with the monitor. Plug the other end of the power cable into a correctly grounded electrical outlet. AC power connector www.gateway.com...
- Page 8 To turn on the monitor: Press the power button on the front of the monitor. Turn on your computer. Power MENU button button Brightness/ button www.gateway.com EXIT button Contrast/ button...
-
Page 9: Adjusting Settings
OSD. CONTRAST EXIT H: 64.1 KHz V: 60.0 MORE buttons to highlight an OSD menu option, then press the buttons to change an OSD menu option. www.gateway.com MENU buttons to highlight a button twice to save your EXIT... -
Page 10: On-Screen Display Menu Options
OSD ADJUSTMENT. Opens a submenu that contains menu options that let you change the position of the OSD menu on the screen and the length of time the OSD menu is visible. RESET. Resets the monitor settings to the factory default settings. www.gateway.com... -
Page 11: Video Modes
720 × 400 31.47 640 × 480 31.47 640 × 480 43.27 800 × 600 46.87 800 × 600 37.88 800 × 600 53.67 800 × 600 63.90 1024 × 768 48.36 1024 × 768 60.02 1024 × 768 68.67 www.gateway.com... -
Page 12: Maintenance
Keep the monitor out of direct sunlight. Keep the monitor away from any equipment that generates a magnetic field. Use a screen saver to avoid permanent image burn-in. For more information about screen savers, see the documentation that came with your computer. www.gateway.com... -
Page 13: Troubleshooting
The monitor is not positioned too close to another monitor, power transformer or adapter, electric fan, fluorescent light, metal shelf, or laser printer. If none of these suggestions solves the problem, try plugging the monitor into another outlet, preferably one on a different circuit. www.gateway.com... - Page 14 Some video modes used by the monitor produce images that cannot be adjusted all the way out to the bezel edge (the edge where the screen glass and monitor casing meet). This condition does not indicate that the monitor is defective. www.gateway.com...
-
Page 15: Specifications
Gross: 46.2 lbs (21.0 kg) 15.98 × 16.02 × 16.42 inches (406 × 407 × 417 mm) Temperature: 41°F to 104°F (5°C to 40°C) Humidity: 20% ~ 80% Temperature: -4°F to 140°F (-20°C to 60°C) Humidity: 10% ~ 90% www.gateway.com... - Page 16 www.gateway.com...
-
Page 17: Safety, Regulatory, And Legal Information
Gateway Safety, Regulatory, and Legal Information • Safety information • Regulatory statements • Notices... -
Page 18: Important Safety Information
Important safety information Your Gateway system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed. - Page 19 Do not expose the monitor to rain or use near water. If the monitor does get exposed to moisture, unplug it and allow it to dry for 24 hours. Call Gateway Technical Support for advice on whether the monitor is safe to turn back on.
-
Page 20: Regulatory Compliance Statements
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution Changes or modifications not expressly approved by Gateway could void the FCC compliance and negate your authority to operate the product. -
Page 21: Epa Energy Star
Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada. EPA ENERGY STAR As an ENERGY STAR STAR guidelines for energy efficiency when used with a computer equipped with a Display Power Management System. ENERGY STAR ® Partner, Gateway has determined that this product meets the ENERGY www.gateway.com... - Page 22 In the interest of continued product development, Gateway reserves the right to make improvements in this manual and the products it describes at any time, without notices or obligation.
- Page 24 MAN PROVIEW VX755 USR GDE R2 12/04...
