  • Page 1: User Guide

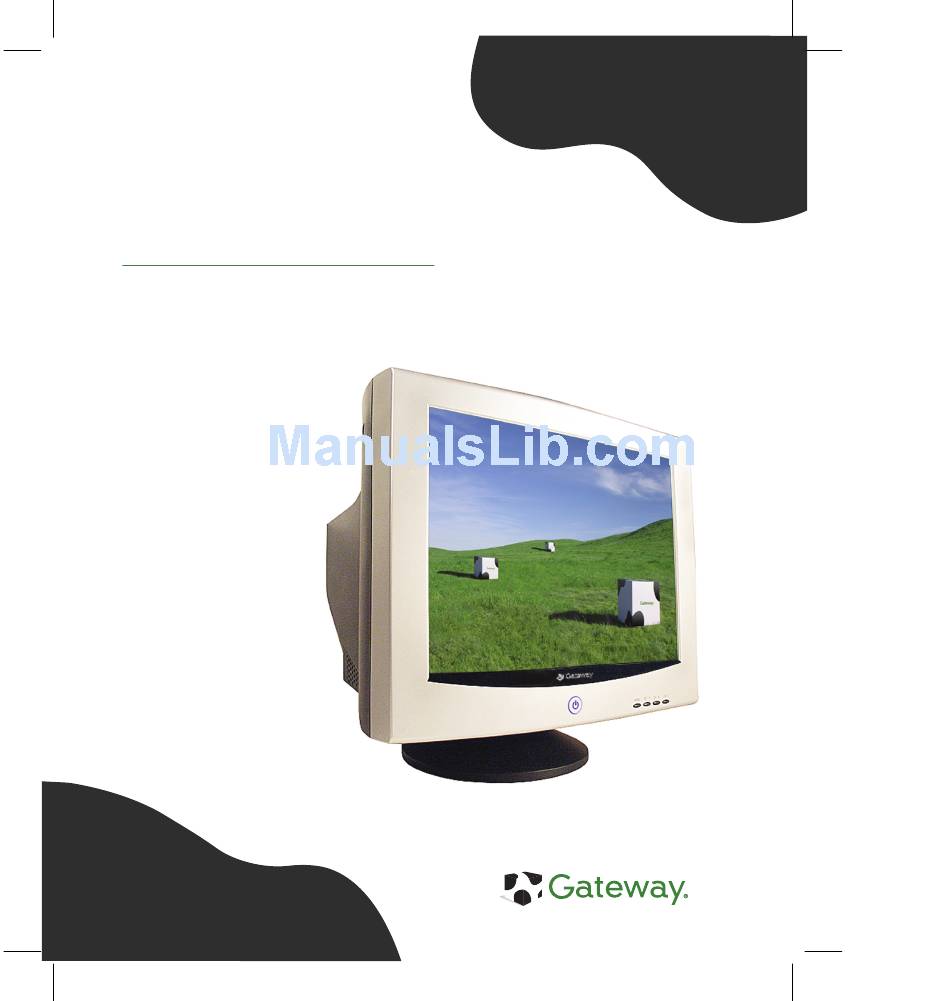

    Gateway VX760/VX765 Monitor User Guide...
  • Page 3: Table Of Contents

    Contents Gateway VX760/VX765 Monitor ........1 Setting up the monitor .
  • Page 4 8510842.book Page ii Wednesday, July 6, 2005 2:54 PM www.gateway.com...
  • Page 5: Gateway Vx760/Vx765 Monitor

    8510842.book Page 1 Wednesday, July 6, 2005 2:54 PM Gateway VX760/VX765 Monitor • Setting up • Adjusting settings • Maintaining • Troubleshooting • Specifications...
  • Page 6: Setting Up The Monitor

    8510842.book Page 2 Wednesday, July 6, 2005 2:54 PM Gateway VX760/VX765 Monitor Setting up the monitor Read all instructions before using the monitor and save them for later use. Follow all warnings and instructions marked on the product. To set up the monitor: Attach the base ■...
  • Page 7 Connect the power cable that came with the monitor to the AC power connector on the back of the monitor. Only use the power cable that came with the monitor. AC power connector Plug the other end of the power cable into a correctly grounded electrical outlet. www.gateway.com...
  • Page 8 8510842.book Page 4 Wednesday, July 6, 2005 2:54 PM Gateway VX760/VX765 Monitor To turn on the monitor: Press the power button on the front of the monitor. EXIT button MENU button Power button Brightness/ button Contrast/ button Turn on your computer.
  • Page 9: Adjusting Settings

    OSD menu option. Press the button to save changes. Press the buttons to highlight a EXIT different OSD menu option. - OR- If you have finished making all adjustments, press the button to save your settings EXIT and exit the OSD. www.gateway.com...
  • Page 10: On-Screen Display Menu Options

    8510842.book Page 6 Wednesday, July 6, 2005 2:54 PM Gateway VX760/VX765 Monitor On-screen display menu options Icon Description CONTRAST. Adjusts the level of white between the lightest and darkest portions of an image. BRIGHTNESS. Adjusts the amount of light in the darkest portion of the picture.
  • Page 11: Video Modes

    800 × 600 46.87 800 × 600 37.88 800 × 600 53.67 800 × 600 63.90 1024 × 768 48.36 1024 × 768 60.02 1024 × 768 68.67 1280 × 1024 60.30 - Horizontal frequency (KHz) - Vertical frequency (Hz) www.gateway.com...
  • Page 12: Maintenance

    8510842.book Page 8 Wednesday, July 6, 2005 2:54 PM Gateway VX760/VX765 Monitor Maintenance Warning When the monitor is turned off, a small amount of electrical current still flows through the monitor. To avoid electrical shock, always unplug all power cables and modem cables from the wall outlets before cleaning the system.
  • Page 13: Troubleshooting

    The monitor is not positioned too close to another monitor, power transformer or adapter, electric fan, fluorescent light, metal shelf, or laser printer. If none of these suggestions solves the problem, try plugging the monitor into another outlet, preferably one on a different circuit. www.gateway.com...
  • Page 14 8510842.book Page 10 Wednesday, July 6, 2005 2:54 PM Gateway VX760/VX765 Monitor Picture has shadows or “ghosts” Remove any extension cables or switchboxes. ■ Make sure that the video cable is connected securely to the back of your computer. ■...
  • Page 15: Specifications

    Dimensions (W×H×D) 15.98 × 16.02 × 16.42 inches (406 × 407 × 417 mm) Operating conditions Temperature: 41°F to 104°F (5°C to 40°C) Humidity: 20% ~ 80% Storage conditions Temperature: -4°F to 140°F (-20°C to 60°C) Humidity: 10% ~ 90% www.gateway.com...
  • Page 16 8510842.book Page 12 Wednesday, July 6, 2005 2:54 PM Gateway VX760/VX765 Monitor www.gateway.com...
  • Page 17: Safety, Regulatory, And Legal Information

    8510842.book Page 13 Wednesday, July 6, 2005 2:54 PM Safety, Regulatory, and Legal Information • Safety information • Regulatory statements • Notices...
  • Page 18: Important Safety Information

    Safety, Regulatory, and Legal Information Important safety information Your Gateway system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.
  • Page 19 Do not expose the monitor to rain or use near water. If the monitor does get exposed to moisture, unplug it ■ and allow it to dry for 24 hours. Call Gateway Technical Support for advice on whether the monitor is safe to turn back on.
  • Page 20: Regulatory Compliance Statements

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Gateway could Caution void the FCC compliance and negate your authority to operate the product.
  • Page 21: Epa Energy Star

    Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada. EPA ENERGY STAR ® As an ENERGY STAR Partner, Gateway has determined that this product meets the ENERGY STAR guidelines for energy efficiency when used with a computer equipped with a Display Power Management System. ENERGY STAR www.gateway.com...
  • Page 22: Environmental Information

    With your help, we can reduce the amount of natural resources needed to produce electrical and electronic equipment, minimize the use of landfills for the disposal of “end of life” products, and generally improve our quality of life by ensuring that potentially hazardous substances are not released into the environment and are disposed of properly. www.gateway.com...
  • Page 23 For the latest product updates, consult the Gateway Web site at www.gateway.com. In no event will Gateway be liable for direct, indirect, special, exemplary, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
  • Page 25 MAN VX760/765 USR GDE R0 6/05...
