TRICON
/E/E2/E3 Transmitter
®
Installation and Maintenance Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRICON E and is the answer not in the manual?

Questions and answers

Summary of Contents for Neptune TRICON E

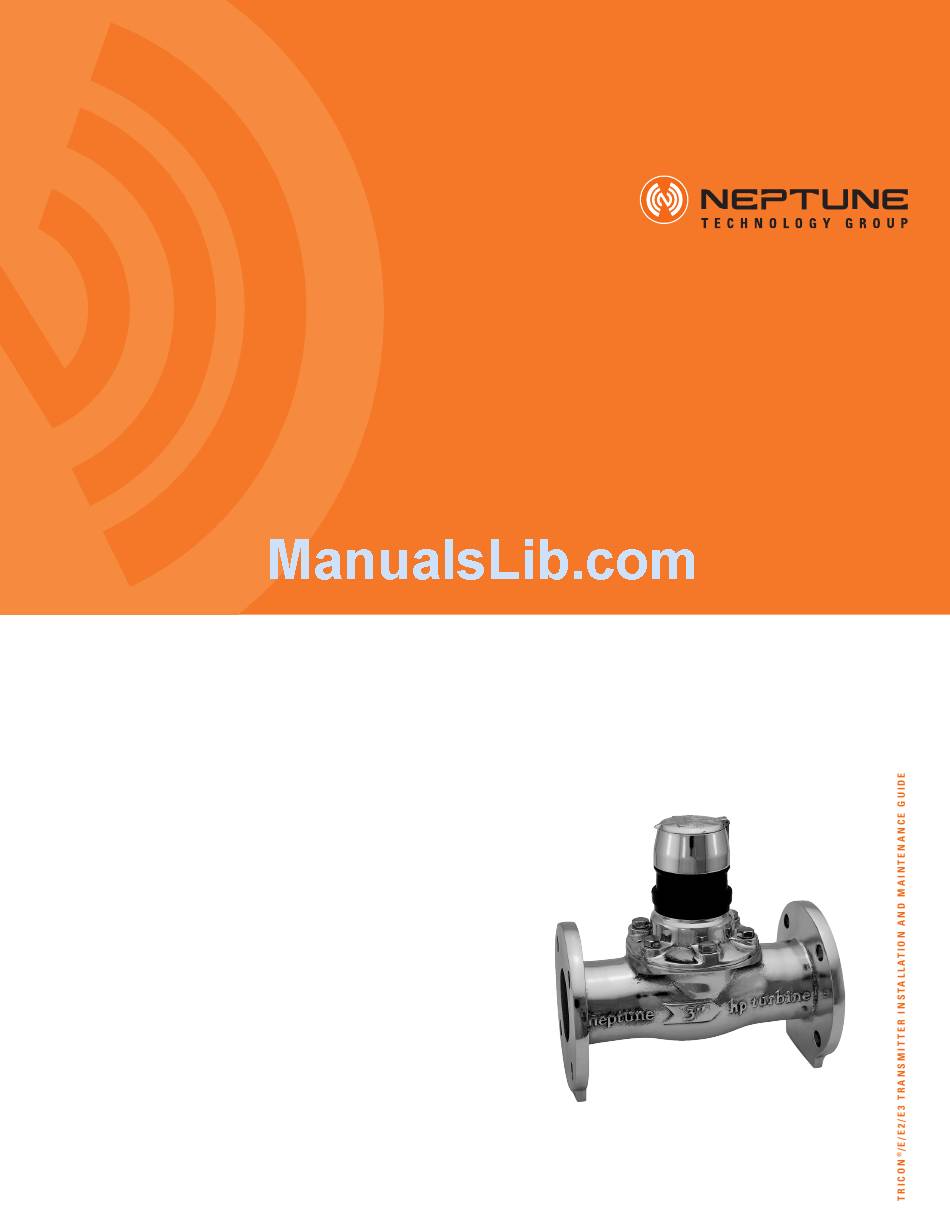

  • Page 1 TRICON /E/E2/E3 Transmitter ® Installation and Maintenance Guide...
  • Page 2 This manual is an unpublished work and contains the trade secrets and confidential information of Neptune Technology Group Inc., which are not to be divulged to third parties and may not be reproduced or transmitted in whole or part, in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Neptune Technology Group Inc.
  • Page 3: Table Of Contents

    O V E R V I E W Transmitter Styles ..........................1-1 Digital Pulse ..........................1-1 Analog 4-20mA ......................... 1-1 Usage ..............................1-1 Contacting Customer Support ......................1-2 I N S TA L L I N G T H E T R A N S M I T T E R Tools and Material ..........................
  • Page 4 F I G U R E TI T L E PA G E Elements of the Transmitter ....................... 2-2 Inserting Multi-Conductor Cable......................2-3 Creating a Hook in the Wire ......................2-3 Connecting the Conductors to the Terminal Screws ................. 2-3 TRICON/E/E2/E3 Wiring ........................
  • Page 5: Transmitter Styles

    The Digital Pulse model TRICON/E transmitters are produced in only two styles: Disc and Turbine, for use with ALL Neptune disc meters or ALL Neptune turbine meters, respectively. The Analog 4-20mA model TRICON/E transmitters, however, are manufactured specifically for the size and type of meter with which they are to be used.
  • Page 6: Tools And Material

    CHAPTER INSTALLING THE TRANSMITTER This chapter is designed to take you through the installation process for the TRICON transmitter. T O O L S A N D M AT E R I A L S The following equipment is required for the installation: medium, flat-head screwdriver wire stripper hammer...
  • Page 7: Installation

    For longer runs (1,000’ maximum) use #22 AWG shielded twisted pair cable for signal connections, and tie the shield to ground at the receiving device, not at the TRICON/E transmitter. When forced to cross other wiring, cross at right angles to minimize noise coupling between wiring. Use a dedicated power source, such as a separate circuit breaker or isolation transformer, for all instrumentation equipment to reduce the effects of electrical noise from other equipment on the line.
  • Page 8: Inserting Multi-Conductor Cable

    Figure 2.2 Inserting Multi-Conductor Cable Figure 2.2 Inserting Multi-Conductor Cable Figure 2.2 Inserting Multi-Conductor Cable Strip the outer covering of the cable back approximately 1 ⁄ ” from the inserted end. Separate the individual conductors and strip the insulation back approximately ⁄...
  • Page 9: Tricon/E/E2/E3 Wiring

    Figure 2.5 TRICON/E/E2/E3 Wiring Table 2.1 TRICON E/E2/E3 Wiring Codes TRICON/E TRICON/E2 & E3 TRICON/E, E2 PIN # DIGITAL PULSE MODEL DIGITAL PULSE MODEL & TRICON/E3 (PRIOR TO 1/96) (AFTER 1/96) 4-20MA MODELS No Connection High Resolution Output 4-20mA Source (+)
  • Page 10: Testing The Wires

    Testing the Wires After wiring the transmitter, double-check to ensure it is wired correctly. Apply power to the TRICON transmitter and check the output signals as follows: At No Flow – there should be no pulses out of the digital output terminal, and a 4mA direct current should be present in the 4-20mA loop.
  • Page 11: Mounting The Tricon Transmitter

    Refer to Figure 2.6 for assistance with the following steps. Figure 2.6 Mounting the TRICON Transmitter Twist the register approximately ⁄ turn counter-clockwise and remove it from the meter. Position the TRICON transmitter on the meter and twist it clockwise until it locks into place. Place the register mounting ring on top of the TRICON transmitter with the four rounded grooves facing upward.
  • Page 12: Environmental Conditions

    CHAPTER SPECIFICATIONS AND PERFORMANCE DATA This chapter will provide you with the electrical specifications and the performance data for the models of the TRICON transmitter. E N V I R O N M E N TA L C O N D I T I O N S Operating Temperature 32°...
  • Page 13: Performance Data

    Table 3.3 HF and UP/DN Models (over 0-70°C operating temperature ) PARAMETER DESCRIPTION MINIMUM TYPICAL MAXIMUM UNITS Power Supply Voltage 11.5 — 26.5 Power Supply Current — Low Digital Pulse Output Voltage — — High Digital Pulse Output Voltage — 26.5 Current @ Vol -1.0...
  • Page 14: T-8 Disc Meters

    Table 3.6 T-8 Disc Meters MAXIMUM MAXIMUM NUMBER OF PULSE OUTPUT FLOW RANGE METER MINIMUM FLOW FLOW RATE CONTINUOUS PULSES PER @ MAXIMUM OF 4-20MA SIZE (in) RATE (gpm) (gpm) FLOW RATE (gpm) GALLON FLOW RATE (Hz) OUTPUT (gpm) ⁄ ⁄...
  • Page 15: And 10" Hp Protectus Iii Turbine Elements Performance Specifications

    Table 3.9 Compound Meters Compound Meter Size and Type Turbine Element Disc Element 3”TRU/FLO 3” TT ⁄ ” T-10 4”TRU/FLO 4” TT ⁄ ” T-10 6”TRU/FLO 6” TT 1” T-10 2” HP TRU/FLO 2” HPT ⁄ ” T-10 4” PROTECTUS III 4”...
  • Page 16 CHAPTER MAINTENANCE If you find that your TRICON system is not operating as expected when installed, use the following guidelines to try to determine the source of the problem. T R O U B L E S H O O T I N G If the TRICON appears to be operating, but electronic flow indication does not agree with mechanical register indication, try the following: Verify that the TRICON and register match the meter size and type.
  • Page 17 ......2-5 illustrated ......2-6 E .........1-1 E2/E3 .........1-1 styles disc ........1-1 Neptune meter ......1-1 turbine ........1-1 operating E/E2/E3. See transmitter conditions .......3-1 electrical specifications .....3-1 humidity .........3-1 4-20mA ........3-1 temperature ......3-1 absolute limits .......3-2 operating power HF models ......3-2...
  • Page 18: Troubleshooting

    terminal cover hole ....2-2 performance illustrated ......2-2 HPT meters ......3-3 terminal screws ......2-3 T-8 disc meters .......3-3 illustrated ......2-3 temperature TT meters .......3-3 performance data storage ........2-1 T-10 disc meters .....3-2 tools ...........2-1 pre-installation ......2-1 transmitter pulse outputs assembly ........2-5 operating temperature ...3-1 illustrated ......2-6 specifications ......3-1...
  • Page 19 ..................................................................................................................................................................................................................................................................................................................................................................................................................................................TRICON/E/E2/E3 TRANSMITTER INSTALLATION AND MAINTENANCE GUIDE...
  • Page 20 11570 México, Distrito Federal Fax: (905) 858-0428 Tel: (525) 55203 5294 / (525) 55203 5708 neptunetg.com Fax: (525) 55203 6503 IM TRICON/E 07.14 © Copyright 2014, Neptune Technology Group Inc. Neptune is a registered trademark of Neptune Technology Group Inc.

This manual is also suitable for:

Tricon e3Tricon e2
