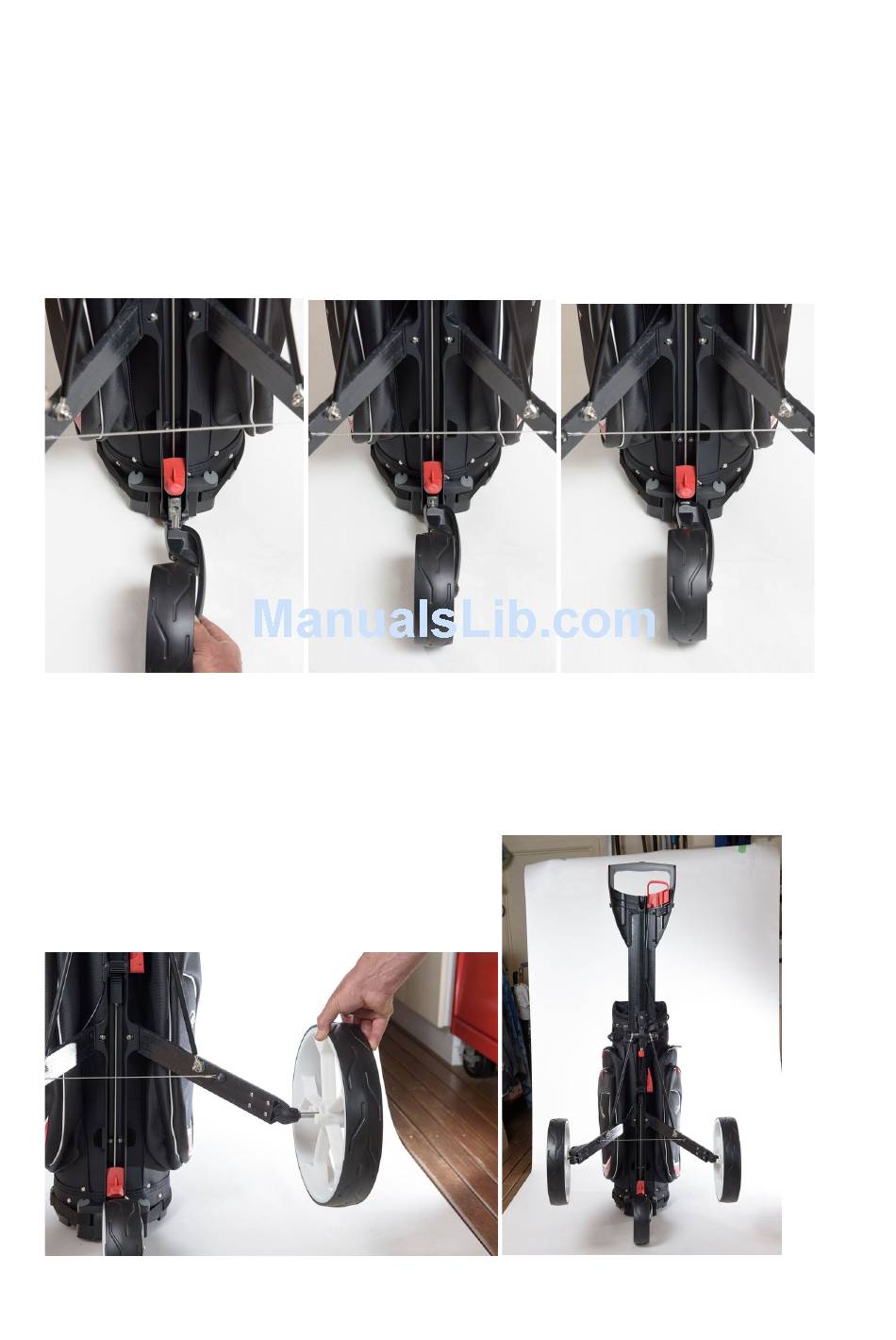

Step 11: Fitting the front Wheel.
While holding the buggy secure - Place the front wheel into the front wheel housing as per fig 17
below and push inwards as per fig 18 below until the front wheel is fully inserted into the front
wheel housing as per fig 19 below
Please Note – The front wheel is secured by magnets once fully installed.
Step 13: Fitting the Rear wheels.
While holding the buggy secure - Slide both rear wheels onto the axles until they fully click into place
as per figs 20 & 21 below. Arrows and text to be added
